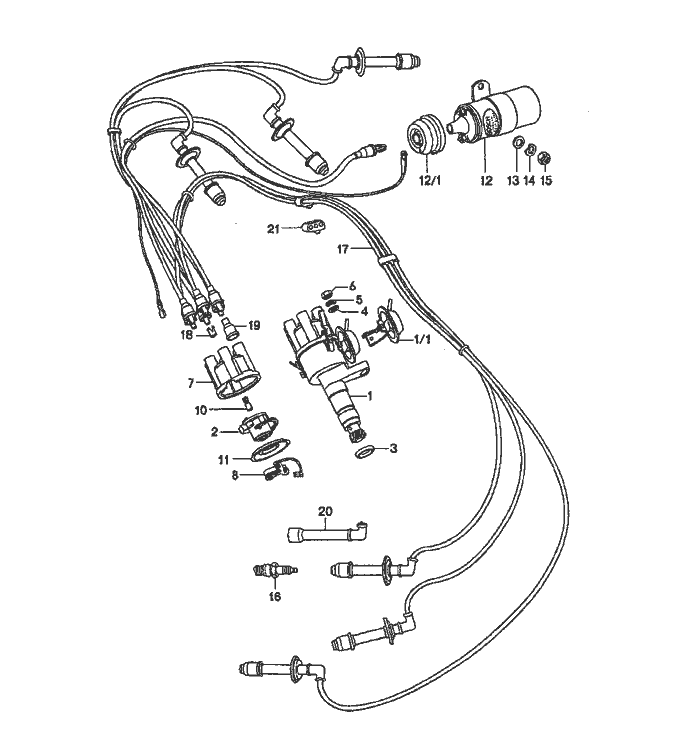

Porsche 911 Engine Electrics Parts

Click here to browse for Porsche 911 Parts from the main menu

Engine Electrics

PosPart NumberDescriptionRemarkQty.Model
  engine electrics
1 911 602 021 01distributor -bosch for 911/41/42/43/44/46/47 911/48/49/81/82/84/86 911/89/92/93/97/98  1
(1) 911 602 021 07distributor -bosch for 911/85/90/94/99  1
(1) 923 602 021 00distributor -bosch  1 912E
1/1 911 602 932 00vacuum unit -bosch  1 911/911S/ CARRERA 2.7
1/1 923 602 924 00vacuum unit -bosch  1 912E
2 911 602 928 00rotor -bosch for distributor 911.602.021.03 911.602.021.07  1
(2) 923 602 929 00rotor -bosch  1 912E
3 911 602 102 01sealing ring  1 911/911S/ CARRERA 2.7
(3) 111 905 261sealing ring  1 912E
4 900 025 007 02washer B 8,4  1 911/911S/ CARRERA 2.7
5 N 012 241 8spring washer 8 X 15  1 911/911S/ CARRERA 2.7
6 900 076 025 02hexagon nut M 8  1 911/911S/ CARRERA 2.7
PosPart NumberDescriptionRemarkQty.Model
-021 905 250support  1 912E
  for
  distributor
-021 905 267nut  1 912E
-N 012 241 11spring washer  1 912E
  8 X 15
-900 076 025 02hexagon nut  1 912E
  M 8
7 911 602 933 00distributor cap  1 911/911S/
     CARRERA 2.7
  -bosch -
(7) 113 905 207 Cdistributor cap  1 912E
  -bosch
8 911 602 936 00contact breaker point  1 911/911S/
     CARRERA 2.7
  -bosch -
(8) 616 602 226 02contact breaker point  1 912E
  -bosch
10 930 602 905 00wiper contact  1 911/911S/
  -bosch -  CARRERA 2.7
11 911 602 947 00dust cover  1 911/911S/
     CARRERA 2.7
  -bosch
-923 602 922 00condenser  1 912E
  single parts
  for
  distributor
  -MARELLI
  see group
  9/02/10
12 901 602 502 00ignition transformer  1 911/911S/
     CARRERA 2.7
(12) 043 905 115 Cignition coil  1 912E
12/1 911 602 801 00protection cap  1 911/911S/
     CARRERA 2.7
13 900 025 007 02washer  2 911/911S/
     CARRERA 2.7
  8,4
PosPart NumberDescriptionRemarkQty.Model
14 N 012 241 8spring washer   2 911/911S/
       CARRERA 2.7
  B 8 X 15
15 900 076 025 02hexagon nut   2 911/911S/
       CARRERA 2.7
  M 8
-022 905 121 Arestraining strap   1 912E
  for
  ignition coil
-923 602 102 00hose piece   1 912E
-N 010 215 13hexagon-head bolt   1 912E
  M 6 X 15
-900 075 014 02hexagon-head bolt   1 912E
  M 6 X 18
-N 012 226 5spring washer   2 912E
  B 6
(16) 999 170 017 90spark plug -74 6 911S/
  -bosch -     CARRERA 2.7
(16) 999 170 017 90spark plug 75 6
  -bosch
  for
  911/82/84/85/89/90/94/99
(16) 999 170 049 90spark plug -74 6 911
  -bosch -
(16) 999 170 156 90spark plug   4 912E
  -bosch
17
91160906100
set of ignition cables -74 1 911/911S/
    -74   CARRERA 2.7
(17) 911 609 010 07set of ignition cables Right 1
(17) 911 609 011 07set of ignition cables Left 1
-911 609 061 07ignition lead 76 1 911S
  distributor
  ignition transformer
-900 612 001 00ignition lead   * 911/911S/
    -75   CARRERA 2.7
18 911 609 510 00cable plug   8 911/911S/
    -74
PosPart NumberDescriptionRemarkQty.Model
(18) 911 609 510 00cable plug 751 911S/ CARRERA 2.7
-900 612 001 00ignition lead ignition coil distributor cylinder  * 912E
-111 905 427connector  1 912E
-036 035 281suppression connector  1 912E
-311 905 429 Aprotection cap  1 912E
19 999 659 001 40water protection cap  8 911/911S/ CARRERA 2.7
20 901 609 309 00screened connector -76 6 911/911S/ CARRERA 2.7
(20) 911 602 315 00spark plug connector 776 911S
-036 035 281suppression connector for cylinders 1 -4  4 912E
-113 035 255 Aspark plug suppressor cap  4 912E
-311 905 443water protection cap  4 912E
-111 905 449 Acap for spark plug connector  4 912E
21 901 609 591 00cable holder  3 911/911S/ CARRERA 2.7
-122 035 281suppression connector 757 911S/ CARRERA 2.7
