Porsche 911 Gasket Set Parts

Click here to browse for Porsche 911 Parts from the main menu

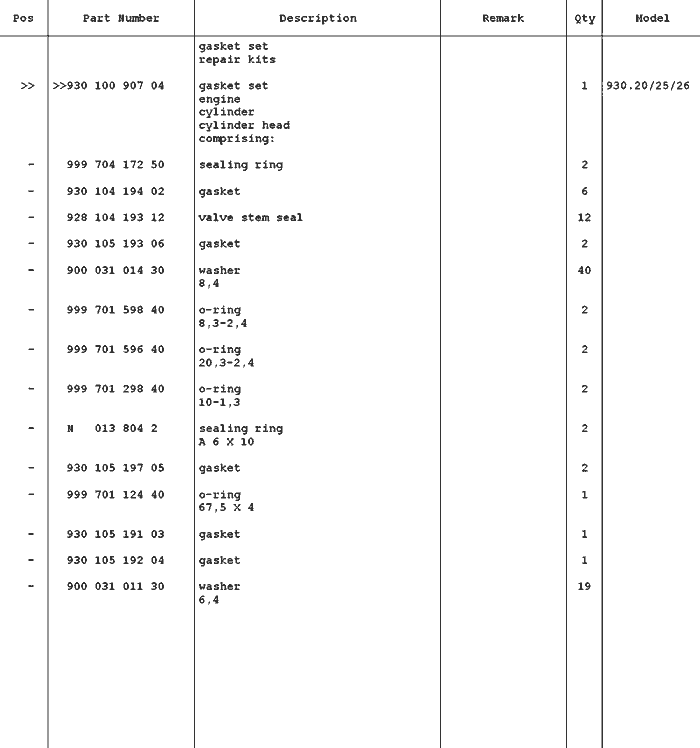

Gasket Set

PosPart NumberDescriptionRemarkQty.Model
  gasket set
  repair kits
>> 930 100 907 04gasket set  1 930.20/25/26
  engine
  cylinder
  cylinder head
  comprising:
-999 704 172 50sealing ring  2
-930 104 194 02gasket  6
-928 104 193 12valve stem seal  12
-930 105 193 06gasket  2
-900 031 014 30washer  40
  8,4
-999 701 598 40o-ring  2
  8,3-2,4
-999 701 596 40o-ring  2
  20,3-2,4
-999 701 298 40o-ring  2
  10-1,3
-N 013 804 2sealing ring  2
  A 6 X 10
-930 105 197 05gasket  2
-999 701 124 40o-ring  1
  67,5 X 4
-930 105 191 03gasket  1
-930 105 192 04gasket  1
-900 031 011 30washer  19
  6,4
-930 105 194 04gasket  2
-930 105 195 05gasket  2
-999 704 173 50sealing ring  1
-900 123 005 30sealing ring  7
  A 12 X 16
PosPart NumberDescriptionRemarkQty.Model
-999 707 112 40round seal  8
-930 110 197 14gasket  12
-999 701 423 40o-ring  6
  6 X 5
-900 123 050 30sealing ring  17
  A 8 X 11,5
-900 123 144 30sealing ring  1
  10 X 13,5
-999 701 395 50o-ring  1
  7-28
-999 701 210 40o-ring  1
  20-2,5
-911 111 191 01gasket  1
-930 111 192 06gasket  2
-930 111 193 03gasket  1
-911 111 188 02support washer  1
-911 111 189 03gasket  1
-900 123 033 20sealing ring  6
  A 10 X 13,5
-900 123 060 30sealing ring  1
  A 24 X 29
-900 123 008 30sealing ring  1
  A 14 X 20
-900 123 116 30sealing ring  3
  A 12 X 15,5
-999 701 135 50o-ring  1
  15 X 2,5
-900 123 006 30sealing ring  2
  A 14 X 18
-930 111 191 12gasket  6
-900 123 007 70sealing ring  2
  A 14 X 18
-999 701 468 40round seal  2
PosPart NumberDescriptionRemarkQty.Model
-911 113 146 00gasket  1
-999 701 446 40o-ring  6
-900 123 007 30sealing ring  1
-900 123 005 00sealing ring  8
  A 12 X 16
-900 123 115 30sealing ring  4
  A 8 X 11,5
-999 701 690 40round seal  2
  12 X 1,78
>> 930 100 908 02gasket set  1 930.66/68
  engine
  cylinder
  cylinder head
  comprising:
-999 704 172 50sealing ring  6
-930 104 194 02gasket  6
-928 104 193 12valve stem seal  12
-930 105 193 06gasket  2
-999 701 598 40o-ring  2
  8,3 -2,4
-999 701 596 40o-ring  2
  20,3 -2,4
-999 701 298 40o-ring  2
  10-1,3
-N 013 804 2sealing ring  2
  A 6 -10
-930 105 197 05gasket  2
-930 105 197 05gasket  1
-930 105 191 03gasket  1
-930 105 192 04gasket  1
-900 031 011 30washer  19
  6,4
-930 105 194 04gasket  2
PosPart NumberDescriptionRemarkQty.Model
-930 105 195 05gasket  2
-900 031 014 30washer  42
  8,4
-999 704 173 50sealing ring  1
-900 123 116 30sealing ring  7
  A 12 X 16
-999 707 112 40round seal  8
-999 707 289 40round seal  1
  47 X 2
-900 123 007 30sealing ring  2
  A 14 X 18
-999 113 246 40radial sealing ring  1
-900 123 055 30sealing ring  1
  A 12 X 17
-930 107 116 01gasket  1
-900 123 018 30sealing ring  2
  A 16 X 20
-930 107 123 01gasket  1
-900 123 033 20sealing ring  27
  A 10 X 13,5
-930 110 197 10gasket  12
-930 110 149 00gasket  2
-930 110 122 00sealing ring  1
-900 123 101 30sealing ring  2
  A 12 X 18
-900 123 144 30sealing ring  1
  A 10 X 13,5
-930 110 394 00gasket  1
-900 123 115 30sealing ring  20
  A 8 X 11,5
-999 701 395 50o-ring  1
  7-2
PosPart NumberDescriptionRemarkQty.Model
-930 111 192 06gasket  2
-999 701 468 40round seal  3
-930 110 230 00sealing ring  1
-930 110 379 00sealing ring  1
-930 111 160 01gasket  2
-930 111 162 01gasket  2
-911 111 189 03gasket  1
-930 111 191 10gasket  6
-930 111 193 03gasket  1
-930 123 191 05sealing ring  2
-999 701 473 40round seal  1
-930 123 192 04gasket  1
-930 123 194 06gasket  2
-999 701 469 40round seal  3
-999 701 477 40round seal  1
-911 113 179 02gasket  1
-911 113 190 01gasket  6
-900 123 106 30sealing ring  1
-900 123 116 30sealing ring  15
-900 123 060 30sealing ring  2
-930 123 134 04sealing ring  1
-999 113 464 40shaft sealing ring  1
-900 123 005 00sealing ring  8
  A 12 X 16
-930 111 156 01support washer  1
-930 123 132 02support washer  1
PosPart NumberDescriptionRemarkQty.Model
>> 930 100 901 04gasket set  1
  engine
  crankcase
  comprising:
-999 704 172 50sealing ring  3
-999 701 006 40o-ring  26
-999 113 215 40sealing ring  1
  90 X 110 X 12
-930 101 391 01gasket  2
-900 123 118 30sealing ring  1
  A 22 X 27
-999 113 049 50radial sealing ring  1
  30 X 50 X 10
-999 707 285 40o-ring  1
  51 X 4,5
-900 123 044 30sealing ring  1
  A 18 X 22
-900 123 066 30sealing ring  8
  A 10 X 16
-900 031 011 30washer  3
  6,4
-900 123 005 00sealing ring  4
  A 12 X 16
-900 031 014 30washer  24
  8,4
-930 105 198 01gasket  1
-999 704 173 50sealing ring  1
-900 123 011 30sealing ring  1
  A 22 X 27
-999 701 053 50sealing ring  1
  39,2 X 3
-900 123 106 30sealing ring  2
  A 18 X 24
-930 107 791 02gasket  1
PosPart NumberDescriptionRemarkQty.Model
-911 602 102 01sealing ring  1
-900 123 009 20sealing ring  1
  A 18 X 24
-900 123 007 30sealing ring  2
  A 14 X 18
-901 102 191 00sealing ring  1
-999 701 658 40round seal  1
  33,3 X 2,4
>> 930 105 902 00gasket set  1
  for
  valve cover
  comprising:
-930 105 194 04gasket  2
-930 105 195 05gasket  2
-900 031 014 30washer  34
  8,4
-900 084 004 02hexagon nut  34
  M 8
>> 930 107 040 01repair kit  1
  oil tube
  divided
  comprising:
  oil tube  1
  oil tube  1
-900 041 013 01circlip  1
-999 707 112 40round seal  2
-999 707 113 40round seal  2
>> 964 101 901 00set of crankshaft bearings  1
  comprising:
-930 101 131 15bearing shell  2
  I
-930 101 132 15bearing shell  12
  II-VII
-964 101 138 01bearing sleeve  1
  VIII
PosPart NumberDescriptionRemarkQty.Model
>> 964 101 901 51set of crankshaft bearings oversize inner  1
  0,25 MM comprising:
-930 101 131 51bearing shell I  2
-930 101 132 51bearing shell II-VII  12
-964 101 138 54bearing sleeve VIII  1
>> 964 101 901 56set of crankshaft bearings oversize  1
  inner 0,50 MM comprising:
-930 101 131 56bearing shell I  2
-930 101 132 56bearing shell II-VII  12
-964 101 138 55bearing sleeve VIII  1
>> 964 101 901 61set of crankshaft bearings oversize  1
  outer
  0,25 MM comprising:
-930 101 131 61bearing shell I  2
-930 101 132 61bearing shell II-VII  12
-964 101 138 65bearing sleeve VIII  1
>> 964 101 901 71set of crankshaft bearings oversize  1
  inner 0,25 MM oversize
  outer 0,25 MM comprising:
PosPart NumberDescriptionRemarkQty.Model
-930 101 131 71bearing shell  2
  I
-930 101 132 71bearing shell  12
  II-VII
-964 101 138 66bearing sleeve  1
  VIII
>> 964 101 901 76set of crankshaft bearings  1
  oversize
  inner
  0,50 MM
  oversize
  outer
  0,25 MM
  comprising:
-930 101 131 76bearing shell  2
  I
-930 101 132 76bearing shell  12
  II-VII
-964 101 138 67bearing sleeve  1
  VIII
  piston rings
  -mahle
>> 930 103 986 00set of piston rings  1 930.20/25/26
>> 930 103 968 00set of piston rings  1 930.66/68
>> 911 100 956 05maintenance parts -88 1 930.25
  for
  periodic maintenance
  1 set
  comprising:
-930 107 764 01oil filter  1
-
92811025306
fuel filter  1
-930 105 194 04gasket  2
-930 105 195 05gasket  2
-900 084 004 02hexagon nut  34
-900 031 014 30washer  34
-930 110 393 00filter element  1
PosPart NumberDescriptionRemarkQty.Model
-900 123 118 30sealing ring  2
-999 170 156 90spark plug  6
>> 911 100 956 07maintenance parts 89 1 930.25
  for
  periodic maintenance
  1 set
  comprising:
-930 107 764 01oil filter  1
-930 105 194 04gasket  2
-930 105 195 05gasket  2
-900 084 004 02hexagon nut  34
-900 031 014 30washer  34
-930 110 393 00filter element  1
-900 123 118 30sealing ring  2
-999 170 156 90spark plug  6
>> 911 100 988 01maintenance set -88 1 930.66/68
  for
  periodic maintenance
  1 set
  comprising:
-930 107 764 01oil filter  1
-928 110 147 05fuel filter  1
-930 105 194 04gasket  2
-930 105 195 05gasket  2
-900 031 014 30washer  34
-900 084 004 02hexagon nut  34
-930 110 185 02air cleaner cartridge  1
-930 113 401 00filter cartridge  1
-900 123 118 30sealing ring  2
-999 170 128 90spark plug  6
-900 123 055 30sealing ring  1
PosPart NumberDescriptionRemarkQty.Model
>> 911 100 988 02maintenance parts for periodic maintenance 1 set comprising: 89 1 930.66/68
-930 107 764 01oil filter  1
-930 105 194 04gasket  2
-930 105 195 05gasket  2
-900 084 004 02hexagon nut  34
-900 031 014 30washer  34
-900 123 118 30sealing ring  2
-900 123 055 30sealing ring  1
-999 170 128 90spark plug  6
>> 928 603 904 00set of fastening parts for pulley generator comprising: nut M 17 X 1,5 SW 24 washer thrust washer woodruff key pipe  X 1 1 1 1 1
