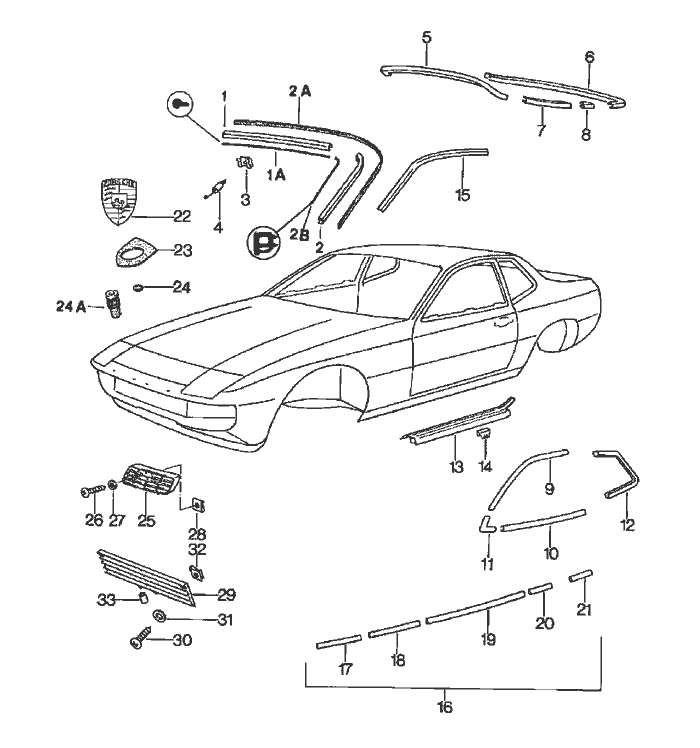

Porsche 924 decorative fittings

PosPart NumberDescription
Qty. Needed
Model/Option Info
1477853343A moulding upper
1
924/TURBO
f >>92cn4 02197
((J))
924
f >>92cn4 50831
924
f >>93cn1 00305
((J))
TURBO
f >>93cn1 50331
TURBO
194455904300 moulding upper
1
1A94455904300 moulding
(UP TO YEAR 82)
1
...f 92cn4 02198>>
((J))
924
...f 92cn4 50832>>
924
...f 93cn1 00306>>
((J))
TURBO
...f 93cn1 50332>>
TURBO
2477853019 moulding
(DRIVER SIDE)
1
(2)477853020 moulding
(PASSENGER SIDE)
1
...f >>92cn4 02197
((J))
924
...f >>92cn4 50831
924
...f >>93cn1 00305
((J))
TURBO
...f >>93cn1 50331
TURBO
294455904500 moulding
(DRIVER SIDE)
1
(2)94455904600 moulding
(PASSENGER SIDE)
1
...f 92cn4 02198>>
((J))
924
...f 92cn4 50832>>
924
...f 93cn1 00306>>
((J))
TURBO
...f 93cn1 50332>>
TURBO
3477853659B clamp
16
3477853659C clamp
16
4431805121A bolt
16
5477853313 trim frame upper
(REAR)
1
924
(5)477853313A trim frame upper
(REAR)
1
TURBO
(5)477853313A trim frame
(REAR)
1
924
...upper
M471
YEARDESCRIPTION
1976-1979EQUIPMENT GROUP 1, SPORTING 924 - USA, CANADA, JAPAN
1980-1985EQUIPMENT GROUP 1, SPORTING 924: TURBO CHASSIS (INTERNALLY VENTED BRAKE DISCS, ANTI-ROLL BARS, SHOCK ABSORBERS (KONI), CAST SPOKED WHEELS - 5 HOLES 5 1/2 J X 15) THREE-SPOKE-STEERING WHEEL (LEATHER), REAR SPOILER TURBO: USA, CANADA, JAPAN -80 INTERNALLY VENTED BRAKE DISCS, ANTI-ROLL BARS, SHOCK ABSORBERS (KONI), FORGED WHEELS - 5 HOLES 6 J X 16

6477853311 trim frame lower
(REAR)
1
924
7477853315 trim frame
(DRIVER SIDE)
1
924
(7)477853316 trim frame rear window
(PASSENGER SIDE)
1
924
8477853367 sleeve trim frame
4
924
9477853373B moulding
(DRIVER SIDE)
1
(9)477853374B moulding door
(PASSENGER SIDE)
1
10PCG853371B moulding
(DRIVER SIDE)
1
(10)477853372B moulding door
(PASSENGER SIDE)
1
11477853375A moulding
2
12477853365A trim frame
(DRIVER SIDE)
1
(12)477853366A trim frame
(PASSENGER SIDE)
1
13477853657A scuff plate
(DRIVER SIDE)
1
(13)477853658A scuff plate
(PASSENGER SIDE)
1
14477853655 clamp
10
15477853705 roof moulding
(DRIVER SIDE)
1
(15)477853706 roof moulding
(PASSENGER SIDE)
1
-94455915902 plastic foam strip roof moulding
2
16477853995 set of moldings moulding with adhesive tape
1
17477853981 side guard 285 mm
(FRONT, DRIVER SIDE)
1
(17)477853982 side guard 285 mm
(FRONT, PASSENGER SIDE)
1
18477853983 side guard 395 mm
(FRONT, DRIVER SIDE)
1
(18)477853984 side guard 395 mm
(FRONT, PASSENGER SIDE)
1
19477853985 side guard 1123 mm
(DRIVER SIDE)
1
(19)477853986 side guard 1123 mm
(PASSENGER SIDE)
1
20477853987 side guard 285 mm
(REAR, DRIVER SIDE)
1
(20)477853988 side guard 285 mm
(REAR, PASSENGER SIDE)
1
21477853989 side guard 440 mm
(REAR, DRIVER SIDE)
1
(21)477853990 side guard 440 mm
(REAR, PASSENGER SIDE)
1
2290155921020 lid emblem
1
2390155921520 desk pad
1
2499959142303 tapping nut
2
...f >>92cn4 05989
((J))
924
...f >>92cn4 52257
924
...f >>93cn1 00747
((J))
TURBO
...f >>93cn1 50714
TURBO
24A99970217550 grommet
2
24A99970217550 grommet
2
...f 92cn4 52258>>
924
...f 93cn1 50715>>
TURBO
25477853381 ventilation grille
4
TURBO
26N0139539 tapping screw
4
TURBO
2790002500102 washer
4
TURBO
28N0154281 speed nut
4
TURBO
(29)94455913500 radiator grille
1
30...tapping screw b 3,5 x 25
2
3190015102801 washer 4,3
2
32N0154381 speed nut b 3,5 x 16,5
2
33477853661 grommet
2
