Porsche 928 Fuel System Parts

Click here to browse for Porsche 928 Parts from the main menu

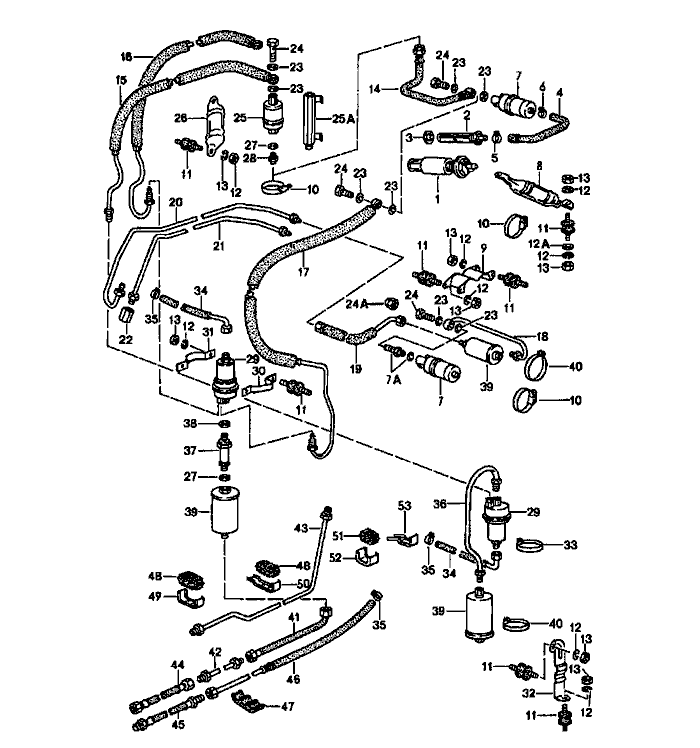

Fuel System

PosPart NumberDescriptionRemarkQty.Model
  fuel system
1 928 608 013 00in-tank fuel pump -79 1 (USA)(CDN)
  F 92891 00334>>
  F 92892 00014>>
  F 92892 09528>>
1 928 608 013 00in-tank fuel pump 801 (J)
(2) 928 201 081 03fuel strainer  1
  M 36 X 1,5
  F >>92881 01287
  F >>92882 00053
  F >>92882 09527
2 928 201 081 04fuel filter  1
  M 37 X 1,5
  deleted
  with
  in-tank fuel pump
  F 92881 01288>>
  F 92882 00054>>
  F 92882 09528>>
3 928 201 187 02sealing ring  1
(4) 928 356 550 04fuel hose -79 1 (USA)(CDN)
  only together with   (J) (AUS)
  in-tank fuel pump
4 928 356 550 05fuel hose  1
5 999 512 346 00hose clamp  1
  S 20/9
6 999 512 554 00hose clamp  1
  S 18/9
7 A 911 608 102 00fuel pump -79 1
7 911 608 102 02fuel pump -79 1
(7) 928 608 104 01fuel pump 801
7A 893 906 093retaining valve  1
8 928 608 125 00support -79 1
9 928 356 151 00support 801
10 999 512 394 00hose clamp  1
11 944 610 115 00bonded rubber mounting  6
PosPart NumberDescriptionRemarkQty.Model
12 N 012 006 4lock ring  12
  B 6
12A N 011 666 7washer  4
13 900 076 010 02hexagon nut  12
14 928 356 021 01fuel hose  1
  F >>92881 01259
  F >>92892 00013
  F >>92892 09527
16 928 356 019 10fuel line  1
  F >>92892 00013
  F >>92892 09527
17 928 356 019 00fuel line -79 1
(18) 928 356 063 10fuel line 801
19 928 356 053 01fuel line 801
21 928 356 057 00fuel line 801
22 477 209 169connecting piece 801
23 900 123 005 20sealing ring  4
24 900 175 020 02banjo bolt -79 1
24A N 011 069 1cap nut 801
  M 12 X 1,5
25 930 608 113 00fuel pump  1
  2
  F >>92881 00375
  F >>92892 00013
  F >>92892 09527
25A 928 356 617 00intermediate piece -79 1
26 911 608 105 00support -79 1
27 N 013 849 2sealing ring -79 2
28 N 020 702 1screw socket -79 1
(29) 928 110 197 05fuel accumulator  1
  F >>92882 00053
  F >>92882 09521
PosPart NumberDescriptionRemarkQty.Model
(29) 928 110 197 05fuel accumulator  1
  F 92882 00054>>
  F 92882 09521>>
  F >>92892 01042
  F >>92892 09557
(29) 928 110 197 07fuel accumulator -79 1
  F 92892 01043>>
  F 92892 09558>>
30 928 356 621 00clamping bow -79 1
  front
31 928 356 623 00clamping bow -79 1
  rear
32 928 356 639 00support 801
33 999 512 288 02clamp -79 1
(33) 999 512 199 02clamp  1
34 928 356 032 03fuel leakage line  1
  F >>92891 01296
  F >>92892 01042
  F >>92892 09557
35 N 023 569 2hose clamp  2
  S 16/9
37 928 356 619 01connecting piece -79 1
  F 92881 01260>>
38 900 123 018 30sealing ring -79 1
(39) 928 110 147 09fuel filter -79 1
  F 92881 01260>>
  F 92882 00054>>
  F 92882 09522>>
(39)
92811025306
fuel filter 801
40 999 512 276 02clamp  2
41 928 356 037 00fuel hose -79 1
-999 511 121 40clip -79 1
-900 143 077 02tapping screw -79 1
  4,2 X 32
PosPart NumberDescriptionRemarkQty.Model
42 928 356 029 00fuel line  1
  fuel distributor
  F >>92881 01259
  F >>92882 00053
(42) 928 356 029 01fuel line -79 1
  fuel distributor
  F 92881 01260>>
  F 92881 00054>>
43 928 356 029 03fuel line 801
  fuel distributor
44 928 356 039 00fuel hose  1
  fuel distributor
  F >>92A08 00878
  F >>92A08 20538
  F >>92A08 11105
(44) 928 356 079 00fuel hose  1
  F 92A08 00879>>
  F 92A08 20539>>
(45) 928 356 041 00fuel hose -78 1
  return line
(45) 928 356 041 02fuel hose -79 1
45 928 356 041 03fuel hose 791
(45) 928 356 081 00fuel hose  1
  F 92A08 00879>>
  F 92A08 20539>>
46 928 356 031 01fuel line  1
  return line
  fuel tank
47 928 356 543 02line clamp -79 9
48 928 356 521 00rubber mounting 805
49 928 356 523 00supporting bow 804
50 928 356 524 00supporting bow 801
51 928 356 525 00rubber mounting 808
52 928 356 527 00supporting bow 807
53 928 356 647 00supporting bow 801
