Porsche 928 Rear Axle Parts

Click here to browse for Porsche 928 Parts from the main menu

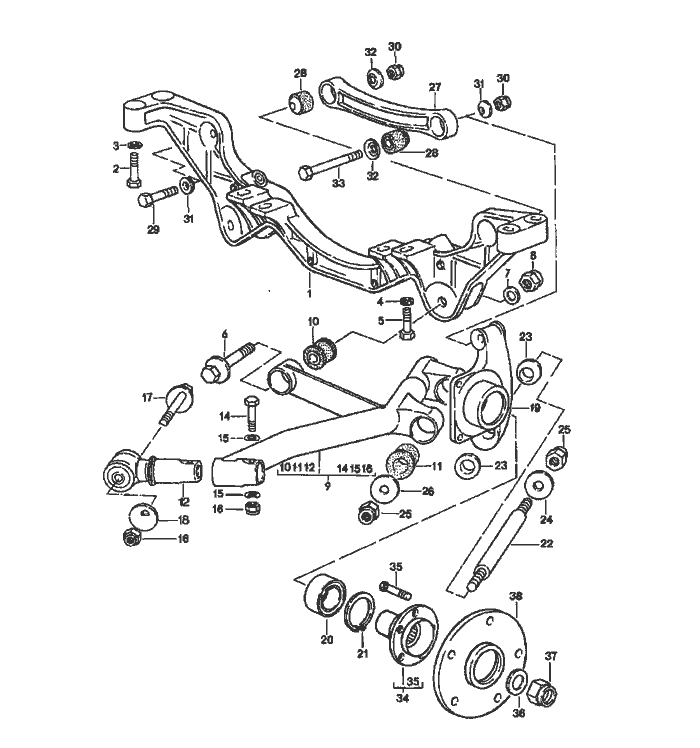

Rear Axle

PosPart NumberDescriptionRemarkQty.Model
  rear axle
1 A 928 331 131 17rear axle cross member -79 1
(1) 928 331 131 17rear axle cross member -79 1
(1) A 928 331 131 13rear axle cross member  1 928
  only together with
  G.28.03
(1) A 928 331 131 17rear axle cross member 801
  only together with
  G.28.03
(1) 928 331 131 17rear axle cross member 801
  only together with
  G.28.03
(1) A 928 331 131 13rear axle cross member  1 M 249
(1) A 928 331 131 17rear axle cross member  1 M 249
(1) 928 331 131 17rear axle cross member  1 M 249
(1) A 928 331 131 14rear axle cross member 801
  only together with
  G.28.05
(1) A 928 331 131 18rear axle cross member 801
  only together with
  G.28.05
(1) 928 331 131 18rear axle cross member 801
  only together with
  G.28.05
2 N 010 473 6hexagon-head bolt  4
  M 10 X 75
-928 331 133 00washer  X
3 900 223 011 02washer  6
4 900 027 016 02lock ring  2
  B 10
5 N 010 445 3hexagon-head bolt  2
  M 10 X 45
6 928 331 075 04eccentric screw  2
7 928 331 581 00washer  2
PosPart NumberDescriptionRemarkQty.Model
8 900 910 094 02lock nut   2
9 A 928 331 043 03control arm Left-79 1
  lower
9 928 331 043 06control arm Left801
  lower
(9) A 928 331 044 03control arm Right-79 1
  lower
(9) 928 331 044 06control arm Right801
  lower
10 928 331 588 10rubber mounting   2
11 928 331 588 13rubber mounting   4
12 928 331 085 00rocker bar   2
14 N 010 183 3hexagon-head bolt   2
  M 12 X 1,5 X 75
15 900 028 014 02spring washer   4
16 N 022 141 4lock nut   4
17 928 331 659 04eccentric screw   2
18 928 331 523 12eccentric washer   2
19 A 928 331 219 07wheel carrier Left 1
  F >>92CS8 20792
19 928 331 219 07wheel carrier Left 1
  F >>92CS8 20792
(19) 928 331 219 03wheel carrier Left 1
  F 92CS8 20793>>
(19) A 928 331 220 07wheel carrier Right 1
  F >>92CS8 20792
(19) 928 331 220 07wheel carrier Right 1
  F >>92CS8 20792
(19) 928 331 220 03wheel carrier Right 1
  F 92CS8 20793>>
20 A 928 331 583 00angular-contact bearing   2
(20) 999 053 050 00angular-contact bearing   2
PosPart NumberDescriptionRemarkQty.Model
21 900 042 030 02circlip  2
22 928 331 641 01bearing pin  2
23 928 331 655 06cone washer  4
24 928 331 647 02washer  2
25 900 910 094 02lock nut  4
26 928 331 647 00washer  4
27 928 331 101 02control arm  2
  upper
28 928 331 089 02link bearing  4
  upper
29 900 074 065 02hexagon-head bolt  2
  M 10 X 70
30 900 910 031 09lock nut  4
31 928 331 575 01cone washer  4
32 928 331 649 02cone washer  2
33 N 010 482 3hexagon-head bolt  2
  M 10 X 105
34 A 928 331 065 01wheel hub  2
(34) 928 331 065 07wheel hub  2
35 928 341 671 02wheel bolt  10
(35) 901 331 671 01wheel bolt  X
  widening of track
36 928 331 591 02washer  2
37 900 910 093 02lock nut  2
38 477 501 701spacer tube  X
