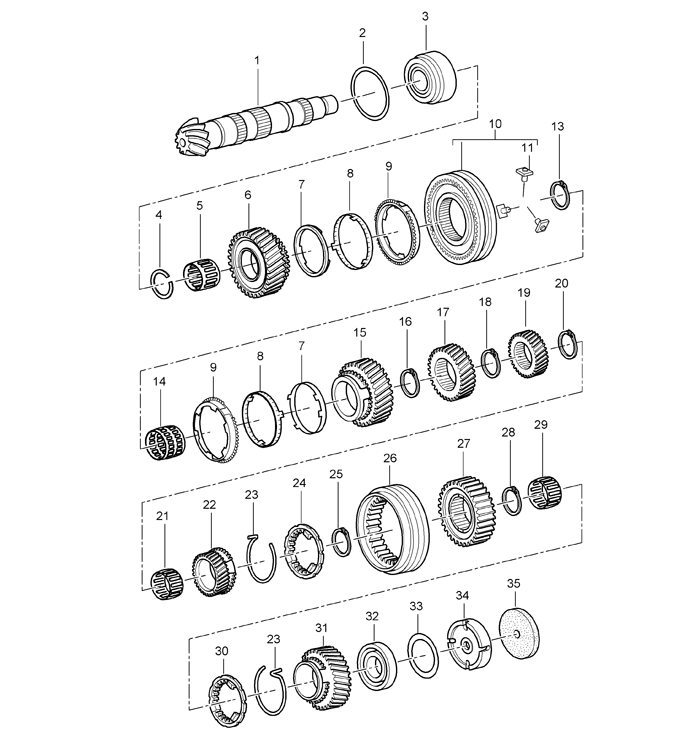

| Pos | Part Number | Description | Qty. Needed | Price |
| 1 | | output shaft | 1 | - | | 2 | 012311391 | adjusting shim 0,4 | X | $6.92 | | (2) | 012311391A | adjusting shim 0,45 | X | $6.92 | | (2) | 012311391B | adjusting shim 0,5 | X | $6.92 | | (2) | 012311391C | adjusting shim 0,55 | X | $6.92 | | (2) | 012311391D | adjusting shim 0,6 | X | $6.92 | | (2) | 012311391E | adjusting shim 0,65 | X | $6.92 | | (2) | 012311391F | adjusting shim 0,7 | X | $6.92 | | (2) | 012311391G | adjusting shim 0,75 | X | $6.92 | | 3 | 012311220A | taper roller bearing 48,6 x 88 x 21,5 | 1 | $110.74 | | 4 | N90860001 | circlip a 48,5 x 2,00 | X | $1.88 | | (4) | N90860007 | circlip a 48,5 x 2,03 | X | $3.11 | | (4) | N90860008 | circlip a 48,5 x 2,09 | X | $3.11 | | (4) | N90860009 | circlip a 48,5 x 2,12 | X | $3.11 | | (4) | N90860010 | circlip 48,5 x 2,15 | X | $3.69 | | 5 | 01X311325A | needle cage 1st gear 48,5 x 52,5 x 26,4 | 1 | $24.70 | | 6 | 012311250H | shifting gear 1st gear z = 35 : 10 | 1 | $381.46 | | 7 | 01X311277G | inner ring 1st gear | 1 | $120.30 | | (7) | 0B1311277 | inner ring 2nd gear | 1 | $58.91 | | 8 | 01X311259G | intermediate ring 1st/2nd gear | 2 | $77.11 | | 9 | 01X311247P | synchroniser ring 1st/2nd gear | 2 | - | | 10 | 01X311239B | synchronising hub with operating sleeve 1st/2nd gear | 1 | - | | 11 | 01X311314B | pressure piece | 3 | $24.35 | | 13 | N90294701 | circlip 47 x 1,9 | X | $7.22 | | (13) | N90294702 | circlip 47 x 1,93 | X | $7.22 | | (13) | N90294703 | circlip 47 x 1,96 | X | $7.22 | | (13) | N90294704 | circlip 47 x 1,99 | X | $7.22 | | (13) | N90294705 | circlip 47 x 2,02 | X | $8.29 | | 14 | 012311229K | needle cage 2nd gear 47 x 52 x 26,6 | 1 | $23.67 | | 15 | 012311260L | shifting gear 2nd gear z = 36 : 17 | 1 | $381.46 | | (15) | 012311260L | shifting gear 2nd gear z = 36 : 17 | 1 | $381.46 | | 16 | 012311317 | circlip 47 x 2,5 | 1 | $2.87 | | 17 | 012311285BT | gear wheel 3rd gear z = 40 : 28 | 1 | $303.93 | | 18 | 01X311317 | circlip 44,5 x 1,9 | X | $4.00 | | (18) | 01X311317A | circlip 44,5 x 1,94 | X | $3.89 | | (18) | 01X311317B | circlip 44,5 x 1,98 | X | $3.89 | | (18) | 01X311317C | circlip 44,5 x 2,02 | X | $4.00 | | (18) | 01X311317D | circlip 44,5 x 2,06 | X | $3.89 | | (18) | 01X311317E | circlip 44,5 x 2,10 | X | $3.89 | | 19 | 012311149BT | gear wheel 4th speed z = 36 : 33 | 1 | $326.94 | | 20 | N90294501 | circlip 38 x 2 | X | $6.27 | | (20) | N90294502 | circlip 38 x 2,16 | X | $3.81 | | (20) | N90294503 | circlip 38 x 2,20 | X | $3.81 | | (20) | N90294504 | circlip 38 x 2,24 | X | $3.81 | | (20) | N90294505 | circlip 38 x 2,28 | X | $3.81 | | 21 | 012311116G | needle cage 5th gear 38 x 43 x 27 | 1 | $23.67 | | 22 | 012311159EJ | shifting gear 5th gear z = 31 : 37 | 1 | $381.46 | | 23 | 01X311312A | retaining spring | 2 | $1.11 | | 24 | 01X311295J | synchroniser ring 5th gear and reverse gear | 1 | $91.64 | | 25 | N90294501 | circlip 38 x 2 | 1 | $6.27 | | 26 | 01X311315B | operating sleeve 5th gear and reverse gear | 2 | $154.03 | | 27 | 01X311309 | synchronising hub 5th gear and reverse gear | 1 | $165.97 | | 28 | N90294401 | circlip 37 x 1,9 | X | $6.27 | | (28) | N90294402 | circlip 37 x 1,93 | X | $6.27 | | (28) | N90294403 | circlip 37 x 1,96 | X | $8.35 | | (28) | N90294404 | circlip 37 x 1,99 | X | $6.27 | | (28) | N90294405 | circlip 37 x 2,02 | X | $8.29 | | (28) | N90294406 | circlip 37 x 2,05 | X | $8.29 | | 29 | 012311234E | needle-roller bearing 37 x 42 x 24,5 | 1 | $12.94 | | 30 | 01X311295J | synchroniser ring reverse gear | 1 | $91.64 | | 31 | 012311217L | shifting gear for reverse gear | 1 | $381.46 | | 32 | 012311375C | taper roller bearing 31,7 x 76,2 x 25,4 | 1 | $110.74 | | 33 | 012311393 | adjusting shim 0,45 | X | $9.79 | | (33) | 012311393A | adjusting shim 0,49 | X | $9.79 | | (33) | 012311393B | adjusting shim 0,53 | X | $9.79 | | (33) | 012311393C | adjusting shim 0,57 | X | $9.79 | | (33) | 012311393D | adjusting shim 0,61 | X | $9.79 | | (33) | 012311393E | adjusting shim 0,65 | X | $9.79 | | (33) | 012311393F | adjusting shim 0,69 | X | $9.79 | | (33) | 012311393G | adjusting shim 0,73 | X | $9.79 | | (33) | 012311393H | adjusting shim 0,77 | X | $9.79 | | (33) | 012311393J | adjusting shim 0,81 | X | $9.79 | | (33) | 012311393K | adjusting shim 0,85 | X | $9.79 | | (33) | 012311393L | adjusting shim 0,89 | X | $9.79 | | 34 | 012301251B | pressure plate 70,98 x 14,8 | X | $61.31 | | (34) | 012301251C | pressure plate 70,98 x 15,3 | X | $59.35 | | 35 | 012301193C | washer 71 x 7 | 1 | $33.85 |
|
