Porsche 914 Interior Panelling Parts

Click here to browse for Porsche 914 Parts from the main menu

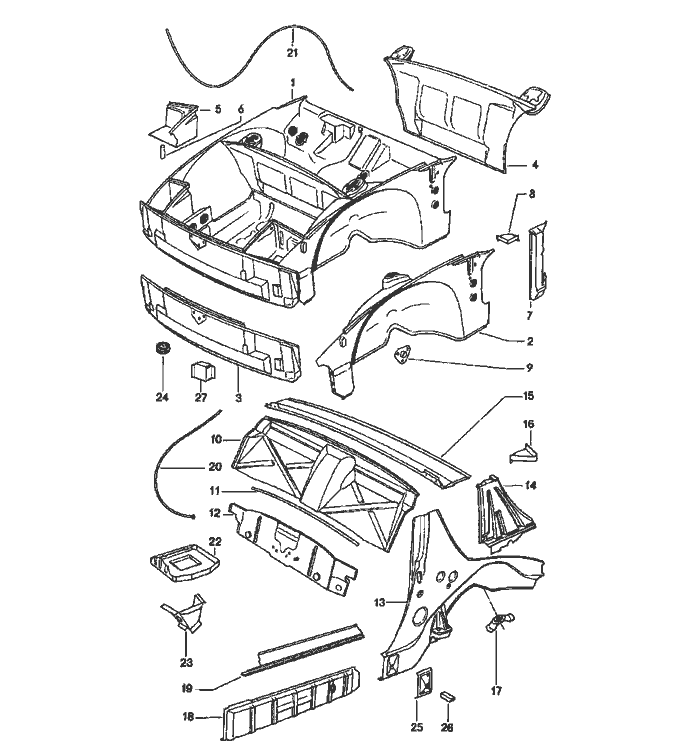

Interior Panelling

PosPart NumberDescriptionRemarkQty.Model
  interior panelling
1 914 501 901 10frame front part /V -71 1 914-6/4
1 914 501 901 11frame front part /V 72-74 1
1 914 501 901 13frame front part 751 914-1,8/2,0
2 914 501 033 10wheel housing Front Left1
(2) 914 501 034 10wheel housing Front Right1
(3) 914 502 031 12cross panel /V -74 1
(3) 914 502 031 13cross panel /V 751 914-1,8/2,0
  POS. 3
  see technical information
  NR 13. GR 8
3/1 914 502 919 10spacer  2 914-1,7/1,8
  for   914-2,0
  cross panel
  914.502.031.12
4 914 501 051 10cross panel -74 1
  for
  shock absorber
  front
(4) 914 501 051 11cross panel 751 914-1,8V/1,8
  for   914-2,0
  shock absorber
  front
(5) 914 502 041 11cover plate Left1
  for
  pop-up headlight
(5) 914 502 042 11cover plate Right1
  for
  pop-up headlight
6 914 502 429 10water drain tube  2
  for
  pop-up headlight
6 914 502 429 11water drain tube  2
  for
  water drain tube
7 914 501 903 10hinge pillar Left1
(7) 914 501 904 10hinge pillar Right1
PosPart NumberDescriptionRemarkQty.Model
8 914 502 425 10stop corner piece Front2
9 914 501 162 10reinforcement for stabiliser mounting  2 914-1,7/1,8V 914-1,8/2,0
10 914 502 011 10rear wall upper part -71 1 914-6/4
10 914 502 011 11rear wall 721
  upper part
11 914 501 823 10clamping piece Front1
12 914 501 007 10rear wall  1 914-6
(12) 914 501 119 10rear wall lower part -71 1 914-4
(12) 914 501 119 11rear wall lower part 721 914-4
(12) 914 501 119 14rear wall lower part -74 1 914-1,7/1,8V 914-1,8/2,0
(12) 914 501 119 14rear wall lower part 751 914-1,8V/1,8 914-2,0
13 914 501 941 10wheel housing panel inner panel Rear Left1 914-4/1,7 914-1,8/1,8V 914-2,0
13 914 501 941 11wheel housing panel inner panel F 47329 10937 for /L/H 731 914-1,7/1,8V 914-2,0
  usa with baffle plate
(13) 914 501 943 10wheel housing panel inner panel Rear Left1 914-6
(13) 914 501 944 10wheel housing panel inner panel Rear Right1
PosPart NumberDescriptionRemarkQty.Model
(13) 914 501 944 11wheel housing panel inner panel F 47329 10937 /R/H 731 914-1,7/1,8V 914-2,0
  for
  usa with
  baffle plate
14 914 502 035 10reinforcement for Left1
  roll bar
(14) 914 502 036 10reinforcement for Right1
  roll bar
15 914 502 033 10transverse strut  1
  inner panel for
  roll bar
16 914 502 243 10stop corner piece Rear Left1
(16) 914 502 244 10stop corner piece Rear Right1
17 914 501 030 10bracket for  2
  hinge pillar
18 914 501 013 10side member outer Left1
(18) 914 501 014 10side member outer Right1
19 914 501 089 10scuff plate for Left1
  side member
(19) 914 501 090 10scuff plate for Right1
  side member
20 914 502 237 10guide tube for  1
  lid-release cable engine compartment
PosPart NumberDescriptionRemarkQty.Model
21 914 511 231 10guide tube for lid-release cable front  1
22 914 501 587 10carrier plate for battery  1
23 914 501 073 10supporting plate  1
24 914 559 252 10stopper  9
25 914 501 151 10separator  2
26
91450115310
connecting piece  2
