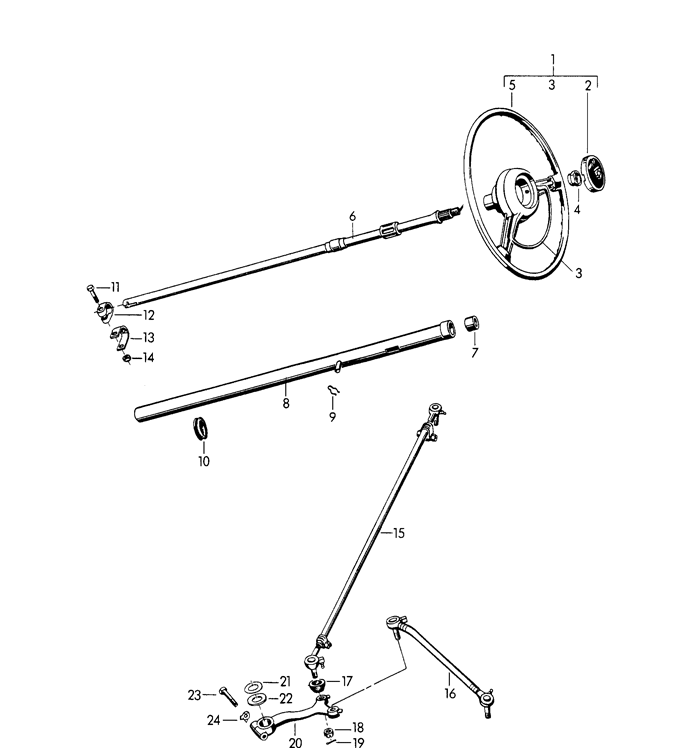

356 steering wheel steering shaft tie rod and steering arm

POS Part Number Description Qty. Needed Price Model/Option Info
1 356470191 steering wheel $ 400 mm complete 1 -
1 356470192 steering wheel $ 425 mm complete 1 -
2 35647107 horn button 1 -
3 35647208 ring piece 1 -
4 35647201 hexagon nut 1 $10.18
5 356472151 steering wheel $ 400 mm 1 -
5 356472152 steering wheel $ 425 mm 1 -
6 steering shaft 47.68.5 1 -
7 bush 47.33 1 -
8 steering column tube 1 -
9 retaining spring 05.22 1 -
- guide rail 1 -
10 bearing l-719.653 1 -
11 90007413002 hexagon-head bolt m 8 x 40 1 $1.21
12 64434765100 pipe clamp 1 -
13 64434768100 tab washer 1 $7.22
14 90007606402 hexagon nut m 8 1 $1.00
15 35647306 tie rod right 1 -
16 35647305 tie rod left 1 -
17 35647314 sealing bellows 4 $20.30
18 N0112101 castle nut m 10 x 1 4 $4.73
19 90002101300 cotter pin 2 x 22 4 $1.00
20 94435647301 steering arm 1 $17.37
21 washer $ 28 mm 0,88 mm 1 -
22 washer $ 28 mm 2,0 mm 2 -
23 hexagon-head bolt 1 -
24 tab washer 47.21 modification parts headlight flasher 1 -
- steering outer tube 1 -
- steering column tube 1 -
- retaining spring 05.22 1 -
- wiper contact 47.67 1 -
- PCG61510100 relay fanfare installation set damper for steering 1 $19.33
- clip 1 -
- clip 1 -
- damper for steering 1 -
- mount 1 -
- tie rod 1 -
