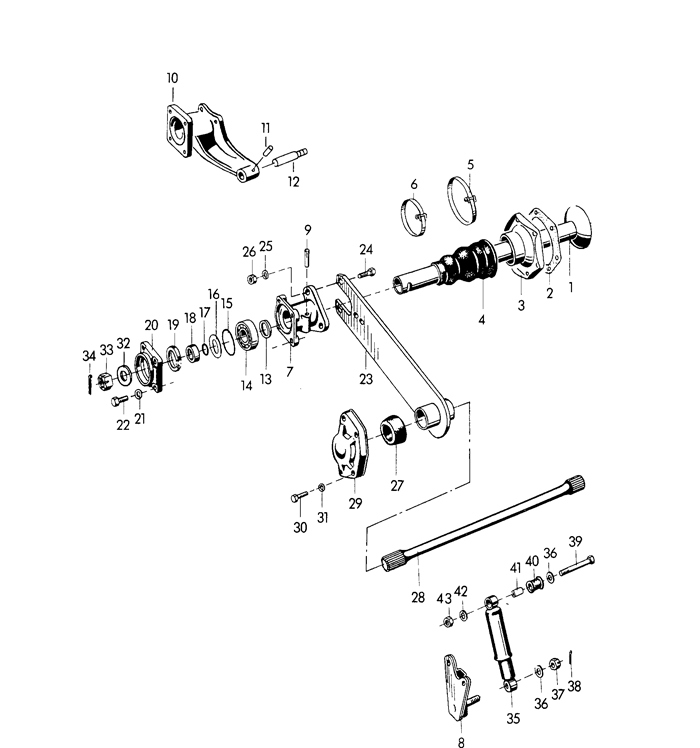

356 rear axle

POS Part Number Description Qty. Needed Price Model/Option Info
1 rear-axle cross-tube kd 34 01 2 -
2 gasket kd 34 65 0,10 - 0,15 mm X -
- gasket 34 65 0,25 - 0,30 mm X -
3 64433122100 housing 34 05 1 use also: sealing ring 111.501.139 2 -
4 64434191 boot not geschlitzt 2 $81.72
(4) 644341911 boot geschlitzt 2 $9.99
- PCG59800100 set of fastening parts without hose clamp X $15.54
- 90014602502 half-round screw m 4 x 18 12 -
- 90015102801 washer 4,3 24 $3.95
- N011004G hexagon nut m 4 12 $2.26
5 99951235002 hose clamp 2 $2.00
6 99951249900 hose clamp 2 $1.82
7 bearing flange kd 34 06 rear axle transmission 5745 h 3 2 -
8 mounting plate 34 79 rear axle transmission 5745 h 3(REAR, DRIVER SIDE) 1 -
(8) mounting plate 34 80 rear axle transmission 5745 h 3(REAR, PASSENGER SIDE) 1 -
- hexagon-head bolt m 12 x 1,5 x 35 4 -
9 dowel pin 10 x 40 din e 1472 2 -
10 bearing flange kd 34 91 rear axle transmission 5746 h 3(DRIVER SIDE) 1 -
(10) bearing flange kd 34 92 rear axle transmission 5746 h 3(PASSENGER SIDE) 1 -
11 dowel pin 8 x 28 rear axle transmission 5746 h 3 1 -
12 bolt rear axle transmission 5746 h 3 1 -
13 spacer 34 08 inner 2 -
14 deep-groove ball bearing 6306 din 625 2 -
15 sealing ring 34 34 2 -
16 35634402 washer 2 $5.76
17 gasket 34 43 2 -
18 35634401 spacer outer 2 $41.80
19 sealing ring 34 10 outer 2 -
20 housing 34 09 2 2 -
21 spring washer b 10 8 -
22 fastening screw 34 37 1 8 -
23 35634151 rear axle strut 2 -
- hexagon-head bolt m 12 x 1,5 x 22 2 -
- 35634153 washer 2 -
- spring washer b 12 8 -
- hexagon nut m 12 x 1,5 8 -
24 hexagon-head bolt m 12 x 1,5 x 30 2 -
25 lock ring b 12 8 -
26 hexagon nut m 12 x 1,5 6 -
27 rubber mounting 34 17 4 -
28 torsion bar 34 18 1 2 -
29 lid 34 19 1 2 -
30 hexagon-head bolt m 10 x 30 8 -
31 spring washer b 10 8 -
32 35634140 washer 2 -
33 castle nut 34 42 2 -
34 90002102502 cotter pin 5 x 45 2 $1.40
35 PCG33350100 shock absorber 2 $337.27
36 washer 4 -
37 castle nut m 12 x 1,5 2 -
38 cotter pin 3 x 25 din 94 2 -
39 hexagon-head bolt 34 90 2 -
- 91133352100 articulated ring 2 $7.43
40+41 articulated ring for shock absorber rear -
42 lock ring b 12 2 -
43 hexagon nut m 12 x 1,5 2 -
