103-15

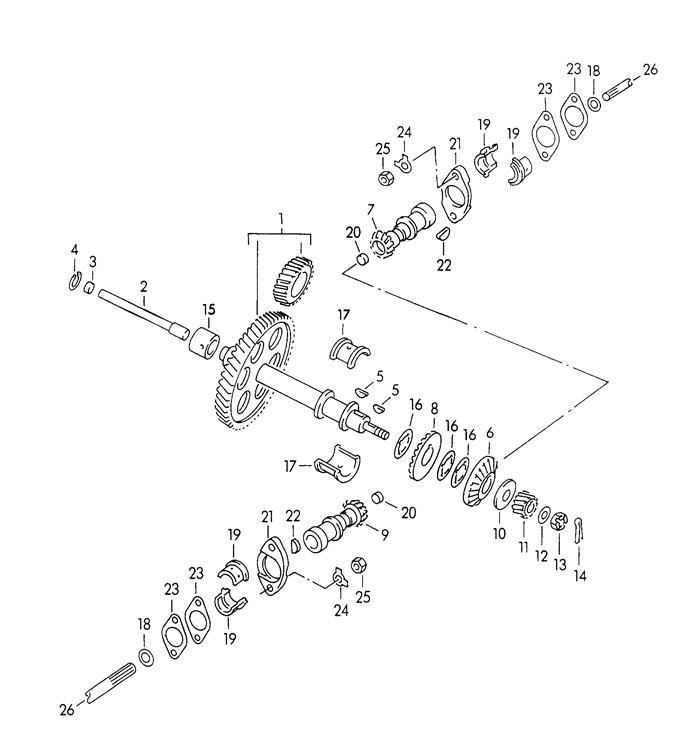

CARRERA driving mechanism for valve control

POS	Part Number	Description	Qty. Needed	Price	Model/Option Info
-	58710590100	set of wheels, compl. for valve control comprising: set a + d set b , c , e , f see illustrations 1/03/20	1	-	587/1/2
-	54705001	set of wheels, compl. for valve control comprising: set a + d set b , c , e , f see illustrations 1/03/20	1	-	692/3/3A
1	69210590100	intermediate shaft with timing gear	1	$4,621.77	587/1/2
(1)	547052851	intermediate shaft with timing gear	1	-	692/3/3A
2	54705247	filler rod wood	1	-
3	54705248	stopper	1	-
4	90004200301	circlip 20 x 1	1	-
5	N0127131	woodruff key 5 x 6,5	2	$1.27
-	54705022	set a comprising: picture 6 , 7	1	-
-	54705025	set d comprising: picture 8 , 9	1	$497.66
6	547052342	bevel pinion a only together with picture 7	1	-
7	547052231	pinion a only together with picture 6	1	-
8	547052341	bevel pinion d only together with picture 9	1	-
9	547052232	pinion d only together with picture 8	1	-
10	54705268	thrust washer	1	-
11	69210715300	gear wheel oil pump	1	-
12	54705269	washer	1	-
13	54705286	castle nut	1	-
14	N0125321	cotter pin 3 x 25	1	-
15	547052880	bearing sleeve	1	$194.28
16	54705297	shim 0,05 mm	X	-
(16)	54705298	shim 0,08 mm	X	-
(16)	54705299	shim 0,10 mm	X	-
(16)	54705300	shim 0,35 mm	X	-
17	54705912	bearing shell set	1	$1,396.44
18	54705246	o-ring	2	$6.27
19	54705913	bearing shell set	2	$892.11
20	54705301	stopper	2	-
21	54705236	flange	2	$215.51
22	N0127061	spring 3 x 6,5	2	-
23	54705270	shim 0,05 mm	X	-
(23)	PCG05271	shim 0,08 mm	X	$22.11
(23)	PCG05272	shim 0,10 mm	X	$22.11
(23)	PCG05273	shim 0,35 mm	X	$23.58
24	99903900100	tab washer	4	$3.75
25	50208310	hexagon nut	4	$2.59
26		see group 1/03/20	*	-
