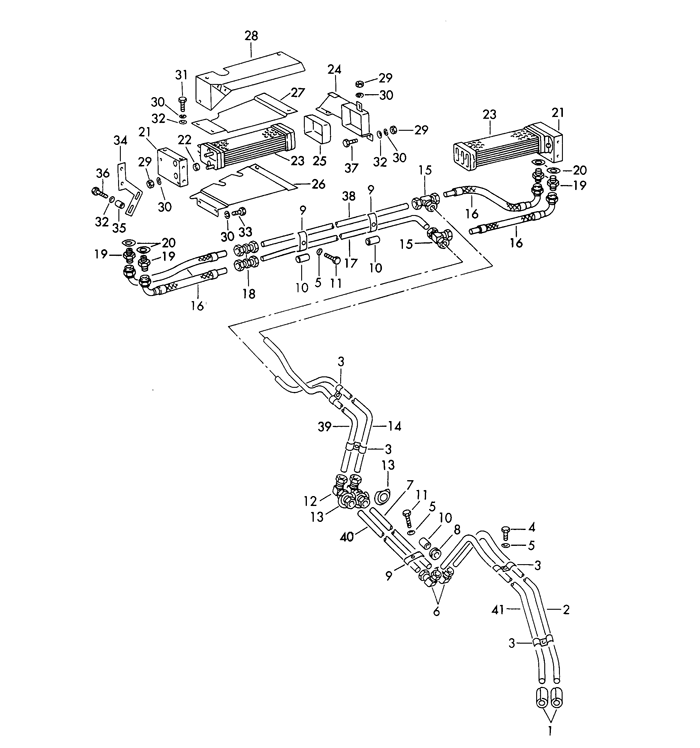

CARRERA, REUTTER, 692/3/3A oil pipe oil cooler

POS Part Number Description Qty. Needed Price Model/Option Info
1 99918100550 hose piece 2 $29.57
2 69210738701 pipeline vii complete 1 -
3 69210736300 pipe clamp 4 -
4 90007507803 hexagon-head bolt m8 x 15 4 $1.50
5 90002701502 lock ring b8 13 $1.10
5 90002701503 lock ring b8 13 $1.89
6 90009900202 threaded joint kl 15 2 $16.61
7 69210738500 pipeline v 14,7 x 1,3 mm 1 -
8 99970203850 rubber sleeve 14 x 23 x 7 2 $1.10
9 69210735700 retaining bar 3 -
10 99918100450 hose piece 14 x 18 x 30 6 -
11 90007503203 hexagon-head bolt m8 x 35 2 $3.98
12 90009900402 threaded joint ul 15 2 $29.72
13 69210736500 seat 4 -
14 69210738300 pipeline 14,7 x 1,3 mm 1 $21.85
15 90009900302 t-connecting socket ql 15 2 $21.05
16 69210732501 oil hose for oil cooler 4 -
17 69210738101 pipeline 1 -
18 90009900102 threaded joint el 15 2 $19.95
19 90013600202 union a 13 4 -
20 99903000110 tab washer 4 -
21 69210740101 plate oil cooler(DRIVER SIDE) 2 -
22 61610112300 sealing ring rubber 4 $1.00
23 PCG10791250 oil cooler complete 2 $1,164.33
24 69210704301 bearing oil cooler(DRIVER SIDE) 1 -
(24) 69210704401 bearing oil cooler(PASSENGER SIDE) 1 -
25 69210749100 rubber ply 2 -
26 69210741501 air duct lower(DRIVER SIDE) 1 -
(26) 69210741601 air duct lower(PASSENGER SIDE) 1 -
27 69210741101 air duct upper(DRIVER SIDE, FRONT) 1 -
(27) 69210741201 air duct upper(PASSENGER SIDE, FRONT) 1 -
28 69210741301 air duct upper(DRIVER SIDE, REAR) 1 -
(28) 69210741401 air duct upper(PASSENGER SIDE, REAR) 1 -
29 N02214812 hexagon nut m 6 18 $1.74
29 9000760100B hexagon nut m 6 18 $1.06
30 90002701302 lock ring b 6 30 -
31 99907200501 hexagon-head bolt m 6 x 12 6 $1.06
32 99902510802 washer 6,4 24 $1.10
33 N01021013 hexagon-head bolt m 6 x 10 m 6 x 10 4 $1.00
34 69210746101 bracket oil cooler 2 -
35 69210746300 spacer sleeve for oil cooler mount 4 -
36 90006710301 hexagon-head bolt m 6 x 45 4 $1.00
37 90007501402 hexagon-head bolt m 6 x 18 2 -
38 69210738201 pipeline 14,7 x 1,3 1 -
39 69210738400 pipeline 14,7 x 1,3 1 -
40 69210738600 pipeline 14,7 x 1,3 1 -
41 69210738801 pipeline 14,7 x 1,3 1 -
