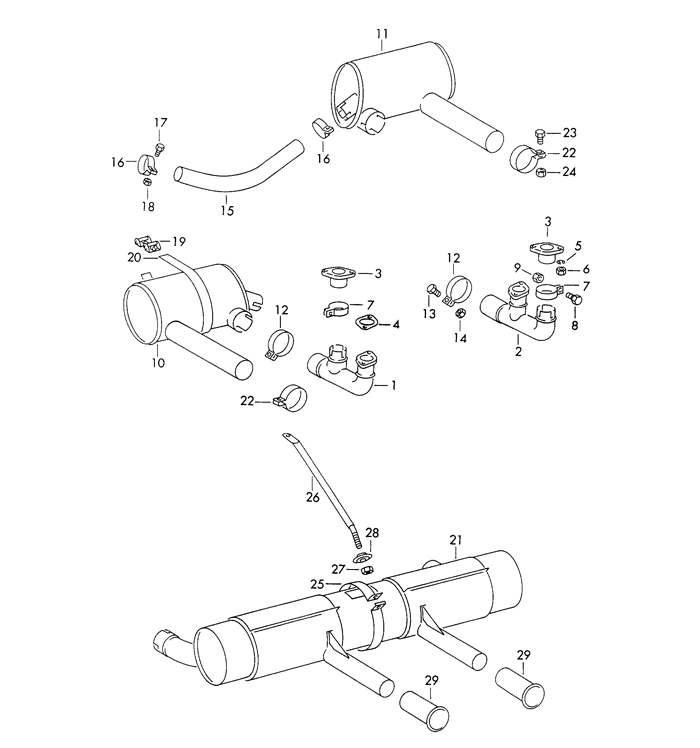

CARRERA, 692/3/3A exhaust system

POS	Part Number	Description	Qty. Needed	Price
1	69211102700	elbow double flange	1	-
2	69211102800	elbow double flange	1	-
3	69211102300	flange socket	2	-
4	PCG11121000	gasket	4	-
5	90002701502	lock ring b 8	8	$1.10
5	90002701503	lock ring b 8	8	$1.89
6	54754221	hexagon nut	8	-
7	61611125501	pipe clamp	2	$8.80
8	90007502903	hexagon-head bolt	2	$1.00
		m 8 x 25	2	-
9	54754221	hexagon nut	2	-
10	69211101500	front muffler(DRIVER SIDE)	1	-
11	69211101600	front muffler(PASSENGER SIDE)	1	-
12	99951103301	pipe clamp	1	$2.75
(12)	99916500102	pipe clamp	1	$2.48
13	90007502903	hexagon-head bolt m 8 x 25	2	$1.00
14	54754221	hexagon nut	2	-
15	69211112100	pipe	1	-
16	99951201502	pipe clamp	2	$1.96
17	90007502602	hexagon-head bolt m 8 x 18	2	$1.10
18	54754221	hexagon nut	2	-
19	99951200402	turnbuckle	2	$57.84
20	99951200502	restraining strap	2	$7.07
		25 x 700	2	-
21	69211101300	exhaust silencer	1	-
22	90016500202	pipe clamp	2	-
23	90007502903	hexagon-head bolt m 8 x 25	2	$1.00
24	54754221	hexagon nut	2	-
25	99951103102	restraining strap	1	$2.13
26	69211105301	strut(DRIVER SIDE)	1	-
(26)	69211105401	strut(PASSENGER SIDE)	1	-
27	99908400202	hexagon nut	2	$4.62
28	111905449A	protection cap	2	$1.25
29	54754110	cover tail pipe	2	$61.60
