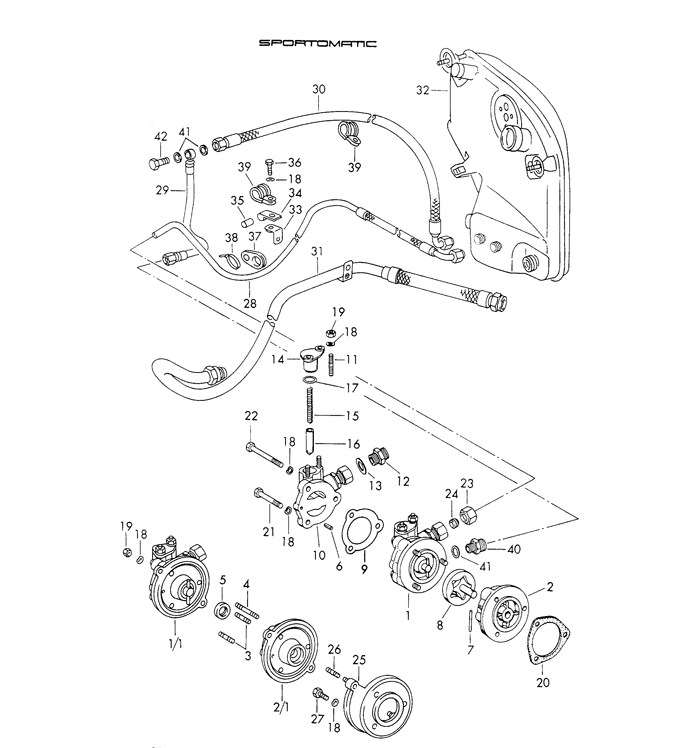

911 T/E oil supply -71 for converter sportomatic

POS Part Number Description Qty. Needed Price Model/Option Info
1 90510700604 oil pump for converter 1 - 911 T
1(Jan) 90510700800 oil pump for converter 1 - 911 E
2 90510710103 rotor housing 1 - 911 T
1(Feb) 90510710201 rotor housing 1 $446.84 911 E
3 99906208502 stud bm 6 x 20 2 $3.27 911 E
4 90006115902 stud bm 6 x 38 1 - 911 E
5 99911349240 radial sealing ring ba si 12,7 x 22 x 6 1 $44.00 911 E
6 90019701700 tensioning sleeve 4 x 14 1 $1.10
7 90030200100 straight pin 4 m 6 x 32 1 -
8 90510790101 rotor set 1 -
9 90510719103 gasket 1 $2.82
10 90510701504 lid complete 1 -
11 99906200202 stud bm 6 x 15 2 $1.69
12 99909901102 union am 10 -11 1 -
13 90012300830 sealing ring a 14 x 20 1 $3.15
14 90510714103 flat connector 1 $99.95
15 90510714201 compression spring 1 -
16 90510714301 slide 1 $218.74
17 99970113550 o-ring 1 $1.00
18 90002800801 spring washer b 6 X $1.00
19 N02214812 hexagon nut m 6 X $1.74
19 9000760100B hexagon nut m 6 X $1.06
20 93010519705 gasket 1 $1.45 911 T
21 90007411102 hexagon-head bolt m 6 x 50 2 $2.33 911 T
21 90007411103 hexagon-head bolt m 6 x 50 2 $1.10 911 T
22 90007402202 hexagon-head bolt m 6 x 65 1 $1.98 911 T
23 99910400702 union nut a-10-11 1 $5.21
24 99910300102 cutting ring b-10-11 1 $5.21
25 90110701100 intermediate flange 1 - 911 E
26 99906205502 stud bm 6 x 12 2 $5.13 911 E
27 90007501402 hexagon-head bolt m 6 x 18 3 - 911 E
28 90510703700 oil pipe complete oil tank - oil pump 1 -
29 90510703802 pressure line complete oil pump - switch housing 1 -
30 90510701900 oil hose complete switch housing - oil tank 1 -
31 90110772001 oil pipe complete engine - oil tank 1 -
32 91110700156 oil tank 1 -
33 90510702100 retaining bracket 1 $3.84
34 99951100702 clip 1 -
35 90110859100 boot 1 -
36 N01021513 hexagon-head bolt m 6 x 15 m 6 x 15 1 $1.10
37 90510717300 spacer rubber 1 $11.90
38 99951300340 hose clamp 1 $3.43
39 99951107602 clamp 2 -
40 99913600702 union 1 $13.31
41 90012304330 sealing ring a 12 x 15,5 al 3 $1.69
42 99913401202 banjo bolt 1 -
