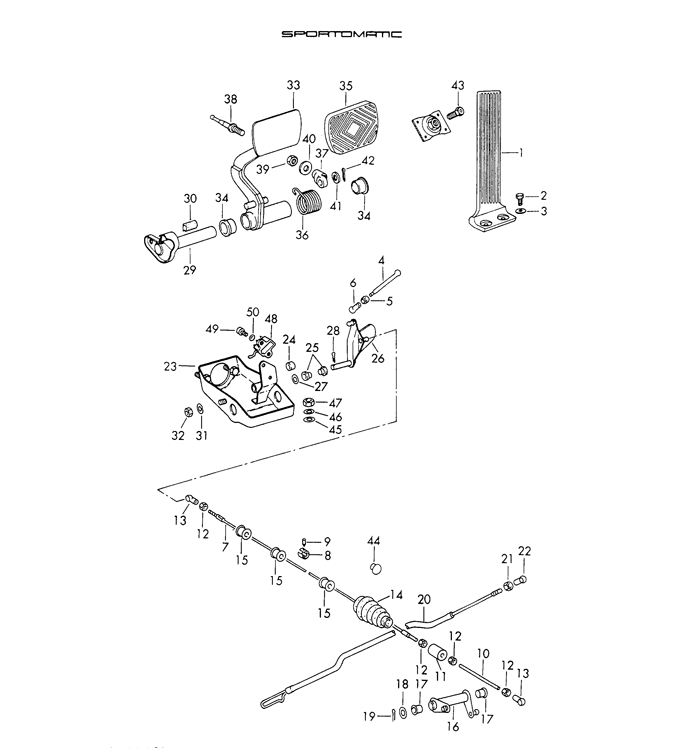

SPM pedals /LL

POS Part Number Description Qty. Needed Price Model/Option Info
1 90142301000 accelerator pedal 1 $29.00
2 N01021513 hexagon-head bolt m 6 x 15 m 6 x 15 2 $1.10
3 90015100609 washer b 6,4 2 $1.10
4 91442322700 push rod 1 $23.00
5 90007609101 hexagon nut m 5 1 $1.00
6 N0155213 ball socket a 8 1 $4.95
7 PCG42302400 throttle linkage 1 $108.90
8 90142431900 screw nipple 1 -
9 N0131141 pin m 5.8 1 -
10 90142322301 extension rod 1 $8.38
11 91142308102 connecting piece 1 $15.00 911 T
(11) 91142308102 connecting piece 1 $15.00 911 E
12 90007609101 hexagon nut m 5 4 $1.00
13 N0155213 ball socket a 8 2 $4.95
14 91442359300 sealing sleeve 1 $10.42
15 90142322700 bush 3 $8.50
16 90142302703 reverse lever with bush(UP TO YEAR 71) 1 $79.17
(16) 91142301701 reverse lever with bush use also: 911.423.227.00 900.910.096.02(FROM YEAR 72 UP) 1 $52.34
17 91442321100 bush 2 $2.63
18 90002500804 washer 10,5 1 $1.00
19 N0125301 cotter pin 3 x 15 1 $1.34
20 90542302602 throttle linkage(UP TO YEAR 71) 1 $76.90 911 T
(20) 90542302605 pull rod(FROM YEAR 72 UP) 1 - 911 T-V
(20) 90542302603 throttle linkage(UP TO YEAR 71) 1 $71.73 911 E
(20) 90542302605 throttle linkage(FROM YEAR 72 UP) 1 - 911 E
21 90007609101 hexagon nut m 5 1 $1.00
22 N0155213 ball socket a 8(UP TO YEAR 71) 1 $4.95
22 N0155213 ball socket(FROM YEAR 72 UP) 1 $4.95 911 T-V/T-E
a 8 - 911 E
(22) 91142314700 ball socket(FROM YEAR 72 UP) 1 $8.50 911 T-K
23 91142306502 bearing bracket 1 $109.25
24 90142319300 rubber stop 1 $1.75
25 90142325300 bearing sleeve 2 $3.00
26 90142325002 reverse lever front 1 $95.28
27 90003110501 washer 8,4 1 $1.10
28 90002100800 cotter pin 2 x 15 1 $1.10
29 90542303500 bearing tube 1 $15.00
30 90542339100 protective strip 1 -
31 90002701502 lock ring b 8 1 $1.10
31 90002701503 lock ring b 8 1 $1.89
32 N0111513 hexagon nut m 8 1 -
33 90542305300 brake pedal 1 -
34 91142354200 bush 2 $3.33
35 90542351100 rubber pad 1 -
36 90542353100 return spring 1 -
37 90142350702 intermediate piece 1 $22.43
38 90142305704 piston rod 1 $27.03
39 90015800302 hexagon nut m 10 1 $5.18
40 90142315700 stop washer 1 -
41 N0115642 washer 13 1 -
42 90002101500 cotter pin 3 x 20 1 $1.30
43 90155167120 hexagon-head bolt 1 $15.90
44 99970305840 cap plug 1 -
45 90002500703 washer 8,4 2 $0.79
46 90002701502 lock ring b 8 2 $1.10
46 90002701503 lock ring b 8 2 $1.89
47 90007606402 hexagon nut m 8 2 $1.00
48 91161341101 brake light switch 1 $35.10
49 90014601102 oval-head screw am 4 x 10 2 $2.98
50 90011401401 shake-proof washer a 4,3 2 $1.80
