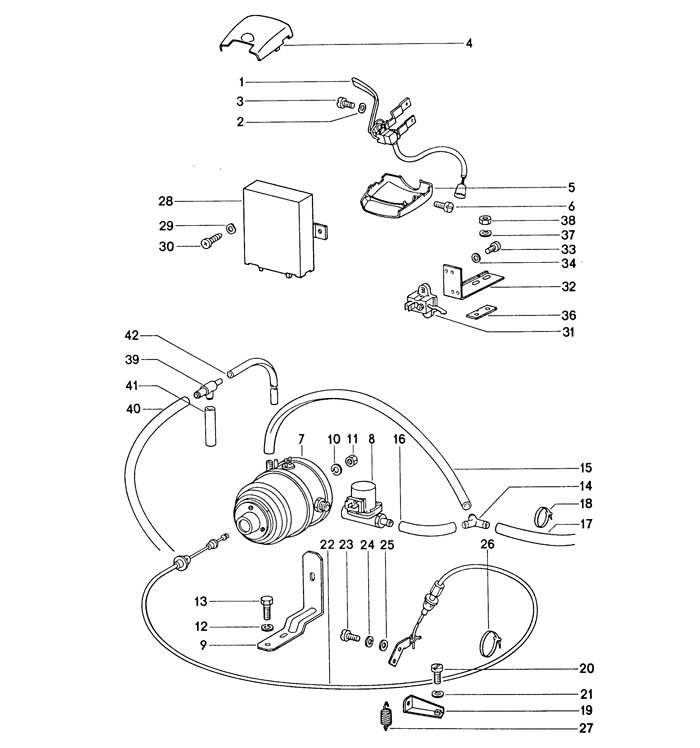

cruise control

POS Part Number Description Qty. Needed Price Model/Option Info
1 91161310201 switch 1 $70.52
2 90011500701 serrated lock washer 3,2 2 $2.00
3 90001407902 pan-head screw m 3 x 10 2 $3.23
4 91161331102 switch housing 1 -
5 91161331202 switch housing 1 $123.94
6 90001407902 pan-head screw m 3 x 16 2 $3.23
7 91161712301 drive link cruise control 1 $473.94
8 91161712500 solenoid valve 1 $172.11
9 91161712700 support 1 $16.98
10 90002701502 lock ring b 8 1 $1.10
10 90002701503 lock ring b 8 1 $1.89
11 90007606402 hexagon nut m 8 1 $1.00
12 N0120064 lock ring b 6 2 $1.00
13 99907200501 hexagon-head bolt m 6 x 12 2 $1.06
14 99913700740 hose connection 1 $4.18
- N0203591 hose 9 x 15 X $9.35
15 350 mm 1 -
16 100 mm 1 -
17 310 mm 1 -
18 99951301040 tie-wrap 140 mm 1 $3.03
19 91111022600 retaining bracket 1 $10.14
20 90007100502 oval-head screw m 5 x 10 1 -
21 N0122224 spring washer b 5 1 $1.00
22 91161712401 bowden cable 1 -
23 N01412813 oval-head screw m 5 x 8 2 $1.10
24 N0120053 lock ring a 5 2 $1.00
25 90002500302 washer a 5,3 2 -
26 99951301040 tie-wrap 250 mm 1 $3.03
27 91111022700 gas prop for cruise control 1 -
28 91161712103 regulator cruise control 1 $484.73
29 N0122224 spring washer b 5 2 $1.00
30 90014600303 oval-head screw m 5 x 10 2 $1.10
31 91161341101 brake light switch 1 $35.10
32 91161313100 support 1 $12.27
33 90014601102 oval-head screw m 4 x 10 2 $2.98
34 90011401401 shake-proof washer a 4,3 2 $1.80
36 91161313200 plate 1 -
37 N0122265 spring washer b 6 2 $1.00
38 N02214812 hexagon nut m 6 2 $1.74
38 9000760100B hexagon nut m 6 2 $1.06
39 91111022800 t-reducer 1 -
- N0203591 hose c 9 x 15 X $9.35
40 130 mm 1 -
41 45 mm 1 -
- 99918116750 hose c 4,5 x 10,5 X $33.07
42 500 mm 1 -
- 91161215702 wiring harness cruise control regulator tunnel(LEFTHAND DRIVE, UP TO YEAR 76) 1 $80.81
- 91161215705 wiring harness cruise control regulator tunnel for cars with brake booster(LEFTHAND DRIVE, FROM YEAR 77 UP) 1 -
- 91161215800 wiring harness tunnel drive link 1 $19.45
- 91161215602 wiring harness 1 $6.67 SPM
