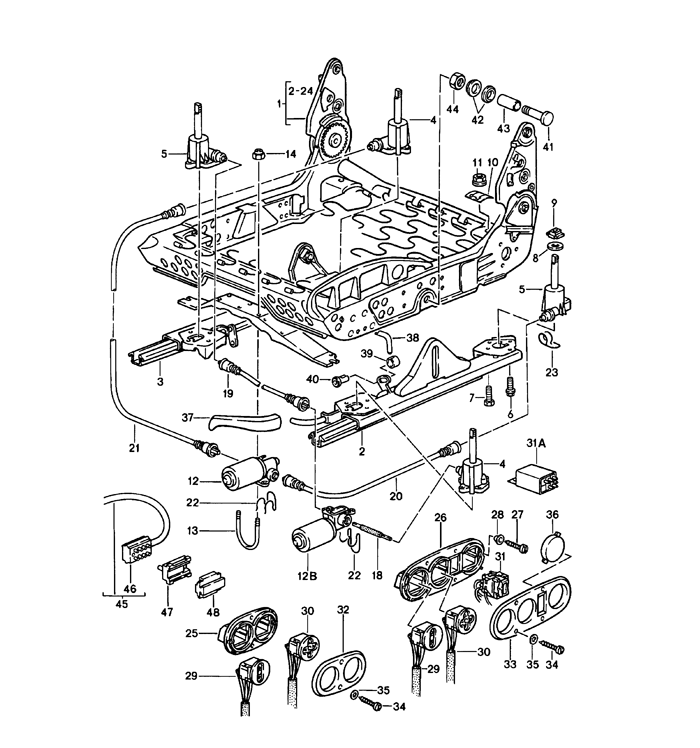

seat frame electric

POS Part Number Description Qty. Needed Price Model/Option Info
1 92852106912 seat frame elect. vertical adjustment elect. backrest adjustment manual longitudinal adjustment(DRIVER SIDE) 1 $680.57
(1) 99352106903 seat frame all-electric(DRIVER SIDE) 1 $6,078.63
(1) 92852107012 seat frame elect. vertical adjustment elect. backrest adjustment manual longitudinal adjustment(PASSENGER SIDE) 1 $680.57
(1) 99352107003 seat frame(PASSENGER SIDE) 1 $6,078.63
all-electric 1 -
2 92852148911 seat rail 1 $569.48
2 92852148911 seat rail left seat outer elect. vertical adjustment manual longitudinal adjustment 1 $569.48
(2) 92852149011 seat rail 1 $626.49
(2) 92852149011 seat rail right seat outer elect. vertical adjustment manual longitudinal adjustment 1 $626.49
3 96452149200 seat rail 1 $1,046.63
3 96452149200 seat rail left seat inner elect. vertical adjustment manual longitudinal adjustment 1 $1,046.63
(3) 96452149100 seat rail 1 $341.90
(3) 96452149100 seat rail right seat inner elect. vertical adjustment manual longitudinal adjustment 1 $341.90
(2) 92852148908 seat rail 1 $1,072.37
(2) 92852148908 seat rail left seat outer all-electric 1 $1,072.37
(2) 92852149008 seat rail 1 $1,072.37
(2) 92852149008 seat rail right seat outer all-electric 1 $1,072.37
(3) 92852149211 seat rail 1 $839.27
(3) 92852149211 seat rail left seat inner all-electric 1 $839.27
(3) 92852149111 seat rail 1 $839.27
(3) 92852149111 seat rail right seat inner all-electric 1 $839.27
4 92852172103 lifting gear 2 $34.50
4 92852172103 lifting gear left front, right rear 2 $34.50
5 92852172203 lifting gear 2 $132.80
5 92852172203 lifting gear right front, left rear 2 $132.80
6 99921703301 locking screw m 6 x 16 20 $3.15
7 90018603202 pan-head screw m 6 x 16 8 $3.76
8 99902512940 washer 10,2 x 30 x 1,5 8 $5.46
9 92852172702 slide 8 $37.07
10 92852172302 guide spring 8 $2.33
11 92852173002 nut 8 $11.92
12 92862412601 geared motor 2 $311.28
12 92862412601 geared motor rear vertical adjustment 2 $311.28
12B 92862412601 geared motor 2 $311.28
12B 92862412601 geared motor front vertical adjustment 2 $311.28
13 99922200102 stirrup bolt m 4 6 $1.10
14 90008402001 lock nut m 4 m 4 12 $2.20
18 92852167103 shaft(DRIVER SIDE) 2 -
18 92852167103 shaft front vertical adjustment(DRIVER SIDE) 2 -
19 92852167202 pliable shaft front vertical adjustment(PASSENGER SIDE) 2 $15.58
20 92852167305 flexible shaft(DRIVER SIDE) 2 $124.16
20 92852167305 shaft rear vertical adjustment(DRIVER SIDE) 2 $124.16
21 92852167402 pliable shaft rear vertical adjustment(PASSENGER SIDE) 2 -
22 92852167502 moulded spring for engine 6 $16.39
23 92852169900 moulded spring 6 $8.71
25 92852155904 switch insert 2 $5.75
26 92852155902 switch insert(DRIVER SIDE) 1 $17.12 M139YEARDESCRIPTION1984-1989SEAT HEATING SYSTEM, LEFT SEAT
(26) 92852156002 switch insert(PASSENGER SIDE) 1 $17.55 M340YEARDESCRIPTION1984-1989SEAT HEATING SYSTEM, RIGHT SEAT
27 N0139881 tapping screw b 3,5 x 16 2 $1.35
28 99959184907 cone washer b 3,5 2 $1.24
29 92861318100 switch front vertical adjustment 1 $69.50
30 92861318300 switch for backrest adjustment rear vertical adjustment 2 $162.53
31 92861318701 switch(DRIVER SIDE) 1 $172.01 M139YEARDESCRIPTION1984-1989SEAT HEATING SYSTEM, LEFT SEAT
31 92861318801 switch seat heater(PASSENGER SIDE) 1 $166.25 M340YEARDESCRIPTION1984-1989SEAT HEATING SYSTEM, RIGHT SEAT
31A 92861852100 relay seat heater 1 $128.66 M139YEARDESCRIPTION1984-1989SEAT HEATING SYSTEM, LEFT SEATM340YEARDESCRIPTION1984-1989SEAT HEATING SYSTEM, RIGHT SEAT
32 9285215610401C trim for switch 2 $24.05
9285215610401C satin black $24.05
33 9285215610301C trim for switch 1 $24.05 M139YEARDESCRIPTION1984-1989SEAT HEATING SYSTEM, LEFT SEATM340YEARDESCRIPTION1984-1989SEAT HEATING SYSTEM, RIGHT SEAT
9285215610301C satin black $24.05
34 90014301601 tapping screw b 3,5 x 16 4 $1.34
35 90002501307 washer a 3,7 4 $1.69
36 92861342500 lid 1 $5.02 M139YEARDESCRIPTION1984-1989SEAT HEATING SYSTEM, LEFT SEATM340YEARDESCRIPTION1984-1989SEAT HEATING SYSTEM, RIGHT SEAT
37 9115215330101C handle(DRIVER SIDE) 1 -
(37) 9115215330101C handle for longitudinal adjustment(PASSENGER SIDE) 1 -
(37) handle for longitudinal adjustment 2 -
9115215330101C satin black -
38 92852152503 connecting rod for longitudinal adjustment 2 $17.06
39 N90251401 clamping sleeve for longitudinal adjustment 4 $1.39
40 N90251501 guide bush for longitudinal adjustment 4 $3.78
41 92852168102 bolt 4 $25.00
42 92852168302 washer 1,5 pa 6 8 $10.96
43 92852168502 bush 4 $1.33
44 90003400302 hexagon nut m 10 wiring harness single parts 4 $3.15
45 91161252101 wiring harness for electric seat equipment 1 -
46 94461211700 connector housing 8-pole 2 $31.77
47 99965239540 connector housing 8-pole 2 -
48 99965239640 clip 8-pole 2 $3.15
- N0209044 tie-wrap 6,5 x 120 5 $1.10
