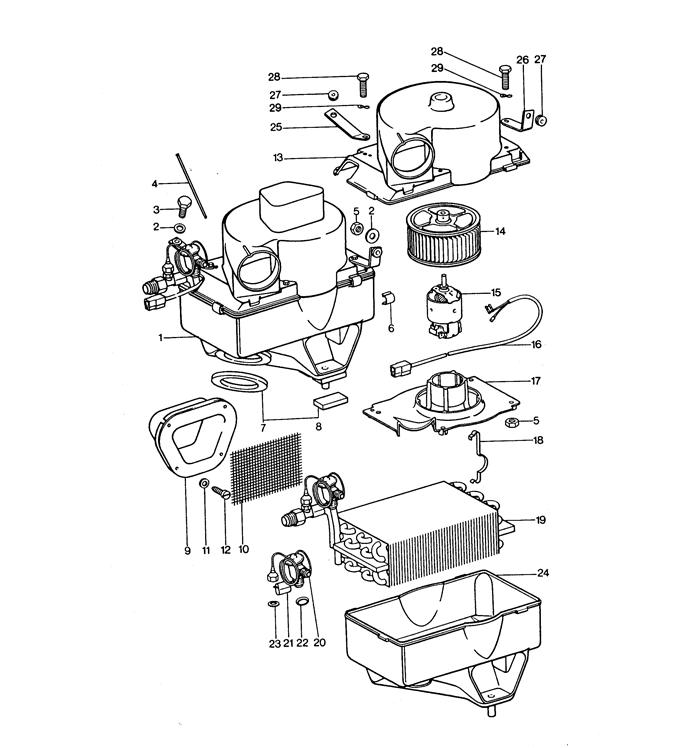

air conditioner evaporator evaporator housing accessories

POS	Part Number	Description	Qty. Needed	Price
1	90157302100	evaporator with housing(LEFTHAND DRIVE)	1	$2,127.83
2	90015100302	washer 6,4	2	$1.10
2	90015100603	washer 6,4	2	$1.00
3	90007505703	hexagon-head bolt m 6 x 16	1	$1.25
4	90157390300	guide tube for temperature switch	1	-
5	N02214812	hexagon nut m 6	5	$1.74
5	9000760100B	hexagon nut m 6	5	$1.06
6	90157390400	tensioning spring	4	$2.85
>>7	90157390100	parts kit comprising:	1	$29.28
-		sealing ring	1	-
8		rubber pad	2	-
9	91157307301	connection piece	1	$450.40
10	90157312900	grille	1	-
11	90015102801	washer 4,3	4	$3.95
12	90014300400	oval-head sheetmetal screw b 3,5 x 19	4	$1.25
13	91157302300	housing cover	1	-
14	90157390601	fan	1	$155.00
15	90162490100	electric motor	1	-
16		see group 8/13/50 pos. 13	1	-
17	91157332300	engine support	1	$63.50
18	90162490300	clamp	4	-
19	90157390700	evaporator	1	-
20	90157391500	expansion valve	1	$12.97
21	90157391400	clip	1	-
22	90157314700	gasket 3/4"	1	$4.77
23	90157391600	gasket 7/16"	1	$4.96
24	90157390800	housing lower part	1	-
25	91157247300	fastening angle	1	$35.18
26	91157247100	fastening angle	1	$35.18
27	90157313300	rubber sleeve	2	-
28	90037803001	hexagon-head bolt m 6 x 20	4	$1.10
29	N0122265	spring washer b 6	4	$1.00
