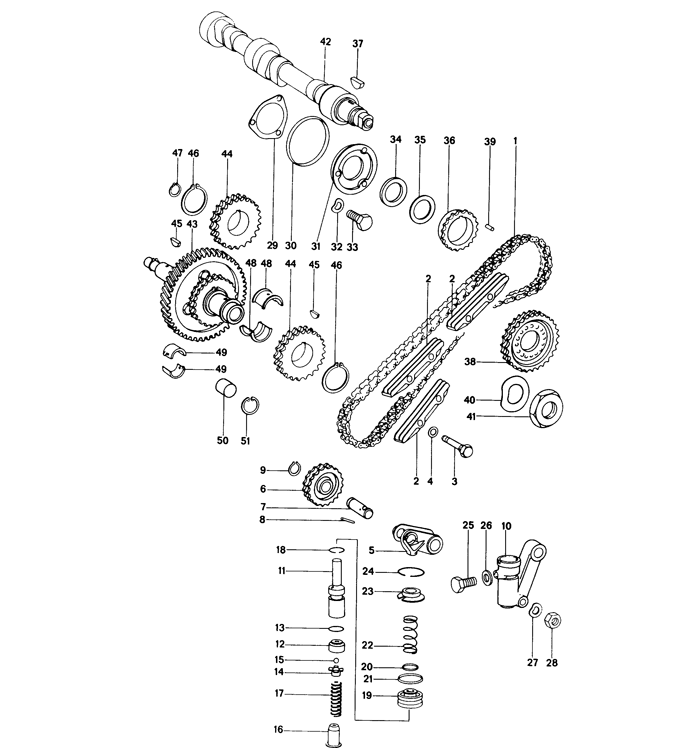

914-6 valve control right

POS Part Number Description Qty. Needed Price Model/Option Info
1 99310552900 timing chain 1 $88.00
2 91110522205 guide rail 3 $5.38
3 90110522603 bolt for guide rail 4 $56.12
4 90012306630 sealing ring a 10 x 16 4 $1.69
5 90110550602 chain wheel support(PASSENGER SIDE) 1 $310.64
6 90110505500 sprocket complete 1 $103.40
7 90110505602 bolt complete 1 $52.25
8 90019701000 tensioning sleeve 3 x 22 1 $1.24
9 N0124151 circlip 15 x 1 1 $1.35
10 90110505001 housing housing complete 1 -
26(Oct) 93010504900 chain adjuster complete 1 -
- 91110590101 repair kit comprising: picture 12-15,18,20,21,24,26 1 $44.00
11 93010555900 piston for chain adjuster 1 $119.65
12 intermediate piece 1 -
13 o-ring r 10 - 1,3 1 -
14 housing for ball valve 1 -
15 ball 5 mm v 1 -
16 93010552300 spring guide 1 $4.17
17 91610553401 compression spring for chain adjuster 1 $8.48
18 circlip 16 1 -
19 90110555701 piston 1 $8.56
20 o-ring or 8,3 - 2,4 1 -
21 o-ring or 20,3 - 2,4 1 -
22 93010553501 compression spring 1 $2.75
23 93010556800 concave washer 1 $6.69
24 circlip 28 1 -
25 93010557300 bleeder screw 1 $20.33
26 sealing ring a 6,5 x 9,5 1 -
27 N0122411 spring washer b 8 x 15 1 $1.00
28 90007606402 hexagon nut m 8 1 $1.00
29 93010519705 gasket 1 $1.45
30 99970112440 o-ring 67,5 x 75,5 x 4 1 $1.73
31 93010519600 cover 1 $30.39
32 90002800801 spring washer b 6 3 $1.00
33 90007501702 hexagon-head bolt m 6 x 25 3 $1.86
33 90007501703 hexagon-head bolt m 6 x 25 3 $1.67
34 90110556200 thrust washer 1 -
35 90110556100 shim X $1.95
36 90110558301 flange sprocket 1 $95.00
37 N0127082 woodruff key 4 x 5 1 $1.60
38 90110554602 sprocket ii 1 $84.00
39 90024300100 straight pin a 6 h 8 x 14 1 $3.00
40 90002802102 spring washer b 30 1 -
41 90110517200 nut for camshaft 1 $65.91
42 90110513400 camshaft(PASSENGER SIDE) 1 -
43 93010501301 intermediate shaft with timing gear number plate 0(WW) 1 -
(43) 93010501311 intermediate shaft with timing gear number plate 1(WW) 1 $475.20
44 not available X -
45 not available X -
46 90004102501 circlip 36 x 1,75 2 $4.14
47 90004102601 circlip 13 x 1 1 $1.00
48 99610113780 thrust bearing for intermediate shaft 2 $25.30
48 99310113701 thrust bearing for intermediate shaft 2 $12.10
49 99610143570 bearing 2 $20.28
50 90110527500 stopper 1 $15.97
51 N0122961 circlip 16 x 1 1 $1.39
