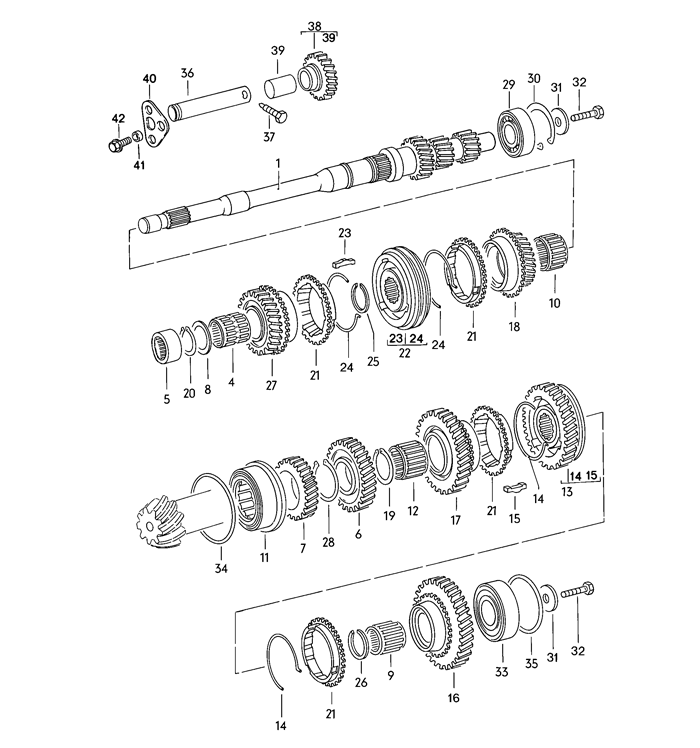

924 gears and shafts 4-speed

POS Part Number Description Qty. Needed Price Model/Option Info
1 088311105AD drive shaft 1 $154.73
4 016311115 needle-roller bearing 4th speed 1 $28.73
5 088311123 needle sleeve 1 $26.11
6 088311131A 3rd gear 1 -
7 088311149 4th speed 1 -
8 088311155A thrust washer 1 $13.37
9 088311207 1st gear 1 $9.98
10 016311213H 3rd gear 1 $41.57
11 088311220 bearing 1 -
12 088311229B needle-roller bearing 2nd gear 1 $10.68
13 088311239A synchroniser ring 1st/2nd gear with operating sleeve 1 -
14 088311311D spring 1st/2nd gear 2 $3.23
15 088311313 detent 3 $12.44
16 088311257A shifting gear 1st gear 1 -
17 088311271A shifting gear 2nd gear 1 -
18 088311285A shifting gear 3rd gear 1 $179.29
19 088311287 circlip 1,65 1 $2.20
(19) 088311287A circlip 1,70 X $2.00
(19) 088311287B circlip 1,75 X $2.20
20 088311287 circlip 1,65 1 $2.20
(20) 088311287B circlip 1,75 X $2.20
(20) 016311344 circlip 1 -
21 016311295 synchroniser ring 1st gear 2nd gear 3rd gear 4th speed with operating sleeve 4 $39.99
22 088311301B synchronising hub 3rd/4th gear with operating sleeve 1 $283.70
23 088311245 detent 3 $2.02
24 088311311D spring 3rd/4th gear 2 $3.23
25 088311317 circlip 1,50 1 $3.11
(25) 088311317B circlip 1,56 X $3.11
(25) 088311317C circlip 1,62 X $2.20
26 088311327 circlip 1,50 1 -
(26) 088311327A circlip 1,55 X -
(26) 088311327B circlip 1,60 X -
27 088311351A shifting gear 4th speed 1 -
28 088311363AA circlip 2,34 1 $4.03
(28) 088311363AC circlip 2,36 X -
(28) 088311363AE circlip 2,38 X -
(28) 088311363AG circlip 2,40 X -
(28) 088311363AJ circlip 2,42 X -
(28) 088311363AL circlip 2,44 X -
(28) 088311363AN circlip 2,46 X -
(28) 088311363AQ circlip 2,48 X -
(28) 088311363AS circlip 2,50 X -
29 088311371E deep-groove ball bearing 1 $57.53
30 N0122922 circlip 68 x 2,5 1 $3.88
31 N90091301 washer 2 $1.10
32 N01023930 hexagon-head bolt m 8 x 18 2 $3.26
33 088311375 taper roller bearing 1 $174.99
34 088311391 shim 0,20 1 $6.80
(34) 088311391A shim 0,25 X $5.64
(34) 088311391B shim 0,30 X $6.80
(34) 088311391C shim 0,35 X $6.80
(34) 088311391D shim 0,40 X $6.80
(34) 088311391E shim 0,65 X $6.80
(34) 088311391F shim 0,90 X $6.80
(34) 088311391G shim 1,15 X $8.77
35 088311393 shim 0,24 1 -
(35) 088311393A shim 0,27 X -
(35) 088311393B shim 0,30 X -
(35) 088311393C shim 0,33 X -
(35) 088311393D shim 0,36 X -
(35) 088311393E shim 0,39 X -
(35) 088311393F shim 0,42 X -
(35) 088311393G shim 0,45 X -
(35) 088311393H shim 0,69 X -
(35) 088311393J shim 0,93 X -
(35) 088311393K shim 1,17 X -
(35) 088311393L shim 1,41 X -
36 088311519A axle g >> yr 20 02 9 1 -
(36) 016311519A axle g yr 21 02 9 >> 1 -
37 088311527A hexagon-head bolt g >> yr 20 02 9 1 -
38 088311529 reverse idler gear g >> yr 20 02 9 1 -
(38) 016311529D reverse idler gear g yr 21 02 9 >> 1 $456.05
39 088311533 bush 1 $5.84
40 016311853A retainer plate g yr 21 02 9 >> 1 -
41 088301291A shouldered bolt g yr 21 02 9 >> 1 $11.02
42 088301291A shouldered bolt m 8 x 16 g yr 21 02 9 >> 1 $11.02
