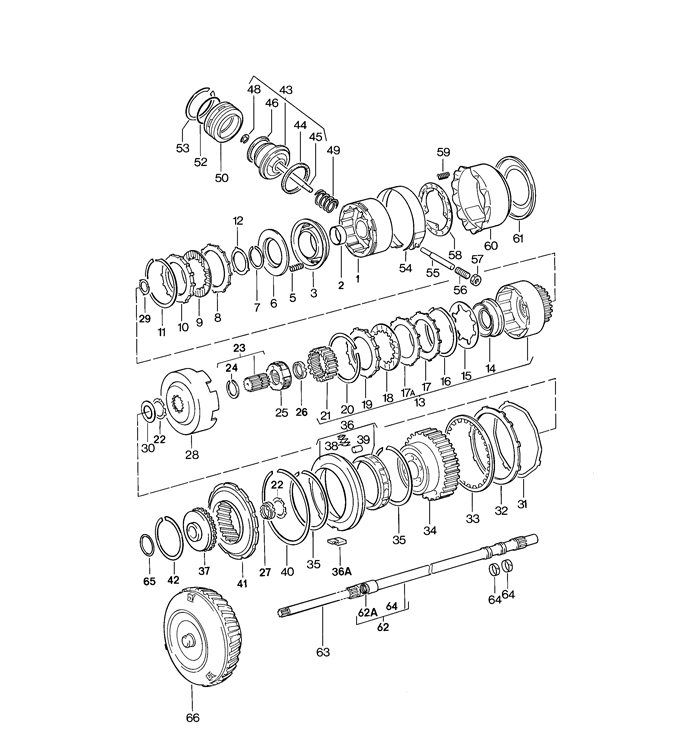

shift mechanism automatic transmission

POS Part Number Description Qty. Needed Price Model/Option Info
1 010323109C clutch drum 1 -
2 010323115 bearing sleeve 1 $7.71
3 010323121B piston 1 -
5 010323129A compression spring 24 $2.45
6 010323131A concave washer 1 $14.42
7 003323135A circlip 1 $1.96
8 010323139 disc with external splines 4 $39.80
9 010323141C disc with external splines 4 $32.55
10 010323153 pressure plate 1 $19.66
11 010323157 circlip 2,03 1 -
11 010323157A circlip 1,50 X $6.27
11 010323157B circlip 1,70 X -
11 010323157H circlip 2,30 X $4.37
11 010323157J circlip 2,50 X $5.21
12 010323161A thrust washer 60 1 -
13 010323205 forward clutch 1 -
14 010323217A piston 1 $95.44
15 010323229D cup spring forward clutch 1 $79.62
16 010323157 circlip 1 -
17 010323237A pressure plate 1 $29.71
17A 010323139 disc with external splines forward clutch 3 $39.80
18 010323241B inner disc 4 -
19 010323253A pressure plate 6,40 1 -
19 010323253B pressure plate 6,80 X -
19 010323253C pressure plate 7,20 X -
19 010323253D pressure plate 7,60 X -
19 010323253F pressure plate 6,00 X -
20 010323159B lock ring 1 -
21 010323273B ring gear 1 $197.00
22 010323291 thrust washer 1 -
23 010323285E sun gear 1 $249.15
24 N0424511 circlip 1 $1.10
25 010323303 planet-gear carrier 1 -
26 010323340D needle-roller bearing 1 $11.94
27 010323339D needle-roller bearing 1 $31.13
28 010323281 driving shell 1 $158.22
29 003323165 thrust washer 40 1 -
30 010323293B thrust washer 1 $3.56
31 010323295C spring washer 1 $42.14
32 010323227A disc with external splines 5 $66.63
33 010323231C inner disc 5 $67.33
34 090323805 planet-gear carrier 1 -
35 010323651 circlip 2 $2.41
(36) 010323383B 1st gear free wheel lock g >> rl 20 01 8 1 -
36 010323383C free wheel lock 1st gear g rl 21 01 8 >> 1 $653.86
36A 010323389E feather key 1 $9.46
37 087323373A hub 1 $53.74
38 010323643 compression spring 10 $1.47
39 N0263601 roller 10 $1.10
40 010323653A circlip 1 $5.86
41 090323363A ring gear 1 $419.65
42 090323369 circlip 1 $7.05
43 010323511K piston 1 -
44 003323525A sealing ring 1 $16.92
45 010323517D piston rod 1 $22.00
46 010323487C sealing ring 1 $10.70
48 010323541B lock washer 1 $1.18
49 010323505A compression spring 1 $3.82
50 087323529 lid 1 $134.95
52 010323533 round seal 3 $7.04
53 010323537A circlip 1 $7.44
54 010323461A brake band 1 $137.12
55 010323543A bolt 1 $9.61
56 010323455A adjusting screw 1 $1.58
57 N0111629 hexagon nut m 12 x 1,5 1 -
58 010323497C supporting plate 1 $11.48
59 010323489B compression spring 20 $1.25
60 010323493D pipe 1 $39.38
61 010323479A piston 1 $70.30
62 087323553A turbine shaft 1 $859.30
62A 087323559 gasket 1 $28.03
63 010323561A oil pump shaft 1 $47.87
64 010323557A piston ring 2 $33.43
65 010323345C adjusting shim 0,40 1 $2.93
65 010323346C adjusting shim 1,20 X $2.93
(66) 003323571J converter 1 $999.57 RL
