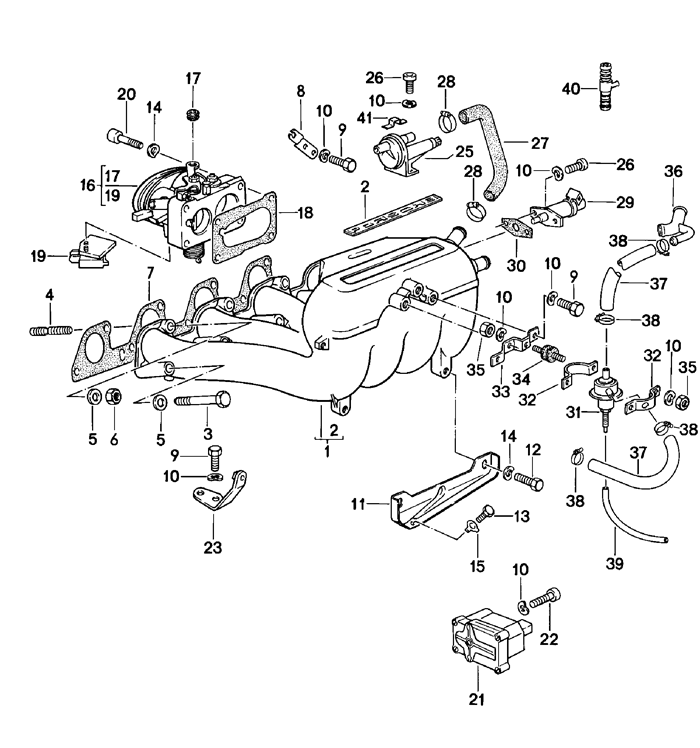

924 k-jetronic

POS Part Number Description Qty. Needed Price Model/Option Info
1 477133201 intake manifold 1 $896.50
2 93111040300 logo 1 -
3 N0103732 hexagon-head bolt m 8 x 72 4 $1.27
4 N0444115 stud m 8 x 30 4 $1.50
5 90002500703 washer a 8,4 8 $0.79
6 N0110088 hexagon nut m 8 4 $1.00
7 477133227 gasket 1 $3.97
8 47133239 support(LEFTHAND DRIVE) 1 -
9 N01021513 hexagon-head bolt m 6 x 15 4 $1.10
10 N0122265 spring washer a 6 14 $1.00
11 48129723 bracket 1 -
12 N0102407 hexagon-head bolt m 8 x 20 2 -
13 90007508703 hexagon-head bolt m 8 x 16 1 $1.19
14 N01224111 spring washer b 8 6 -
15 99903900100 tab washer 1 $3.75
(16) 047133063K flap connection 1 - VC
(16) 047133063L flap connection(AUT.) 1 - VC
(16) 047133063Q flap connection((CDN) (USA)) 1 - VC
(FROM YEAR 81 UP) -
(16) 047133063R flap connection(AUT. (CDN)) 1 - VC
((USA) FROM YEAR 81 UP) -
17 823721567 bearing sleeve 1 $2.23
18 049133073B gasket 1 $7.10
19 3927211 microswitch 2 $234.65 VC
(19) 477927211 microswitch(FROM YEAR 81 UP) 1 - VC
idle speed((CDN) (USA)) -
(19) 3927211 microswitch(FROM YEAR 81 UP) 1 $234.65 VC
full load((CDN) (USA)) -
(19) 93161721200 microswitch(FROM YEAR 81 UP) 1 $52.58 VC
acceleration((CDN) (USA)) -
20 N0147172 pan-head screw m 8 x 40 4 -
21 63133403 warm-up valve 1 $0.01 XJ XK VC
- 063133403X warm-up valve 1 $1,023.33 XJ XK VC
21 477133403X warm-up valve((CDN) (USA)) 1 $1,448.05 VC
(FROM YEAR 81 UP) -
- 477133403X warm-up valve((CDN) (USA)) 1 $1,448.05 VC
(FROM YEAR 81 UP) -
22 N0147441 pan-head screw m 6 x 32 2 $3.74
23 047133093A support 1 -
25 63133453 auxiliary air regulator(FOR YEAR 1980 & up) 1 - VC
25 035133453A auxiliary air regulator(FOR YEAR 1981 & up) 1 - VC
25 035133453A auxiliary air regulator(FROM YEAR 82 UP) 1 - VC
26 N0147032 pan-head screw m 6 x 18 4 $3.72
27 047133497B hose 1 -
28 99951234600 hose clamp lc 16 - 25 2 $2.02
29 93060610700 electric starting valve 1 $420.50 XJ XK VC
30 50906179 gasket 1 $1.00
31 047131013A vacuum limiter 1 $64.23
((AUS) (S)) -
((CH)) -
((J) (USA)) -
((CDN)) -
32 47131039 clip 2 -
33 047131455A bracket 1 -
34 99970323900 bonded rubber buffer 2 -
35 N02214812 hexagon nut m 6 4 $1.74
35 9000760100B hexagon nut m 6 4 $1.06
36 047131461A branch socket 1 -
- N0203591 hose * $9.35
37 9 x 2,5 mm 2 -
38 99951255400 hose clamp 12 - 20 4 $1.82
- N0203612 hose * $157.17
39 4 x 2,5 mm 1 -
40 477133563 t-socket((AUS) (S)) 1 -
((CH)) -
((J) (USA)) -
((CDN)) -
41 477133527 retaining clip 3 1 $2.93
