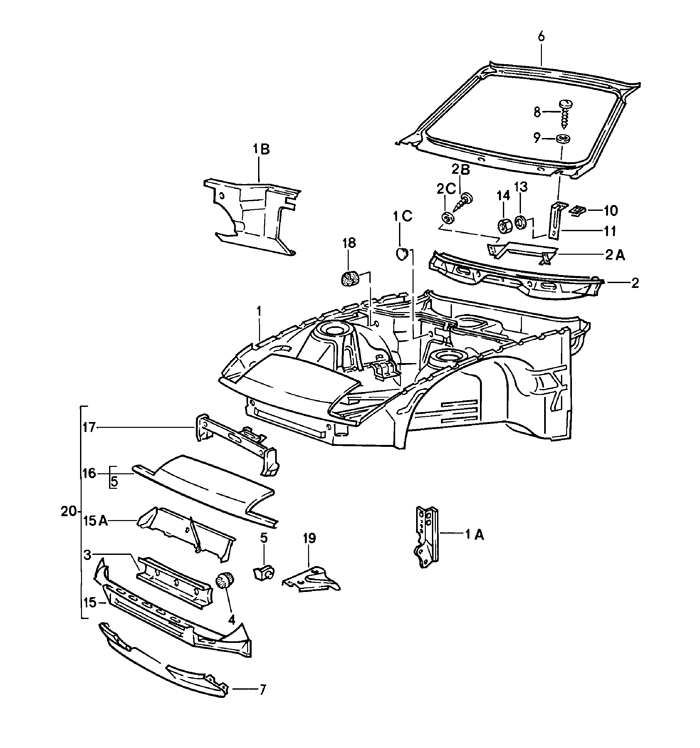

| POS |
Part Number |
Description |
Qty. Needed |
Price |
Model/Option Info |
|
(1)
|
477805021AT
|
body front section(LEFTHAND DRIVE) |
1 |
$1,264.99 |
924 |
|
|
|
f >>92cn4 02197((J)) |
|
- |
|
|
|
|
f >>92cn4 50831 without carbon canister use also:((CDN) (USA)) |
|
- |
|
|
|
|
stopper 999 703 103 40 |
2 |
- |
|
|
(1)
|
477805021BQ
|
body front section(LEFTHAND DRIVE) |
1 |
- |
924 |
|
|
|
f 92cn4 02198>>((J)) |
|
- |
|
|
|
|
f 92cn4 50832>>((CDN) (USA)) |
|
- |
|
|
(1)
|
477805021AT
|
body front section without carbon canister use also:(LEFTHAND DRIVE, UP TO YEAR 80) |
1 |
$1,264.99 |
TURBO |
|
|
|
stopper 999.703.103.40 |
2 |
- |
|
|
(1)
|
477805021AT
|
body front section(LEFTHAND DRIVE, FROM YEAR 81 UP) |
1 |
$1,264.99 |
TURBO |
|
|
|
f >>93cn1 00305((J)) |
|
- |
|
|
|
|
f >>93cn1 50331 without carbon canister use also:((CDN) (USA)) |
|
- |
|
|
|
|
stopper 999 703 103 40 |
2 |
- |
|
|
(1)
|
477805021BP
|
body front section(LEFTHAND DRIVE) |
1 |
- |
TURBO |
|
|
|
f 93cn1 00306>>((J)) |
|
- |
|
|
|
|
f 93cn1 50332>>((CDN) (USA)) |
|
- |
|
|
(1A)
|
477805057A
|
reinforcement |
1 |
$34.08 |
|
|
(1A)
|
477805058A
|
reinforcement |
1 |
$30.09 |
|
|
(1B)
|
94450202101
|
firewall(DRIVER SIDE, UP TO YEAR 80) |
1 |
$460.70 |
|
|
(1B)
|
94450202101
|
firewall(DRIVER SIDE) |
1 |
$460.70 |
|
|
(1B)
|
94450202200
|
firewall(PASSENGER SIDE) |
1 |
- |
|
|
2
|
94450207900
|
cross member(LEFTHAND DRIVE) |
1 |
$274.54 |
|
|
|
|
f >>92cn4 02197((J)) |
|
- |
924 |
|
|
|
f >>92cn4 50831(N) (USA)) |
|
- |
924 (CD |
|
|
|
f >>93cn1 00305((J)) |
|
- |
TURBO |
|
|
|
f >>93cn1 50331(CDN) (USA)) |
|
- |
TURBO ( |
|
(2)
|
94450207900
|
cross member(LEFTHAND DRIVE) |
1 |
$274.54 |
|
|
|
|
f 92cn4 02198>>((J)) |
|
- |
924 |
|
|
|
f 92cn4 50832>>(N) (USA)) |
|
- |
924 (CD |
|
|
|
f 93cn1 00306>>((J)) |
|
- |
TURBO |
|
|
|
f 93cn1 50332>>(CDN) (USA)) |
|
- |
TURBO ( |
|
2A
|
94457237700
|
bracket for heating |
1 |
$37.81 |
|
|
|
|
f 92cn4 02198>>((J)) |
|
- |
924 |
|
|
|
f 92cn4 50832>>(N) (USA)) |
|
- |
924 (CD |
|
|
|
f 93cn1 00306>>((J)) |
|
- |
TURBO |
|
|
|
f 93cn1 50332>>(CDN) (USA)) |
|
- |
TURBO ( |
|
2B
|
N0138833
|
tapping screw b 4,8 x 9,5 |
4 |
$1.10 |
|
|
|
|
f 92cn4 02198>>((J)) |
|
- |
924 |
|
|
|
f 92cn4 50832>>(N) (USA)) |
|
- |
924 (CD |
|
|
|
f 93cn1 00306>>((J)) |
|
- |
TURBO |
|
|
|
f 93cn1 50332>>(CDN) (USA)) |
|
- |
TURBO ( |
|
2C
|
90002508001
|
washer a 5,3 x 10 |
4 |
$1.10 |
|
|
3
|
94450207700GRV
|
cross member |
1 |
$94.88 |
|
|
4
|
99970319540
|
drain bush |
3 |
$1.12 |
|
|
5
|
477805567
|
bracket(DRIVER SIDE) |
1 |
$5.50 |
|
|
(5)
|
477805568
|
bracket(PASSENGER SIDE) |
1 |
$13.71 |
|
|
6
|
477805571C
|
windscreen frame |
1 |
$623.53 |
|
|
(7)
|
94450303501
|
spoiler |
1 |
$835.66 |
924 |
|
(7)
|
94450303500
|
spoiler |
1 |
- |
TURBO |
|
8
|
90014304607
|
tapping screw b 4,8 x 16 |
4 |
- |
|
|
9
|
90002500302
|
washer a 5,3 |
4 |
- |
|
|
9
|
90002508001
|
washer a 5,3 |
4 |
$1.10 |
|
|
10
|
N0154581
|
speed nut 4,8 x 14,8 |
4 |
- |
|
|
11
|
477805592
|
cowl panel support |
2 |
$9.36 |
|
|
13
|
N0116123
|
washer r 7 |
2 |
- |
|
|
13
|
N011612C
|
washer r 7 |
2 |
- |
|
|
14
|
90091004709
|
lock nut m 6 |
2 |
$1.00 |
|
|
(15)
|
94450304300
|
end plate lower |
1 |
- |
|
|
(15A)
|
94450206100
|
air duct |
1 |
$173.16 |
|
|
16
|
477805593
|
end plate upper |
1 |
$126.50 |
924 |
|
(16)
|
477805593A
|
end plate upper |
1 |
- |
TURBO, GT |
|
(17)
|
94450193301
|
lock carrier |
1 |
$132.25 |
924,TURBO,GT |
|
18
|
477805667
|
water drain valve |
2 |
$8.25 |
|
|
19
|
477805699
|
corner plate(DRIVER SIDE) |
1 |
$52.43 |
|
|
(19)
|
477805699A
|
corner plate(DRIVER SIDE) |
1 |
$99.88 |
M573YEARDESCRIPTION1976-1985AIR CONDITIONER |
|
-
|
477805693
|
support for horn |
1 |
$16.16 |
|
|
20
|
477805591
|
terminal piece complete |
1 |
$506.00 |
924 |
