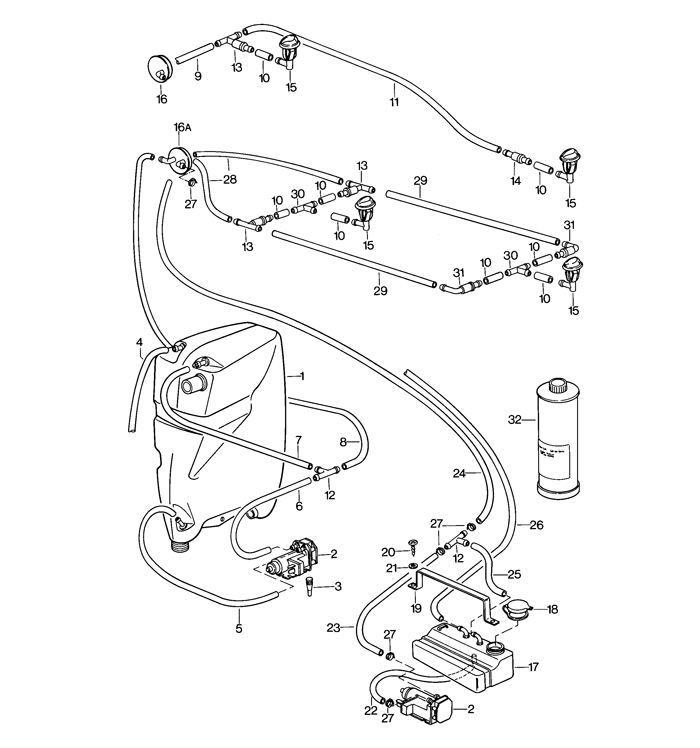

904-10

windscreen washer system

POS	Part Number	Description	Qty. Needed	Price
1	92852897501	water reservoir	1	$385.88
(1)	92852897501	water reservoir	1	$385.88
-	92864150101	tank gauge switch	1	-
-	92862873500	cap	1	$6.13
-	92862873700	sealing ring	1	-
2	92862807401	pump	2	$19.99
3	91462874100	stopper motor pump	3	$5.00
-	99918102940	hose	X	-
4		320 mm	1	-
5		620 mm	1	-
6		100 mm	1	-
7		400 mm	1	-
8		450 mm(LEFTHAND DRIVE)	1	-
-		1170 mm	1	-
9		160 mm	1	-
10		25 mm	1	-
11		650 mm	1	-
12	90162874920	t-piece(PASSENGER SIDE, L)	2	$15.05
13	91462843300	valve	3	$8.99
14	91462821500	valve	1	$4.55
15	92862807900	nozzle	2	$44.09
16	92852807303	hose connection(LEFTHAND DRIVE)	1	-
16	92752807303	hose connection with intensive windscreen washer(PASSENGER SIDE, L)	1	$19.80
16A	92852807304	hose connection(LEFTHAND DRIVE)	1	-
16A	92752807304	hose connection(PASSENGER SIDE, L)	1	-
17	92862809100	container	1	-
18	92852818303	lid	1	$29.87
19	92862818900	restraining strap	1	$11.83
20	90014303102	oval-head sheetmetal screw 4,2 x 9,5	2	$1.28
21	90002500203	washer	2	$1.10
-	99918172240	hose 4,6 x 1,8	*	$4.00
22		145 mm	1	-
23		300 mm	1	-
24		1860 mm	1	-
25		250 mm	1	-
26		1060 mm(LEFTHAND DRIVE)	1	-
26		2260 mm(PASSENGER SIDE, L)	1	-
27	PCG51206902	hose clamp	5	$12.98
-	99918102940	hose	X	-
		140 mm	2	-
		650 mm	2	-
30	90162874520	t-socket	2	-
31	477955481	valve	2	$15.21
32	00004400093	silicone remover 1000 ccm mounting parts motor pump((CDN) (J))	X	-
-	92762847100	support	1	$10.91
-	90151179121	rubber washer	2	$4.90
-	99950724000	speed nut	2	$1.56
-	N0203011	hose	2	$10.56
-	90002500203	washer	2	$1.10
-	90018701302	tapping screw 4,2 x 13	2	$1.17
-	92862875700	grommet	1	$5.23
