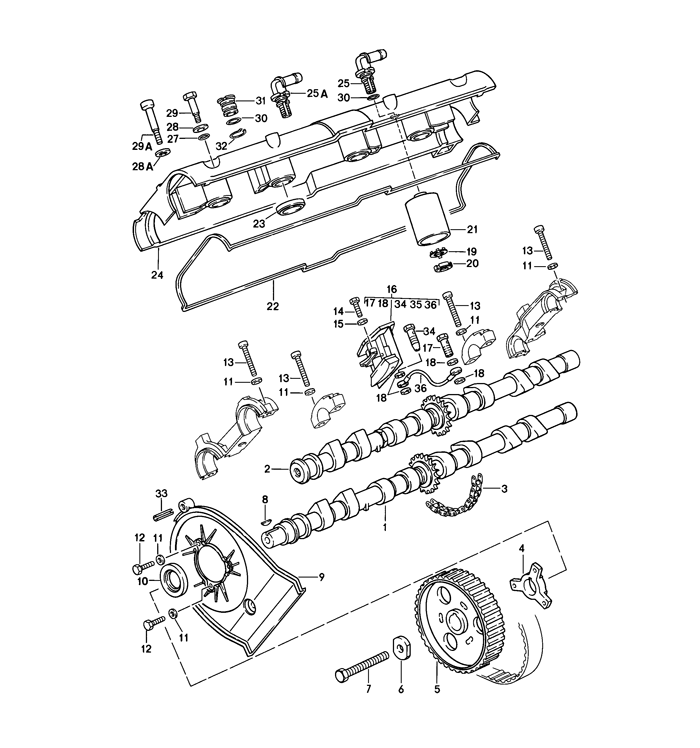

M28.43/44, M28.45/46 camshaft 85- driving mechanism 86

POS Part Number Description Qty. Needed Price Model/Option Info
1 92810529308 camshaft exhaust cylinders 1 - 4 1 $1,037.39
(1) 92810529407 camshaft exhaust cylinders 5 - 8 1 $1,037.39
2 92810529108 camshaft intake cylinders 1 - 4 1 $1,037.39
(2) 92810529208 camshaft intake cylinders 5 - 8 1 $190.00
3 94410550105 timing chain 2 $19.44
4 92810545900 hub 2 -
5 92810553004 camshaft timing gear 2 $558.79
6 92810545702 washer 2 -
7 N0104553 screw m 10 x 55 2 $5.90
8 90011705500 feather key 2 $1.69
9 92810512704 toothed belt covering(DRIVER SIDE) 1 -
(9) 92810514805 toothed belt covering(PASSENGER SIDE) 1 $151.22
10 99911328240 shaft sealing ring 2 $7.00
11 90002500703 washer a 6,4 6 $0.79
12 90007501402 hexagon-head bolt m 6 x 18 6 -
13 N0147432 pan-head screw m 6 x 30 48 $2.20
14 90006708901 pan-head screw m 6 x 22 2 $2.57
15 N0115247 washer a 6,4 2 $1.10
15 N01152427 washer a 6,4 2 $1.00
16 92810502808 chain adjuster cylinders 1 - 4 1 -
(16) 92810502708 chain adjuster cylinders 5 - 8 1 -
17 92810547604 banjo bolt 2 $39.89
(17) 92810547604 banjo bolt 2 $39.89
18 90012305030 sealing ring 4 $1.80
19 90016001500 tab washer b 18 b 18 2 -
20 90015900802 grooved nut m 18 x 1,5 2 $10.18
21 92810773101 oil separator cylinders 1 - 4 1 -
(22) 92810444706 gasket 2 $27.50
23 92810444308 sealing ring 8 $2.00
24 92810446106 cylinder head cover 2 $313.61
25 92810773300 adapter 1 -
25A 92810773302 adapter cylinders 1 - 4 only together with 928.104.461.06 1 -
27 99970173140 o-ring 8,5 x 2,5 22 $1.00
(28A) 92810441702 washer a 9,3 22 -
29A 92810448117 hexagon-head bolt 18 $43.71
(29A) 92810448118 hexagon-head bolt 6 $22.03
30 90017405640 o-ring 17 x 2,5 4 $1.85
31 92810448501 lid zyl.5 - 8 2 $10.65
32 N0124201 circlip 20 x 1,2 2 $2.53
33 99909510301 roll pin 1 $1.65
34 92810508101 check valve 1 $20.99
34 92810547604 banjo bolt 1 $39.89
(34) 92810547604 banjo bolt 1 $39.89
36 92810521302 pipeline cylinders 1 - 4(FOR YEAR 1985 & up) 1 $34.94 M28.43YEARDESCRIPTION1985-19864.7L 8-CYL (928 S (USA)(CANADA))1985-19854.7L 8-CYL (928 S M298)M28.44YEARDESCRIPTION1985-19864.7L 8-CYL (928 S (JAPAN))1985-19864.7L 8-CYL (928 S AUTO. TRANS (USA)(CANADA))1985-19854.7L 8-CYL (928 S M299)
36 92810521303 pipeline(FOR YEAR 1986 & up) 1 $25.83 M28.43YEARDESCRIPTION1985-19864.7L 8-CYL (928 S (USA)(CANADA))1985-19854.7L 8-CYL (928 S M298)M28.44YEARDESCRIPTION1985-19864.7L 8-CYL (928 S (JAPAN))1985-19864.7L 8-CYL (928 S AUTO. TRANS (USA)(CANADA))1985-19854.7L 8-CYL (928 S M299)
cylinders 1 - 4 - M28.45YEARDESCRIPTION1986-19864.7L 8-CYL (928 S M298)M28.46YEARDESCRIPTION1986-19864.7L 8-CYL (928 S (AUSTRALIA))1986-19864.7L 8-CYL (928 S M299)
(36) 92810521402 pipeline cylinders 5 - 8(FOR YEAR 1985 & up) 1 $39.48 M28.43YEARDESCRIPTION1985-19864.7L 8-CYL (928 S (USA)(CANADA))1985-19854.7L 8-CYL (928 S M298)M28.44YEARDESCRIPTION1985-19864.7L 8-CYL (928 S (JAPAN))1985-19864.7L 8-CYL (928 S AUTO. TRANS (USA)(CANADA))1985-19854.7L 8-CYL (928 S M299)
(36) 92810521403 pipeline(FOR YEAR 1986 & up) 1 $85.31 M28.43YEARDESCRIPTION1985-19864.7L 8-CYL (928 S (USA)(CANADA))1985-19854.7L 8-CYL (928 S M298)M28.44YEARDESCRIPTION1985-19864.7L 8-CYL (928 S (JAPAN))1985-19864.7L 8-CYL (928 S AUTO. TRANS (USA)(CANADA))1985-19854.7L 8-CYL (928 S M299)
cylinders 5 - 8 - M28.45YEARDESCRIPTION1986-19864.7L 8-CYL (928 S M298)M28.46YEARDESCRIPTION1986-19864.7L 8-CYL (928 S (AUSTRALIA))1986-19864.7L 8-CYL (928 S M299)
- 92810561401 spring guide 1 $2.75
m >> 81f 00515 - M28.43YEARDESCRIPTION1985-19864.7L 8-CYL (928 S (USA)(CANADA))1985-19854.7L 8-CYL (928 S M298)
m >> 81f 06040 - M28.44YEARDESCRIPTION1985-19864.7L 8-CYL (928 S (JAPAN))1985-19864.7L 8-CYL (928 S AUTO. TRANS (USA)(CANADA))1985-19854.7L 8-CYL (928 S M299)
- 92810550901 guide rail upper 1 $15.50
- 94410594900 guide rail repair kit 1 $136.42
