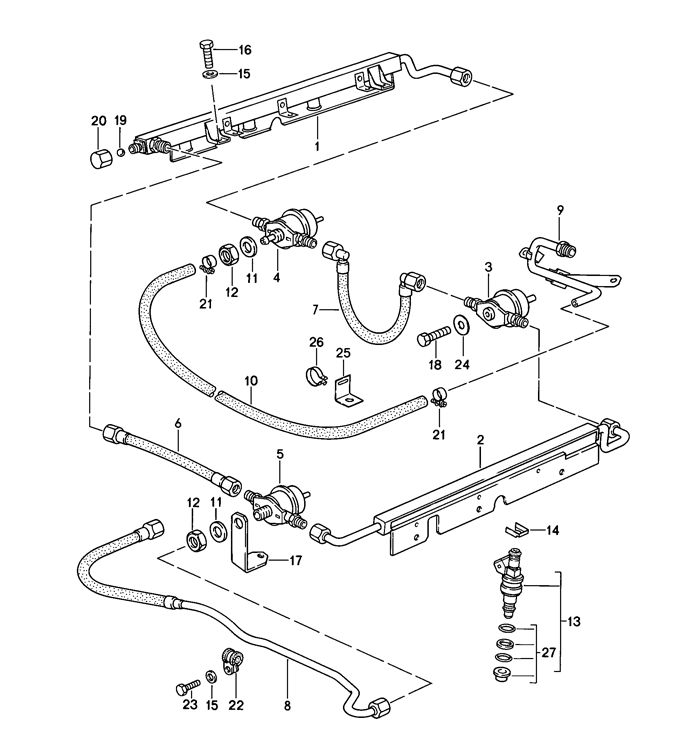

M28.43/44 lh-jetronic 85-

POS	Part Number	Description	Qty. Needed	Price
1	92811008011	distributor injection tube(PASSENGER SIDE)	1	$63.47
2	92811007911	distributor injection tube(DRIVER SIDE)	1	$305.04
3	93011060200	diaphragm damper	1	-
4	92811019801	pressure regulator	1	$503.95
5	92811020200	diaphragm damper	1	-
6	92811026901	fuel hose	1	$66.00
7	92811027100	fuel hose	1	-
8	92811036714	fuel line feed line	1	-
9	92811036913	fuel line return line	1	-
10	99918115250	hose	1	$32.43
		440 mm	*	-
11	90002502002	washer a 17	2	$3.74
12	90003401302	hexagon nut m 16 x 1,5	2	$9.09
12	90003401301	hexagon nut m 16 x 1,5	2	$8.18
13	92860612000	injector valve	8	$678.70
14	93011038801	retaining clip	8	$2.50
15	N0115247	washer a 6,4	5	$1.10
15	N01152427	washer a 6,4	5	$1.00
16	90007535501	hexagon-head bolt m 6 x 16	4	$1.50
17	92811052501	support	1	$7.63
18	N01023714	hexagon-head bolt m 8 x 12	1	$2.97
19	90010802200	ball 9 mm	1	$1.69
20	92811047504	cap nut m 12 x 1,5	1	-
21	PCG51216002	hose clamp s 13/9	2	$6.18
22	99951111603	clamp	1	$7.59
		hexagon-head bolt	1	-
22	99951111603	clamp	1	$7.59
		hexagon-head bolt	1	-
23	99907200501	hexagon-head bolt	1	$1.06
24	94411031200	washer	1	$5.78
25	477971881A	retaining bracket	1	$7.41
26	113142261A	clip	1	$1.76
27	94411090100	gasket set	8	$11.55
