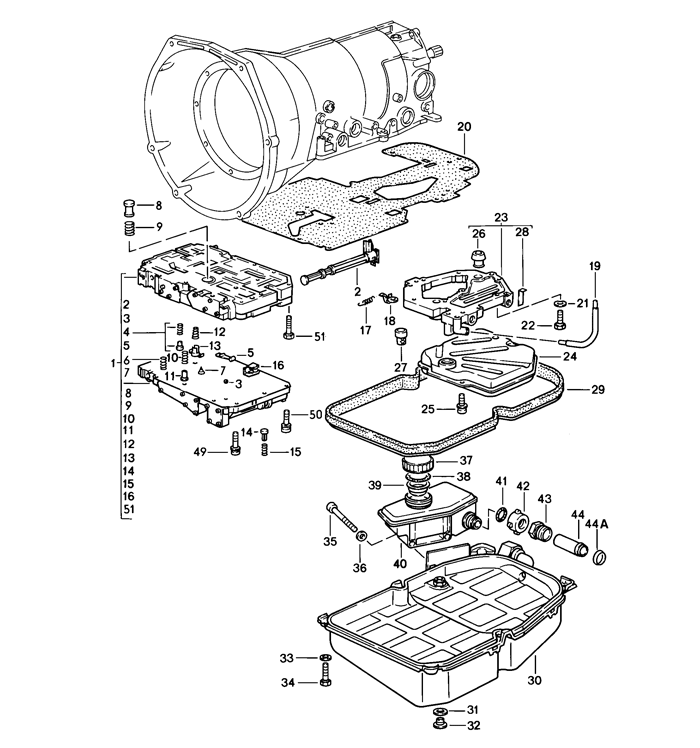

A28.01/02/03, A28.04/05/06, A28.07/08/09, A28.11 automatic transmission 4th speed slide-valve gearbox

POS Part Number Description Qty. Needed Price Model/Option Info
1 7222702007X shift-valve body a >> 547 628 1 $619.63 A28.01/04
1 7222702507 shift-valve body together with temperature restrictor 126 270 105 0 a 547 629 >> 696 928 1 - A28.04/07
1 7222702507 shift-valve body 1 - A28.07/08
a 696 929 >> - A28.09/11
1 7222702507 shift-valve body 1 - A28.02/03
- A28.05/06
2 1262700570 regulating valve 1 $51.61
3 1169910029 ball 18 $3.52
4 1262700470 slide 1 $11.28
5 1262701489 valve 1 $3.50
6 7229930801 spring 1 $5.25
7 1159931505 spring 1 $4.51
8 1262771936 valve 1 $4.51
9 1269932002 spring 1 $2.45
10 1159932804 spring 1 $1.10
11 1262701989 valve 1 $19.72
12 1269936903 spring 1 $1.96
13 1262772236 valve 1 $2.10
14 1262772636 valve 1 $1.10
15 1269937303 spring 1 $39.26
16 1262701789 valve 1 $4.02
17 7229930010 spring 1 $24.16
18 7222780040 retaining bracket 1 $2.62 A28.01
19 1262770047 oil tube 1 $9.28
20 1262771080 sealing ring 1 $18.40
21 N0122265 spring washer b 6 9 $1.00
22 N0102203 hexagon-head bolt 9 -
23 7222700305 lid 1 $131.00
24 1262770295 oil filter 1 $7.78
25 96030791100 combination screw m 5 x 12 3 -
26 1262700589 valve 1 $35.10
27 1262700198 strainer 2 $6.05
28 1262770073 lock 24 mm 1 $1.10
29 1262711080 gasket 1 $3.45
(30) 96030703104 oil pan a >> 16e 01141 1 $291.98 A28.01
30 7222700912 oil pan a 16e 01142 >> 1 $1,000.67 A28.01/04
30 7222700912 oil pan 1 $1,000.67 A28.02/03
- A28.05/06
30 7222700912 oil pan 1 $1,000.67 A28.02/03
- A28.05/06
(30) 7222701112 oil pan(FOR YEAR 1986 & up) 1 $722.16 A28.07/08
(FOR YEAR 1986 & up) - A28.09/11
31 90012306230 gasket 1 $1.54
32 96030791200 screw plug 1 $1.69
33 90002500703 washer a 8,4 6 $0.79
34 N01024425 hexagon-head bolt m 8 x 30 6 $2.00
35 N0147492 pan-head screw 2 $1.87
(35) 90006700802 pan-head screw(FROM YEAR 86 UP) 2 $1.00 A28.07/08
m 6 x 40(FROM YEAR 86 UP) - A28.09/11
(35) 90006700803 pan-head screw(FROM YEAR 86 UP) 2 $1.85 A28.07/08
m 6 x 40 - A28.09/11
36 90015100603 washer b 6,4 2 $1.00
37 477321481 screw-on cap 1 $12.00
(37) 96030748100 threaded cover(FOR YEAR 1986 & up) 1 $27.21 A28.07/08
(FOR YEAR 1986 & up) - A28.09/11
38 477321483A gasket 1 $11.76
39 477321479A strainer 1 -
(40) 96030747501 filling container a >> 16e 01141 1 - A28.01
40 96030747502 filling container a 16e 01142 >> 1 - A28.01/04
40 96030747502 filling container 1 - A28.02/03
- A28.05/06
(40) 96030707500 filling container(FOR YEAR 1986 & up) 1 $123.05 A28.07/08
(FOR YEAR 1986 & up) - A28.09/11
41 477321487 o-ring X $17.00
42 477321485 union nut 1 $13.01
43 011321387A cap screw 1 $24.26
(44) 96030740701 filler tube a >> 16e 01141 1 $17.51 A28.01
44 96030740703 filler tube a 16e 01142 >> 1 $11.43 A28.01/04
44 96030740703 filler tube 1 $11.43 A28.02/03
- A28.05/06
44A 011321388A cutting ring 1 $7.04
45 96030704101 support a >> 16e 01141 1 $1.86 A28.01
46 N0102085 hexagon-head bolt m 6 x 8 a >> 16e 01141 3 - A28.01
47 90015100603 washer b 6,4 a >> 16e 01141 2 $1.00 A28.01
48 99907200501 hexagon-head bolt m 6 x 12 a >> 16e 01141 2 $1.06 A28.01
49 96030791300 combination screw m 6 x 55 12 -
50 96030791400 combination screw m 6 x 50 3 -
51 90001400602 pan-head screw m 5 x 30 service solution hard shift jolts 2 $5.21
- 7222703007 shift-valve body 1 -
- 1262779614 intermediate plate 1 $58.52
- 1262771080 gasket 1 $18.40
- 1262701050 temperature restrictor 1 $7.04
- 1262709279 pressure control valve 1 $61.00
