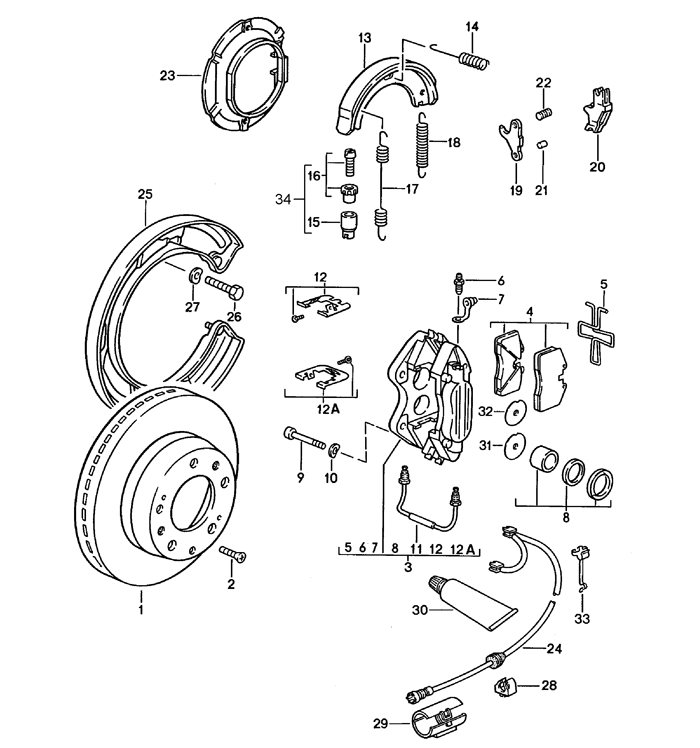

disc brake rear GR.4 NR. 1/89

POS Part Number Description Qty. Needed Price Model/Option Info
1 95135204101 brake disc 2 $75.79
2 90026904701 countersunk-head screw m 6 x 12 4 $0.50
3 92835242100 fixed calliper(DRIVER SIDE, UP TO YEAR 88) 1 $567.71
3 92835242103 fixed calliper(DRIVER SIDE, FROM YEAR 89 UP) 1 $264.50
(3) 92835242200 fixed calliper(PASSENGER SIDE, UP TO YEAR 88) 1 -
(3) 92835242203 fixed calliper(PASSENGER SIDE, FROM YEAR 89 UP) 1 $1,524.23
(4) 96535293904 brake pad repair set without asbestos use also: mounting parts 1 $39.00
5 95135295000 expanding spring 2 $100.46
6 93035191900 ventilation valve 2 $22.25
7 93035192701 dust boot 2 $3.05
8 95135291900 gasket set $ 30 mm(UP TO YEAR 88) X $85.04
8 95135291911 gasket set $ 30 mm(FROM YEAR 89 UP) X $72.97
(8) 95135291901 repair kit $ 28 mm(UP TO YEAR 88) X $125.69
(8) 95135291910 gasket set $ 28 mm(FROM YEAR 89 UP) X $73.00
9 90008214501 hexagon-head bolt m 12 x 1,5 x 37 x 20 4 $9.69
10 90002801403 spring washer b 12 4 $1.25
11 95135297100 connecting line 2 $199.40
12 99335295900 repair kit X $61.82
12A 99335295901 repair kit X $61.82
13 99635299300 repair kit 4 $84.50
(13) 99735299302 repair kit 1 set only together with compression spring 996.352.741.00 adjusting screw 993.352.071.00 1 $60.00
14 92835295702 compression spring 4 $9.25
(14) 99635274100 compression spring only together with repair kit 997.352.993.02 4 $18.70
15 91135294400 support bush 2 $12.06
16 91135209800 adjusting screw 2 -
17 90135295410 return spring 2 $7.70
18 90135293210 return spring 2 $6.50
19 99335207300 push-button lock 2 -
20 99335207300 push-button lock 2 -
21 99335273700 bolt 2 $1.95
22 92835244700 articulated bolt 2 $11.04
23 92835208101 brake mounting plate 2 -
24 92861231302 warning contact(UP TO YEAR 88) 2 $3.76
(24) 92861236301 warning contact(FOR YEAR 1989 & up) 2 $8.45
(24) 92861236301 warning contact(FROM YEAR 90 UP) 2 $8.45
- 92861252901 clip 4 $5.02
- 92861240900 clip 6 $6.17
- 92861253100 push-on connector(DRIVER SIDE) 1 $9.53
- 92861253200 push-on connector(PASSENGER SIDE) 1 -
25 92835281305 protective plate(DRIVER SIDE, UP TO YEAR 88) 1 $99.26
25 92835281305 protective plate(DRIVER SIDE, FROM YEAR 89 UP) 1 $99.26
(25) 92835281405 protective plate(PASSENGER SIDE, UP TO YEAR 88) 1 $99.26
(25) 92835281405 protective plate(PASSENGER SIDE, FROM YEAR 89 UP) 1 $99.26
26 99907200501 hexagon-head bolt m 6 x 12(UP TO YEAR 88) 6 $1.06
26 99907200501 hexagon-head bolt m 6 x 12 6 $1.06
26 90037803001 hexagon-head bolt m 6 x 20(FROM YEAR 89 UP) 4 $1.10
27 N0122265 spring washer b 6 6 $1.00
28 92861240900 clip 6 $6.17
29 92861253101 push-on connector(DRIVER SIDE) 2 $9.53
(29) 92861253100 push-on connector(PASSENGER SIDE) 2 $9.53
30 00004311700 brake cylinder paste 1 50-g tube X -
31 99635208600 damping plate $ 30 mm(FROM YEAR 89 UP) 4 $10.96
32 99635208600 damping plate $ 28 mm only together with 928.352.421/422.01(FROM YEAR 89 UP) 4 $10.96
(31) 92835209610 damping plate $ 30 mm(UP TO YEAR 88) 4 $12.21
(32) 92835209611 damping plate only together with 928.352.421/422.00(UP TO YEAR 88) 4 $12.21
33 92861236100 cable holder(FROM YEAR 89 UP) 2 $5.00
34 99335207100 adjusting screw only together with repair kit 997.352.993.02 2 -
