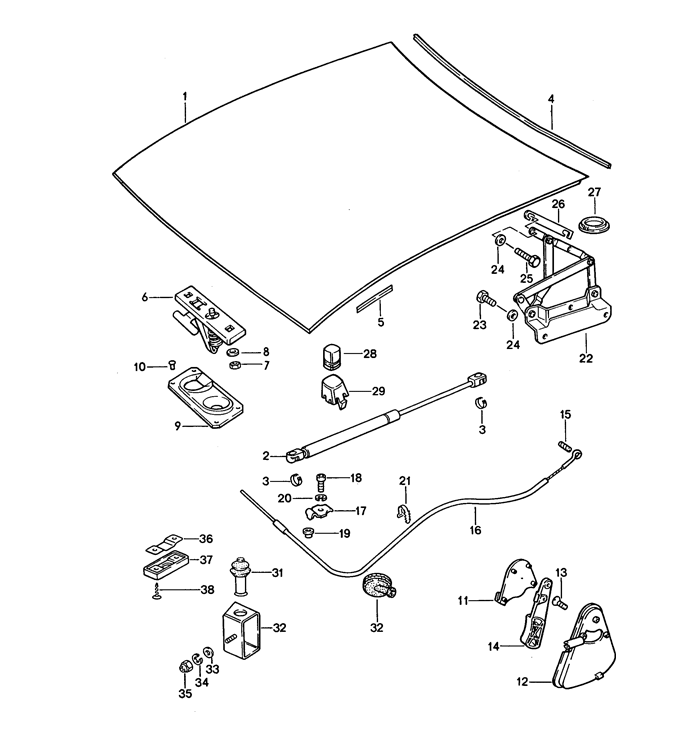

bonnet installation parts

POS Part Number Description Qty. Needed Price Model/Option Info
1 92851100504GRV bonnet 1 $925.74
92851100504GRV prime coated $925.74
2 92851113903 gas-pressure spring 2 $27.00
3 90016901602 clip 4 $1.24
4 92851114103 gasket 1 $14.07
5 92850455103 gasket lateral 2 $14.73
6 92851102903 lid lock upper part 1 -
7 N02214812 hexagon nut m 6 2 $1.74
7 9000760100B hexagon nut m 6 2 $1.06
8 90022300302 washer 6,4 2 $1.24
9 92851102702 lid lock lower part 1 -
10 99919012830 blind rivet 4,8 x 7,4 4 $1.60
11 9285111430270B cover 1 $14.74
9285111430270B black $14.74
12 9285111730270B cup 1 $9.50
13 90024903101 countersunk-head screw m 6 x 15 2 $3.61
14 9285111750270B pull handle 1 -
15 90019701800 roll pin 4 x 12 1 -
16 92850403700 wire pull(LEFTHAND DRIVE) 1 $110.94
17 92851154102 clamping piece 1 -
18 90006700802 pan-head screw m 6 x 12 1 $1.00
18 90006700803 pan-head screw m 6 x 12 1 $1.85
19 92851154302 sleeve 1 $2.67
20 90002700403 lock ring a 6 1 $1.00
21 99951300740 tie-wrap 1 $2.50
22 92851104104 lid hinge(DRIVER SIDE) 1 $209.00
(22) 92851104204 lid hinge(PASSENGER SIDE) 1 $199.03
23 N01023714 hexagon-head bolt m 8 x 12 6 $2.97
24 90002500703 washer 8,4 10 $0.79
25 90007530908 hexagon-head bolt m 8 x 20 4 $3.37
26 92851141902 compensating plate X $5.98
27 92851132103 cap 2 $5.75
28 99970313240 rubber buffer 2 $40.13
29 92851120302 support 2 $2.63
30 111957861 rubber sleeve 1 $4.90
31 92861317300 contact switch 1 -
32 92863702100 switch housing 1 $41.06
33 90015102703 washer a5,3 1 $1.50
34 N0120053 lock ring b 5 1 $1.00
35 90007609101 hexagon nut m 5 1 $1.00
36 92863712100 protection cap 1 $5.52
37 92863712300 pressure plate 1 $9.77
38 N0140986 tapping screw 2 $1.46
