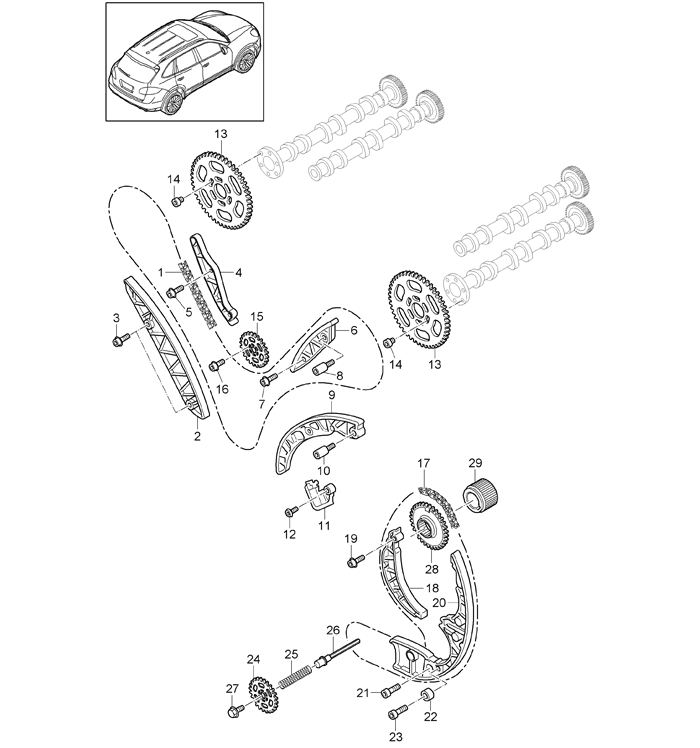

MCN.RB, MCR.CA/CB valve control

POS	Part Number	Description	Qty. Needed	Price	Model/Option Info
(1)	95810516911	timing chain(FROM YEAR 13 UP)	1	$339.44
2	95810506500	guide rail	1	$25.64
3	95810542600	guide pin	2	$5.37
4	95810506600	guide rail	1	$25.64
5	95810542600	guide pin	2	$5.37
6	95810506700	guide rail	1	$25.64
7	95810542600	guide pin	1	$5.37
8	95810542610	guide pin	1	$5.37
9	95810506800	guide rail	1	$66.37
10	95810542610	guide pin	1	$5.37
(11)	95810546712	chain adjuster	1	-
12	N10124306	oval-head screw m 6 x 20	2	$1.50
13	95810518110	sprocket camshaft z = 48	2	$48.86
14	N91052201	pan-head screw m 8 x 12	10	$2.48
15	95810133300	sprocket balance shaft	1	$36.03
16	N91048802	pan-head screw m 8 x 20	3	$2.72
17	95810517000	timing chain	1	$251.77
18	95810506900	guide rail	1	$42.57
19	WHT005189	outer hexagon round screw m 6 x 29,5 with guide sleeve	1	$8.57
(20)	95810550721	chain adjuster(FROM YEAR 13 UP)	1	-
21	N10124306	oval-head screw m 6 x 20	6	$1.50
22	95810553510	spacer sleeve 6 x 15,5 x 8	1	$1.36
23	N10124306	oval-head screw m 6 x 20	1	$1.50
24	95810711410	sprocket oil pump	1	$36.03
25	95510548100	compression spring	1	$1.10
26	95810732010	drive shaft oil pump	1	$116.68
27	N90893202	hexagon-head bolt m 10 x 20	1	$2.98
(28)	95810522211	sprocket high-pressure pump	1	-	MCN.RB
29		flange sprocket high-pressure pump see illustrations 1/07/37 pos.18	1	-
