105-07

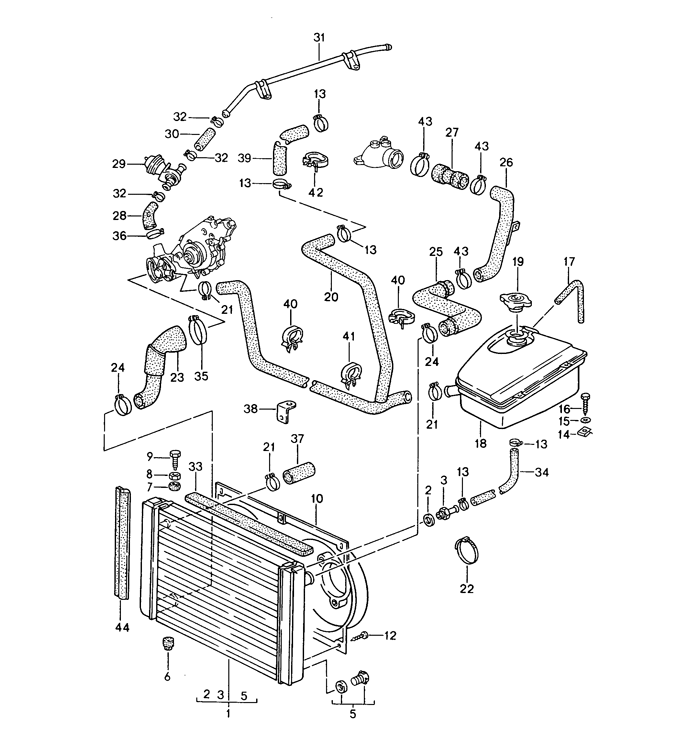

M44.41 water cooling

POS	Part Number	Description	Qty. Needed	Price
1	95110603103	radiator	1	$505.74
2	94410692800	sealing ring	1	$4.96
3	94410692700	screw socket	1	$5.60
5	94410635301	screw plug	1	$5.00
6	95110610700	rubber mounting	2	$5.50
7	95110605300	rubber mounting	2	$11.00
8	90007606402	hexagon nut	2	$1.00
9	90004600402	hexagon-head bolt	2	$3.48
10	95110614300	airscoop	1	$172.50
12	90018711101	combination screw 6,3 x 12	6	$1.65
13	9002720020B	hose clamp 10 - 16	2	$4.71
14	477955461	speed nut	2	$2.35
15	N0115247	washer a 6,4	6	$1.10
15	N01152427	washer a 6,4	6	$1.00
16	N0901721	combination screw 6,3 x 19	2	$2.22
16	N0901726	combination screw 6,3 x 19	2	$3.10
17	94410625100	water hose	1	$4.00
18	94410612506	expansion tank	1	$169.50
19	94410625700	lid	1	$25.31
20	94410621702	water hose	1	$222.75
21	99951239200	hose clamp	5	$2.42
22	99951300340	tie-wrap	4	$3.43
23	95110623704	water hose	1	$8.23
24	99951250000	hose clamp 32 - 50	5	$1.82
25	94410623906	water hose	1	$10.65
26	94410609101	cooling water tube	1	$456.19
27	94410623501	water hose	1	$4.49
28	94410624104	water hose	1	$6.75
29	92857457303	disc valve	1	$26.99
30	94410625301	water hose	1	$25.50
31	94410624307	cooling water tube	1	$637.36
32	99951239100	hose clamp 16 - 25	3	$1.82
33	94455683700	sealing rubber	1	-
34	95110624901	water hose	1	$8.45
35	99951239000	hose clamp 60 - 80	1	$2.54
36	99951242102	hose clamp 23 - 35	1	$1.82
37	94410610302	cap	1	$12.82
38	477971881B	retaining bracket	1	$5.75
39	94410623602	water hose	1	$67.83
40	321971847B	clip	2	$1.78
41	321971847A	clip	1	$2.23
42	171971847A	clip	1	$7.10
43	99951238402	hose clamp 25 - 40	3	$1.82
44	94402511500	rubber seal	*	$37.19
		334 mm	2	-
