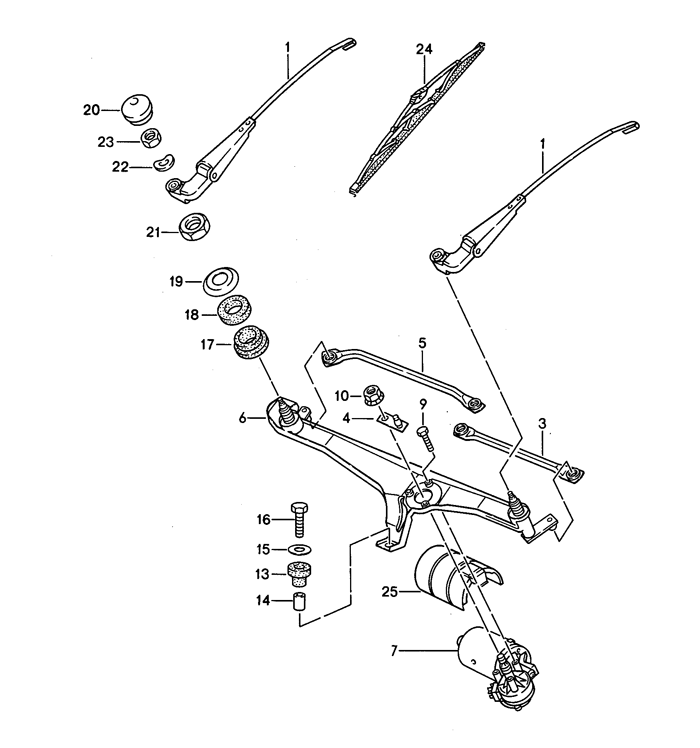

windscreen wiper system

POS	Part Number	Description	Qty. Needed	Price
1	94462802802	wiper arm(LEFTHAND DRIVE)	2	$50.00
3	94462803300	connecting rod short(LEFTHAND DRIVE)	1	$11.89
4	94462833000	crank	1	$12.42
5	94462803400	connecting rod long(LEFTHAND DRIVE)	1	$122.43
6	94462896100	frame(LEFTHAND DRIVE)	1	$44.28
7	94462830301	wiper motor	1	$872.44
9	90027800302	screw m 6 x 20	3	$2.27
10	N0122293	spring washer m 6	1	$1.10
13	94462812600	grommet	1	$4.68
14	94462812700	bush	1	$2.75
15	N90270701	washer b 6,4	1	$2.07
16	90007534102	combination screw m 6 x 20	1	-
16	90007534101	combination screw m 6 x 20	1	$1.23
17	94462812900	rubber bush	2	-
-	PCG62812900	rubber bush satz bestehend aus 2 x 94462812800 2 x 94462812900	4	$70.32
18	94462812801	rubber bush	2	$6.90
19	94462812502	flange washer	2	$39.39
(20)	94462830500	cap	2	$10.50
21	99903401302	hexagon nut m 18 x 1,5	2	$3.39
22	803955437	washer	2	$8.91
23	N0111513	hexagon nut m 8	2	-
24	92862890101	wiper blade	2	$5.78
24	92862890103	wiper blade	2	$14.06
25	9446281010201C	cover	1	$9.54
25		cover	1	-
	9446281010201C	satin black		$9.54
