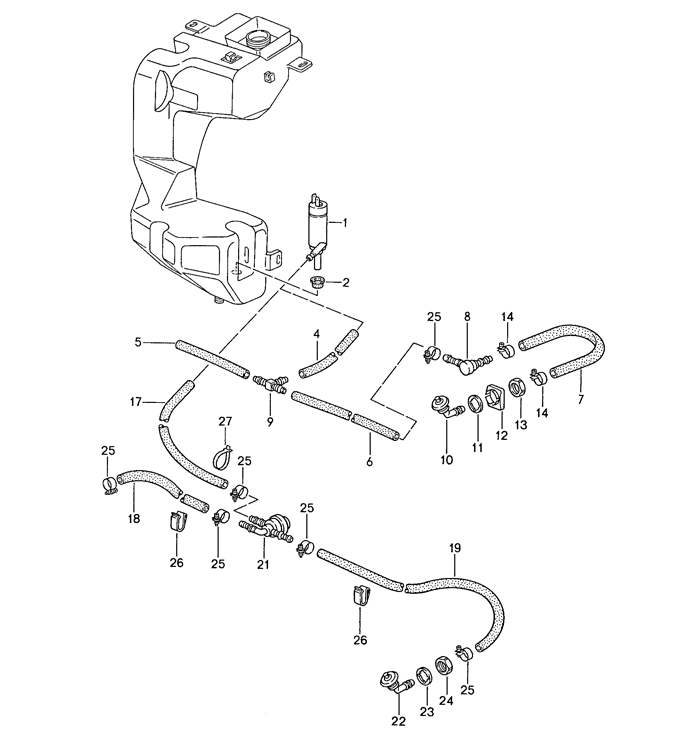

M288 headlight washer system

POS	Part Number	Description	Qty. Needed	Price	Model/Option Info
1	191955681	pump	1	$23.00
2	431955465A	gasket	1	$0.97
-	N0201261	pipe 12,5 x 1,25	*	$28.97
4		410 mm	1	-
5		60 mm	1	-
(5)		100 mm	1	-	M036YEARDESCRIPTION1985-1991IMPACT ABSORBERS FRONT AND REARM058YEARDESCRIPTION1985-1991IMPACT ABSORBERS, FRONT AND REAR
6		800 mm	1	-
(6)		890 mm	1	-	M036YEARDESCRIPTION1985-1991IMPACT ABSORBERS FRONT AND REARM058YEARDESCRIPTION1985-1991IMPACT ABSORBERS, FRONT AND REAR
8	477955183	pressure control valve	2	$23.47
9	113955975B	t-piece	1	$12.11
(10)	477955177	jet carrier	2	-	M036YEARDESCRIPTION1985-1991IMPACT ABSORBERS FRONT AND REARM058YEARDESCRIPTION1985-1991IMPACT ABSORBERS, FRONT AND REAR
13	N0191211	nut	2	$10.12
-	99918180640	hose 10 x 3	*	$13.62
17		700 mm	1	-
18		480 mm	1	-
19		550 mm	1	-
21	281955187	valve	1	$27.72
22	9116280710101C	jet carrier	2	$26.75
23	95162817300	desk pad	2	$7.15
24	N0191211	nut	2	$10.12
25	N0235702	hose clamp 15/9	6	$2.36
26	99965115902	cable clamp	6	$1.23
27	99951300340	tie-wrap 6,5 x 150	1	$3.43
