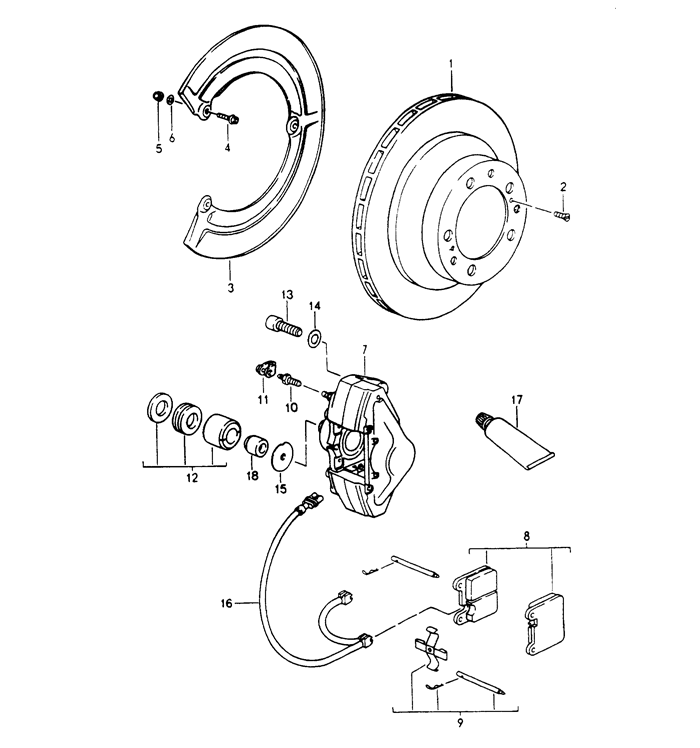

CARRERA 2, CARRERA 2, CARRERA 2 disc brake rear axle see tpi GR.6 NR.11 -91

POS	Part Number	Description	Qty. Needed	Price
1	95135204102	brake disc	2	$104.00
2	90026904701	countersunk-head screw	4	$0.50
3	96435280100	protective plate	2	-
4	90011910102	combination screw	6	$17.12
5	90091001009	lock nut	6	-
6	90015100603	washer a 6,4	6	$1.00
7	96435242503	fixed calliper without pad f >>96ms4 06629 f >>96ms4 11516 f >>96ms4 31058 f >>96ms4 40726 f >>96ms4 53141 f >>96ms4 62093(DRIVER SIDE)	1	$244.99
7	96435242505	fixed calliper without pad f 96ms4 06630>> f 96ms4 11517>> f 96ms4 31059>> f 96ms4 40727>> f 96ms4 53142>> f 96ms4 62094>>(DRIVER SIDE)	1	$256.38
(7)	96435242603	fixed calliper without pad f >>96ms4 06629 f >>96ms4 11516 f >>96ms4 31058 f >>96ms4 40726 f >>96ms4 53141 f >>96ms4 62093(PASSENGER SIDE)	1	$249.65
(7)	96435242605	fixed calliper without pad f 96ms4 06630>> f 96ms4 11517>> f 96ms4 31059>> f 96ms4 40727>> f 96ms4 53142>> f 96ms4 62094>>(PASSENGER SIDE)	1	$263.95
8	96435294903	brake pad repair set	1	$71.50
9	96435295901	mounting parts	1	$100.86
10	93035191900	ventilation valve	2	$22.25
11	93035192701	dust boot	2	$3.05
12	96435291900	gasket set	X	$93.75
13	90006717002	pan-head screw	4	$5.46
14	90002801403	spring washer	4	$1.25
15	99635208600	damping plate 28 mm $	4	$10.96
16	96461236501	warning contact use also: 964 352 959 01	2	$3.89
-	94461262700	support	2	$2.70
17	00004302000	optimoly 1 100-gramme tube	X	-
17	00004311700	brake cylinder paste 1 50-g tube	X	-
18	96435296301	vibration damper	4	$27.48
