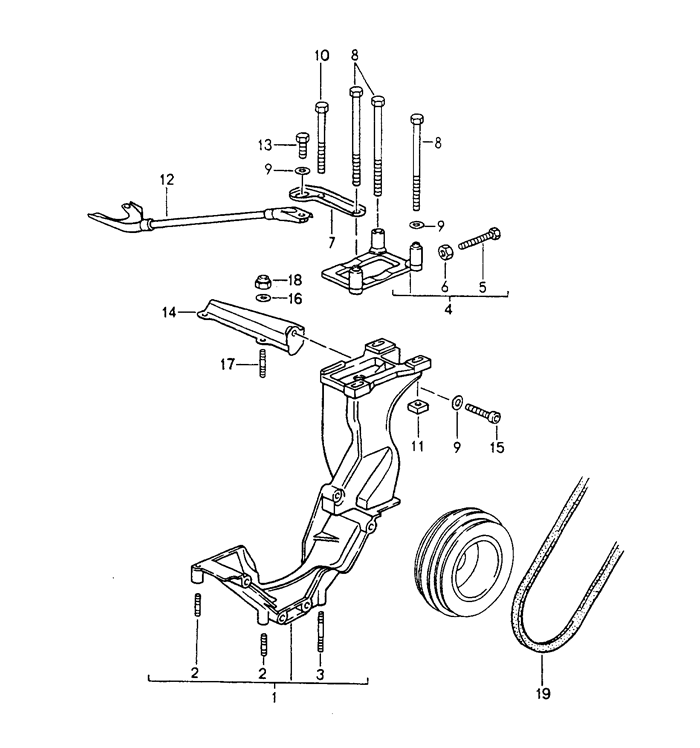

M64.01/02/03 compressor mounting driving mechanism

POS	Part Number	Description	Qty. Needed	Price
1	96412602600	bracket	1	$297.54
2	99906200202	stud bm 6 x 15	3	$1.69
3	99906209602	stud bm 6 x 40	1	$5.46
4	99312612301	compressor plate	1	$88.94
5	N0402371	hexagon-head bolt m 8 x 55 m 8 x 55	1	$3.43
6	90007606402	hexagon nut m 8	1	$1.00
7	96412612400	support	1	$28.06
8	90007405103	hexagon-head bolt m 8 x 125	3	$5.07
9	99902512501	washer 8,4 x 17 x 3,1	4	$2.20
10	N0103853	hexagon-head bolt m 8 x 85	1	$5.35
11	96412631100	nut m 8	4	$9.54
12	99312612800	strut(FOR YEAR 1989 & up)	1	$196.96
12	99312612800	strut	1	$196.96
13	90007508703	hexagon-head bolt m 8 x 16	1	$1.19
14	96412611401	fastening angle	1	$186.84
15	99921800902	pan-head screw micro-self-locking m 8 x 40	1	$8.55
16	90015100603	washer 6,4	2	$1.00
17	99906208502	stud bm 6 x 20	2	$3.27
18	99908409402	lock nut m 6	2	$1.00
19	99919235250	v-belt 12,5 x 1080(UP TO YEAR 92)	1	$6.75
(19)	99919236350	v-belt 12,5 x 1085	1	$14.20
