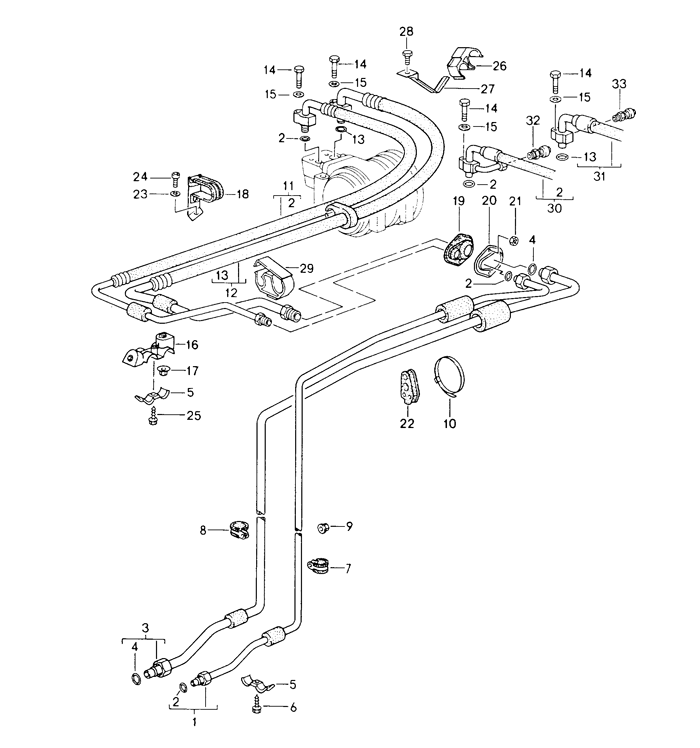

refrigerant circuit rear

POS Part Number Description Qty. Needed Price Model/Option Info
1 96457310500 refrigerant line(UP TO YEAR 92) 1 $226.58
(1) 96457310502 refrigerant line(FROM YEAR 93 UP) 1 $569.47
(1) 96457310502 refrigerant line 1 $569.47 SPEEDSTER
2 99970743441 o-ring 10,82 x 1,8(UP TO YEAR 92) 3 $1.00
2 99970743441 o-ring 10,6 x 2(FROM YEAR 93 UP) 3 $1.00
3 96457309802 intake pipe(UP TO YEAR 92) 1 -
(3) 96457309802 intake pipe(FROM YEAR 93 UP) 1 -
(3) 96457309802 intake pipe 1 - SPEEDSTER
4 99970753441 o-ring 17 x 1,8(UP TO YEAR 92) 2 $1.00
4 99970753441 o-ring 17 x 2(FROM YEAR 93 UP) 2 $1.00
5 96420730300 support(UP TO YEAR 90) 2 $7.34
5 96420730300 support(FROM YEAR 91 UP) 2 $7.34
6 N0901831 combination screw b 6,3 x 13(UP TO YEAR 90) 1 -
6 N0901831 combination screw b 6,3 x 16(FROM YEAR 91 UP) 1 -
7 99951121202 clip 14 x 15(UP TO YEAR 92) 1 $7.04
7 99951111801 clip 15 x 15(FROM YEAR 93 UP) 1 $5.46
8 99951114202 clamp 17 x 15(UP TO YEAR 92) 1 $3.78
8 99951106602 clamp 18 x 15(FROM YEAR 93 UP) 1 $5.35
9 99904900140 plastic nut t 5 1 $1.24
10 99951301040 tie-wrap 9 x 250 1 $3.03
11 96457309701 refrigerant line(UP TO YEAR 92) 1 $450.71 CARRERA 2/4
- TURBO-LOOK
11 96457309701 refrigerant line(FROM YEAR 93 UP) 1 $450.71 CARRERA 2/4
- TURBO-LOOK
(11) 96457309702 refrigerant line 1 $1,121.28 SPEEDSTER
(11) 96557309702 refrigerant line f >>96ns4 80191 1 - TURBO
(11) 96557309702 refrigerant line f 96ns4 80192>>(UP TO YEAR 92) 1 - TURBO
(11) 96557309702 refrigerant line - siehe - technische information - 1/95 6 zyl. -(FROM YEAR 93 UP) 1 - TURBO
12 96457309901 intake pipe(UP TO YEAR 92) 1 - CARRERA 2/4
- TURBO-LOOK
12 96457309901 intake pipe(FROM YEAR 93 UP) 1 - CARRERA 2/4
- TURBO-LOOK
(12) 96457309902 intake pipe 1 $543.36 SPEEDSTER
(12) 96557309900 intake pipe f >>96ns4 80191 1 - TURBO
(12) 96557309902 intake pipe f 96ns4 80192>>(UP TO YEAR 92) 1 - TURBO
(12) 96557309902 intake pipe(FROM YEAR 93 UP) 1 - TURBO
13 99970725140 o-ring 14 x 1,8(UP TO YEAR 92) 1 $1.00
13 99970725140 o-ring 14 x 2(FROM YEAR 93 UP) 1 $1.00
14 99906702802 hexagon-head bolt micro-self-locking m 8 x 32 2 -
15 90002500703 washer a 8,4 2 $0.79
16 99950735440 cable holder 2 x 28/40 1 $5.46
17 99904900740 plastic nut t 5 2 $0.61
18 96412601500 support(UP TO YEAR 90) 1 $98.74 CARRERA 2/4
(18) 96412601101 support(91 UP TO YEAR 92) 1 - CARRERA 2/4
- TURBO-LOOK
(18) 96412601102 support(FROM YEAR 93 UP) 1 $14.03 CARRERA 2/4
- TURBO-LOOK
19 96457355300 rubber boot 1 $7.74
20 96457356500 lid 1 $20.31
21 N02214812 hexagon nut m 6 2 $1.74
21 9000760100B hexagon nut m 6 2 $1.06
22 96420161500 rubber mounting 1 $17.95
23 N0115247 washer a 6,4(UP TO YEAR 90) 1 $1.10 CARRERA 2/4
23 N01152427 washer a 6,4 1 $1.00 CARRERA 2/4
23 90002500302 washer(FROM YEAR 91 UP) 2 - CARRERA 2/4
a 5,3 - TURBO-LOOK
24 90006700802 pan-head screw m 6 x 12 1 $1.00 CARRERA 2/4
24 90006700803 pan-head screw m 6 x 12 1 $1.85 CARRERA 2/4
24 90006711102 pan-head screw(FROM YEAR 91 UP) 2 - CARRERA 2/4
m 5 x 18 - TURBO-LOOK
25 99991908502 combination screw 6 x 22 1 $1.76
26 96457347100 support(UP TO YEAR 92) 1 $15.95 CARRERA 2/4
- TURBO-LOOK
(26) 96457347101 support(FROM YEAR 93 UP) 1 $3.58
27 96457347300 mounting 1 $31.44 CARRERA 2/4
support - TURBO-LOOK
28 N01021013 hexagon-head bolt 1 $1.00 CARRERA 2/4
m 6 x 10 - TURBO-LOOK
29 96457347500 support(PASSENGER SIDE) 1 $7.74 TURBO
(29) 96457347100 support(DRIVER SIDE) 1 $15.95 TURBO
30 96457309701 refrigerant line(FROM YEAR 93 UP) 1 $450.71 CARRERA2/4
- SPEEDSTER
30 96557309702 refrigerant line(FROM YEAR 93 UP) 1 - TURBO
31 96457309901 intake pipe(FROM YEAR 93 UP) 1 - CARRERA 2/4
- SPEEDSTER
31 96557309902 intake pipe(FROM YEAR 93 UP) 1 - TURBO
32 92857346600 valve(FROM YEAR 93 UP) 1 $40.80
33 99657346500 valve(FROM YEAR 93 UP) 1 $11.99
