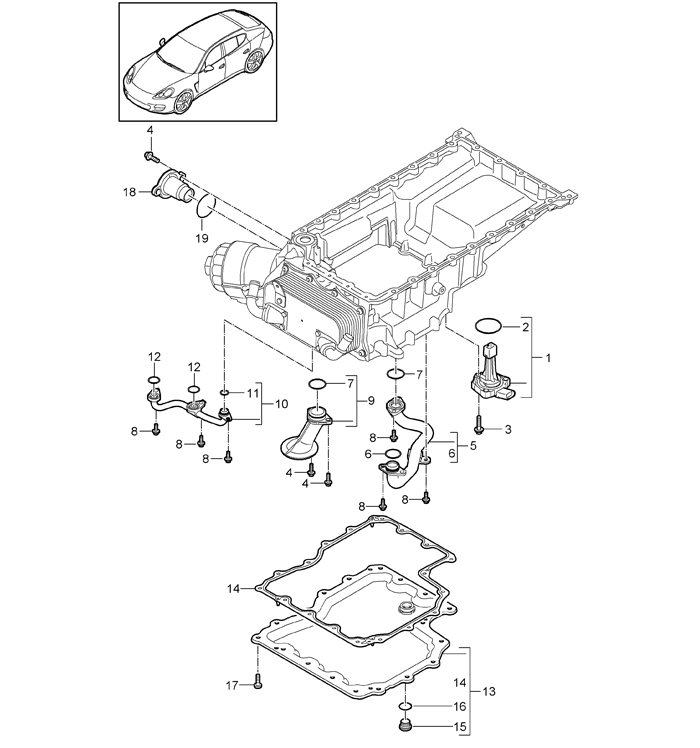

MCW.AA, MCX.NA, M46.20/40 suction tube oil pan

POS Part Number Description Qty. Needed Price Model/Option Info
1 94860616002 oil-level sender(UP TO YEAR 13) 1 $196.00
1 94860617000 oil-level sender(FROM YEAR 14 UP) 1 $191.88
2 038103196B gasket 1 $6.99
3 90038507201 torx screw bm 6 x 25 3 -
4 90038501901 torx screw m 6 x 20 4 -
5 94610703120 oil tube 1 $246.63
6 99970758540 o-ring 22 x 3 1 $7.89
7 99970754740 o-ring 28 x 3 2 $2.00
8 90038500901 torx screw m 6 x 16 8 -
9 94610703020 suction tube 1 $76.12
10 94610703321 oil pipe 1 $144.85
11 99970756840 o-ring 12 x 3 1 -
12 99970756740 o-ring 17 x 3 2 $3.84
13 94610701523 oil pan 1 -
(13) 94610701523 oil pan 1 -
14 94610727521 gasket 1 $81.38
15 90021902031 screw plug m 18 x 1,5 1 $5.90
16 90012310630 sealing ring a 18 x 24 1 $1.00
17 99907334401 round head screw m 6 x 20 17 -
18 94810731320 flange 1 $46.66
19 99970757040 o-ring 44,0 x 3,0 1 $7.59
