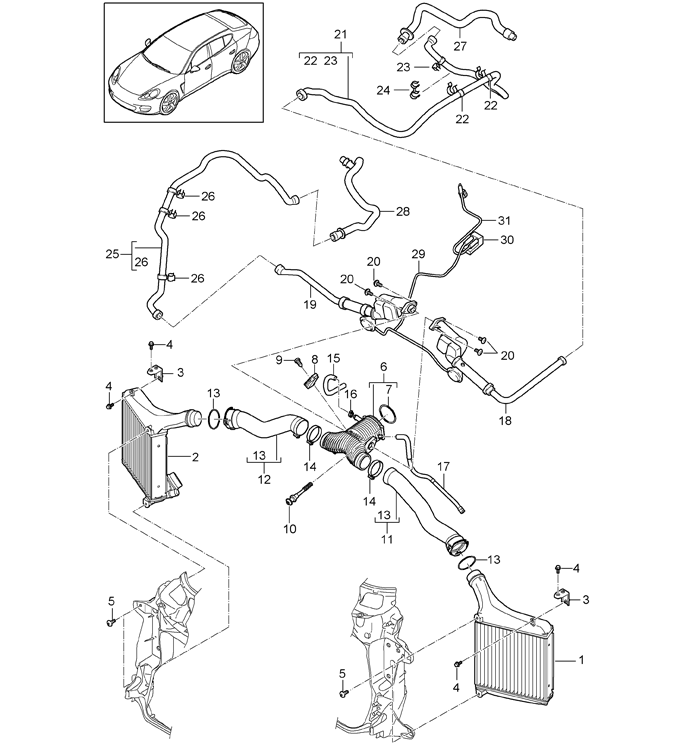

MCW.DA/FA charge air cooler pressure pipe

POS Part Number Description Qty. Needed Price Model/Option Info
1 97011020902 charge air cooler(DRIVER SIDE) 1 $940.20
(1) 97011020960 charge air cooler(DRIVER SIDE) 1 -
2 97011021002 charge air cooler(PASSENGER SIDE) 1 $869.37
(2) 97011021060 charge air cooler(PASSENGER SIDE) 1 $754.37
3 97011040970 support 2 -
4 90037803501 hexagon-head bolt m 6 x 16 6 $1.55
5 99907398130 oval-head screw aluminium m 6 x 14 4 -
6 97011014063 y-piece throttle body 1 $67.38
8 94660618000 pressure sensor 1 -
9 N10683901 oval-head screw 6 x 12 1 $1.10
10 oval-head screw 6 x 55 see illustrations 1/07/52 pos.9 4 -
11 97011017361 pressure pipe(DRIVER SIDE) 1 $162.79
12 97011017461 pressure pipe(PASSENGER SIDE) 1 $162.79
13 97011080300 sealing ring 54,9 x 9 2 $14.31
14 N10619801 hose clamp 45 - 65 x 12 2 $11.64
15 97011024660 vent hose 1 $49.89
16 N10198301 hose clamp 13,3 x 7 1 $2.83
(16) 95520147900 hose clamp 16 mount ventilation pipe 1 $2.28
17 vent hose see illustrations 2/02/92 pos.19 1 -
18 97011054161 line(DRIVER SIDE) 1 - MCW.DA
- #NAME?
(18) 97011054165 line(DRIVER SIDE) 1 $248.71 MCW.DA
- I0E1/176
(18) 97011024560 lid(DRIVER SIDE) 1 - I0E2
19 97011054261 line(PASSENGER SIDE) 1 - MCW.DA
- #NAME?
(19) 97011054265 line(PASSENGER SIDE) 1 $248.71 MCW.DA
- I0E1/176
(19) 97011024560 lid(PASSENGER SIDE) 1 - I0E2
20 N10473402 lens-head screw tp 6 x 20 4 $1.23
21 97011053101 line(DRIVER SIDE) 1 - I0E1
22 99950728440 line bracket 16/28 2 $6.17 I0E1
23 99950728540 line bracket 16/20 1 $4.19 I0E1
24 99950768940 hose holder 20/24,5 1 $3.84 I0E1/850/851
25 97011053200 line(PASSENGER SIDE) 1 $139.45 I0E1
26 99950728540 line bracket 16/20 3 $4.19 I0E1
27 97011052102 line(DRIVER SIDE) 1 $131.44 I0E1
28 97011052201 line(PASSENGER SIDE) 1 $131.44 I0E1
29 97011004661 vacuum line 1 - I0E1
30 7PP906270 change-over valve 1 $18.95 I0E1
31 97011004560 vacuum line 1 $26.98 I0E1
