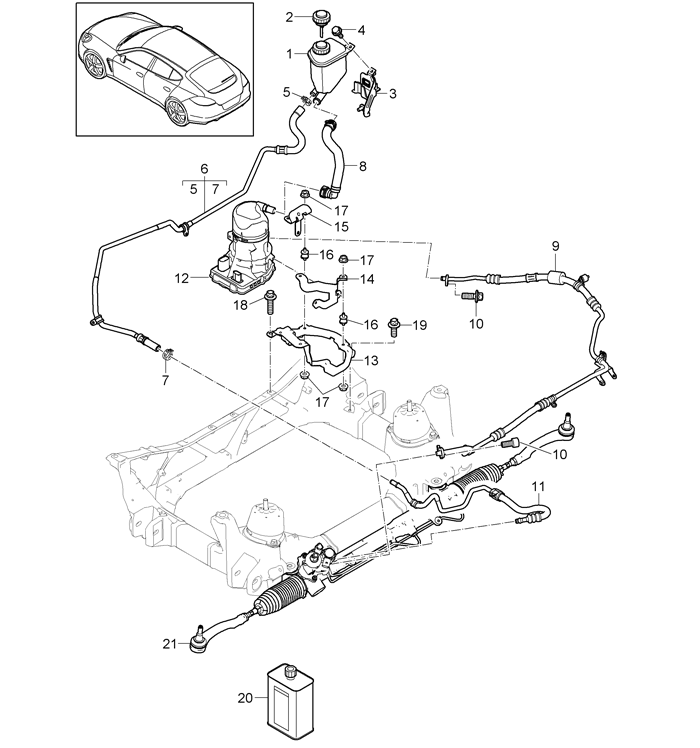

HYBRID power steering -13 lines power-steering pump electric

POS	Part Number	Description	Qty. Needed	Price	Model/Option Info
1	95531401520	oil tank	1	$95.00
2	95531414500	threaded cover oil tank	1	$16.21
3	97034735320	support oil tank	1	$38.75
4	90037803601	hexagon-head bolt m 6 x 12	3	$1.10
5	99951265409	hose clamp	1	$1.82
6	97034724122	return line connection point oil tank	1	$139.96
7	99951265209	hose clamp	1	$3.84
8	97034723121	intake pipe oil tank power-steering pump	1	$66.34
9	97034724324	pressure line steering gear power-steering pump	1	$271.21	I098
10	90038500101	torx screw m 8 x 20	1	-
(10)	90006706303	pan-head screw m 10 x 20	1	$3.84
11	97034723723	return line steering gear oil cooler	1	$132.69	I098
12	95831415502	power-steering pump electric	1	-
13	97034767122	retaining frame	1	$72.47
14	97034767320	support lateral	1	$18.93
15	97034767520	support upper	1	$18.93
16	95834757900	bonded rubber buffer	4	$21.73
17	90037701001	hexagon nut m 6	8	$1.10
18	90038501801	torx screw bm 8 x 45	1	$3.27
19	90038500101	torx screw bm 8 x 20	2	-
20		oil see illustrations 4/03/10	1	-
21		steering gear see illustrations 4/03/00	1	-
