| POS |
Part Number |
Description |
Qty. Needed |
Price |
Model/Option Info |
|

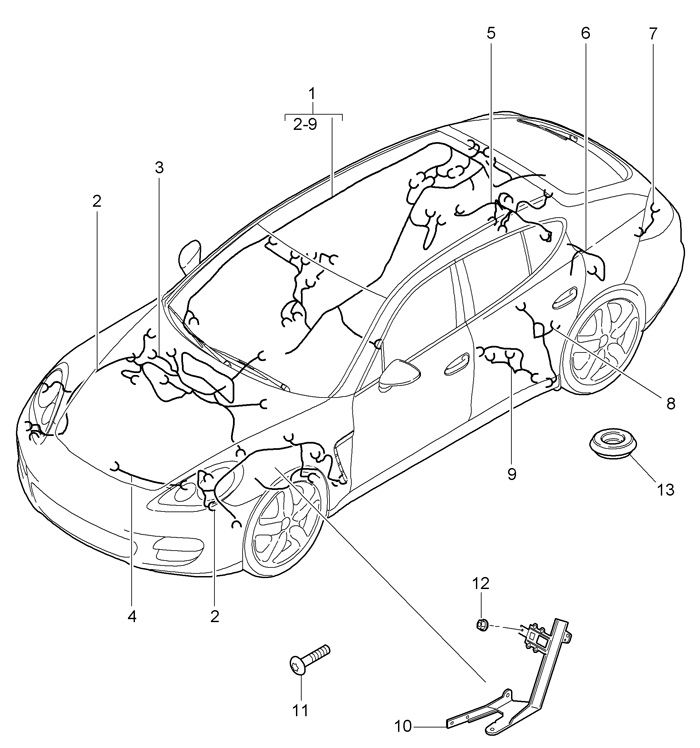

1
|
97061290100
|
wiring harness passenger compartment vehicle identification no. indicate |
1 |
$12,478.12 |
|
|
2
|
97061291300
|
wiring harness sub-part front it is necessary to rework(DRIVER SIDE) |
1 |
$824.71 |
|
|
(2)
|
97062391300
|
wiring harness sub-part front it is necessary to rework(DRIVER SIDE) |
1 |
$895.41 |
HYBRD |
|
(2)
|
97061293300
|
wiring harness sub-part front it is necessary to rework(DRIVER SIDE) |
1 |
$895.41 |
DIESEL |
|
(2)
|
97061291401
|
wiring harness sub-part front it is necessary to rework(PASSENGER SIDE, UP TO YEAR 12) |
1 |
$895.41 |
|
|
-
|
97062371000
|
wiring harness brake light switch and distance sensor it is necessary to rework |
1 |
$23.50 |
|
|
3
|
97061291900
|
wiring harness sub-part engine compartment it is necessary to rework |
1 |
$1,756.32 |
I098 |
|
(3)
|
97062391900
|
wiring harness |
1 |
$895.41 |
HYBRID |
|
|
|
sub-part engine compartment it is necessary to rework |
|
- |
I098 |
|
(3)
|
97061293100
|
wiring harness |
1 |
$1,756.32 |
DIESEL |
|
|
|
sub-part engine compartment it is necessary to rework |
|
- |
I098 |
|
(3)
|
97061291950
|
wiring harness sub-part engine compartment it is necessary to rework |
1 |
$1,756.32 |
I099 |
|
(3)
|
97062391950
|
wiring harness |
1 |
$895.41 |
HYBRID |
|
|
|
sub-part engine compartment it is necessary to rework |
|
- |
I099 |
|
(3)
|
97061293150
|
wiring harness |
1 |
$1,756.32 |
DIESEL |
|
|
|
sub-part engine compartment it is necessary to rework |
|
- |
I099 |
|
4
|
97061291500
|
wiring harness sub-part fan it is necessary to rework |
1 |
$211.83 |
|
|
(4)
|
97061291510
|
wiring harness sub-part fan it is necessary to rework |
1 |
$211.83 |
TURBO |
|
5
|
97061291600
|
wiring harness sub-part underbody it is necessary to rework |
1 |
$352.91 |
|
|
(5)
|
97061291610
|
wiring harness sub-part underbody it is necessary to rework(FROM YEAR 12 UP) |
1 |
$343.67 |
HYBRID |
|
6
|
97061291800
|
wiring harness sub-part underbody pasm it is necessary to rework |
1 |
$352.91 |
|
|
6
|
97061291810
|
wiring harness sub-part underbody pasm it is necessary to rework(FROM YEAR 12 UP) |
1 |
$343.67 |
HYBRID |
|
-
|
97061013100
|
tab washer connector pasm |
1 |
$1.35 |
|
|
7
|
97061292300
|
wiring harness sub-part rear it is necessary to rework(DRIVER SIDE, PASSENGER SIDE) |
2 |
$347.12 |
|
|
8
|
97061292500
|
wiring harness sub-part wheel housing tyre pressure monitoring it is necessary to rework(DRIVER SIDE) |
1 |
$347.12 |
|
|
(8)
|
97061292000
|
wiring harness sub-part wheel housing tyre pressure monitoring it is necessary to rework(PASSENGER SIDE) |
1 |
$347.12 |
|
|
9
|
97061292100
|
wiring harness sub-part wheel housing tank gauge fuel it is necessary to rework(DRIVER SIDE) |
1 |
$347.12 |
|
|
(9)
|
97061292200
|
wiring harness sub-part wheel housing it is necessary to rework see technical information gr. 2 nr. 19/13 kd. gr. 2070(PASSENGER SIDE, UP TO YEAR 10) |
1 |
$347.12 |
|
|
(9)
|
97061292201
|
wiring harness sub-part wheel housing it is necessary to rework(PASSENGER SIDE, FROM YEAR 11 UP) |
1 |
$347.12 |
|
|
-
|
97061295700
|
wiring harness sub-part lane change assistant antenna kessy rear |
1 |
$299.52 |
|
|
10
|
97061020103
|
cable guide wheel housing included speed nut(DRIVER SIDE) |
1 |
$90.23 |
|
|
(10)
|
97061020200
|
cable guide wheel housing included speed nut(PASSENGER SIDE) |
1 |
$90.23 |
|
|
11
|
99907335701
|
oval-head screw |
6 |
$1.55 |
|
|
12
|
99907608140
|
plastic nut t5 / 16 x 11,2 |
X |
$1.55 |
|
|
|
|
cable guide rear |
2 |
- |
|
|
|
|
seat |
4 |
- |
|
|
13
|
99970343340
|
stopper wheel housing rear tie-wrap for repair work |
2 |
$1.55 |
|
|
-
|
N90666101
|
tie-wrap 4,6 x 200 |
X |
- |
|
|
-
|
N90444901
|
tie-wrap 5 x 230 |
X |
$1.10 |
|
|
-
|
95561293100
|
cable clip 193 x 4 - 45 |
X |
$11.12 |
|
|
-
|
95561293200
|
cable holder flat |
X |
$10.86 |
|
|
-
|
95561293300
|
cable holder high |
X |
$10.86 |
|
|
-
|
97061216400
|
wiring harness sub-part shade |
1 |
$35.15 |
I862 |
