| POS |
Part Number |
Description |
Qty. Needed |
Price |
Model/Option Info |
|

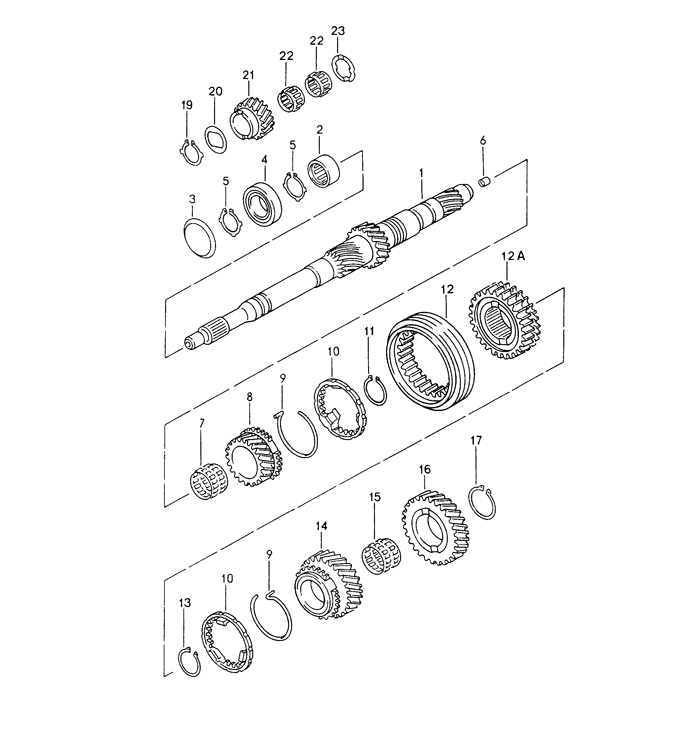

1
|
012311105AG
|
drive shaft |
1 |
$696.25 |
|
|
2
|
012311123D
|
needle sleeve 27 x 41 x 23 |
1 |
$26.61 |
|
|
3
|
012311443
|
cup spring 42 x 58 x 2 |
1 |
$4.66 |
|
|
4
|
012311445G
|
deep-groove ball bearing 25 x 58 x 16(UP TO YEAR 03) |
1 |
- |
|
|
(4)
|
012311445G
|
deep-groove ball bearing 25 x 58 x 16(FROM YEAR 04 UP) |
1 |
- |
|
|
5
|
N90294102
|
circlip 24,9 x 1,45 |
X |
$5.76 |
|
|
(5)
|
N90294114
|
circlip 24,9 x 1,54 |
X |
$5.76 |
|
|
(5)
|
N90294115
|
circlip 24,9 x 1,63 |
X |
$5.76 |
|
|
(5)
|
N90294116
|
circlip 24,9 x 1,72 |
X |
$5.76 |
|
|
(5)
|
N90294117
|
circlip 24,9 x 1,81 |
1 |
$5.76 |
|
|
(5)
|
N90294118
|
circlip 24,9 x 1,9 |
X |
$5.76 |
|
|
(5)
|
N90294119
|
circlip 24,9 x 1,99 |
X |
$5.76 |
|
|
(5)
|
N90294120
|
circlip 24,9 x 2,08 |
X |
$5.76 |
|
|
(5)
|
N90294111
|
circlip 24,9 x 2,17 |
X |
$5.76 |
|
|
6
|
012311111A
|
sleeve 13 x 14 x 10,8 |
1 |
$8.20 |
|
|
7
|
012311213J
|
needle cage 38 x 43 x 29,5 |
1 |
$23.67 |
|
|
8
|
012311285BJ
|
shifting gear |
1 |
$264.59 |
CWA/DVY/EFD |
|
|
|
3rd gear z = 40 : 28 |
|
- |
GDW |
|
(8)
|
012311131CB
|
shifting gear 3rd gear z = 40 : 28 |
1 |
$225.32 |
GFW |
|
9
|
012311312A
|
spring 3rd/4th gear g >> 10 05 8 |
2 |
- |
CWA |
|
(9)
|
012311312D
|
spring 3rd/4th gear g 11 05 8 >> |
2 |
$2.00 |
DVY/EFD/GDW |
|
(9)
|
01X311312A
|
retaining spring 3rd/4th gear |
2 |
$1.11 |
GFW |
|
10
|
012311295D
|
synchroniser ring 3rd/4th gear g >> 10 05 8 |
2 |
- |
CWA |
|
(10)
|
012311295F
|
synchroniser ring 3rd/4th gear g 11 05 8 >> |
2 |
$105.00 |
DVY/EFD/GDW |
|
(10)
|
01X311295J
|
synchroniser ring 3rd/4th gear |
2 |
$91.64 |
GFW |
|
11
|
N90294501
|
circlip 38 x 2 |
1 |
$6.27 |
|
|
12
|
012311315B
|
operating sleeve |
1 |
- |
CWA/DVY/EFD |
|
|
|
3rd/4th gear |
|
- |
GDW |
|
(12)
|
01X311315B
|
operating sleeve 3rd/4th gear |
1 |
$154.03 |
GFW |
|
12A
|
012311309B
|
synchronising hub |
1 |
$262.64 |
CWA/DVY/EFD |
|
|
|
3rd/4th gear |
|
- |
GDW |
|
(12A)
|
01X311309
|
synchronising hub 3rd/4th gear |
1 |
$165.97 |
GFW |
|
13
|
N90294401
|
circlip 37 x 1,9 |
X |
$6.27 |
|
|
(13)
|
N90294402
|
circlip 37 x 1,93 |
X |
$6.27 |
|
|
(13)
|
N90294403
|
circlip 37 x 1,96 |
X |
$8.35 |
|
|
(13)
|
N90294404
|
circlip 37 x 1,99 |
X |
$6.27 |
|
|
(13)
|
N90294405
|
circlip 37 x 2,02 |
X |
$8.29 |
|
|
(13)
|
N90294406
|
circlip 37 x 2,05 |
X |
$8.29 |
|
|
14
|
012311351AT
|
shifting gear 4th speed z = 35 : 34 |
1 |
$437.49 |
|
|
(14)
|
012311351AT
|
shifting gear 4th speed z = 35 : 34 |
1 |
$437.49 |
CWA |
|
(14)
|
012311351AT
|
shifting gear 4th speed z = 35 : 34 |
1 |
$437.49 |
DVY |
|
(14)
|
012311351BK
|
shifting gear 4th speed z = 36 : 33 |
1 |
$354.13 |
EFD/GDW |
|
(14)
|
012311149CQ
|
shifting gear 4th speed z = 36 : 33 |
1 |
$381.46 |
GFW |
|
15
|
012311115F
|
needle cage 37 x 42 x 29,8 |
1 |
$16.10 |
|
|
16
|
012311159DL
|
gear wheel 5th gear z = 30 : 38 |
1 |
$264.29 |
CWA/DVY |
|
(16)
|
012311159CH
|
gear wheel 5th gear z = 31 ; 37 |
1 |
$263.29 |
EFD/GDW/GFW |
|
17
|
N90294202
|
circlip 36 x 1,9 |
X |
$6.27 |
|
|
(17)
|
N90294203
|
circlip 36 x 1,93 |
X |
$6.27 |
|
|
(17)
|
N90294204
|
circlip 36 x 1,96 |
X |
$6.27 |
|
|
(17)
|
N90294205
|
circlip 36 x 1,99 |
X |
$6.27 |
|
|
(17)
|
N90294206
|
circlip 36 x 2,02 |
X |
$8.29 |
|
|
18
|
012311429M
|
sleeve |
1 |
$34.93 |
CWA/DVY/EFD |
|
|
|
23 x 37 x 28,3 |
|
- |
GDW |
|
(18)
|
012311429P
|
sleeve 23 x 39 x 28,2 |
1 |
$25.99 |
GFW |
|
19
|
N90295101
|
circlip 22 x 1,7 4th speed |
1 |
$3.81 |
|
|
20
|
012311518
|
supporting plate 3rd gear |
1 |
$22.42 |
|
|
21
|
012311531E
|
reverse idler gear |
1 |
$469.35 |
|
|
22
|
012311523G
|
needle cage 22 x 30 x 16 |
2 |
$20.19 |
|
|
23
|
012311517
|
thrust washer |
1 |
$18.78 |
|
