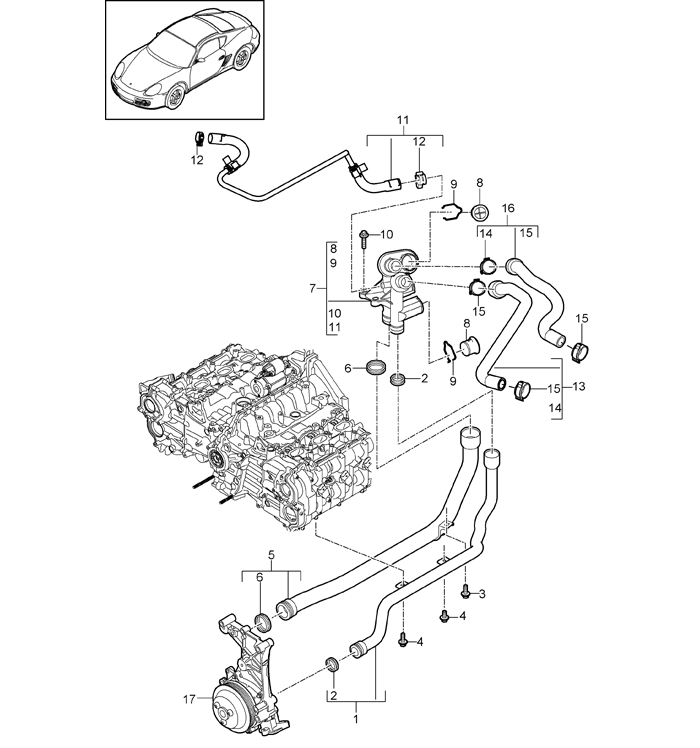

MA1.20/21 connection water tube

POS	Part Number	Description	Qty. Needed	Price	Model/Option Info
1	9A110662001	water tube intake	1	$82.84
2	99970751741	o-ring 22 x 3	4	$4.00
3	90038500901	torx screw m6 x 16	2	-
4	90038504101	torx screw m6 x 12	2	-
5	9A110662501	water tube return line	1	$97.90
6	99970758940	o-ring 31 x 3	4	$6.00
7	9A110601002	connection	1	-
(7)	9A110601002	connection	1	-
8	9A110654600	stopper	3	-
-	99970759040	o-ring 21,35 x 3,0	X	$12.09
9	99710680204	spring clip	3	-
10	90038507201	torx screw m6 x 25	2	-
11	9A110654931	vent line	1	$37.62
12	99951269901	hose clamp 18 x 12 with clip	2	$2.35
13	9A110661100	water hose intake(UP TO YEAR 11)	1	$34.76
(13)	9A110661100	water hose intake(FROM YEAR 12 UP)	1	$34.76
		m >> c 03456		-	MA1.20
		m >> c 03170		-	MA1.21
(13)	9A110661100	water hose intake	1	$34.76
		m c 03457 >>		-	MA1.20
		m c 03171 >>		-	MA1.21
14	99951266209	hose clamp 32 x 12 only together with 9a1.106.610.01 9a1.106.615.00	2	$2.45
(14)	99951266209	hose clamp 32 x 12 only together with 9a1.106.610.02 9a1.106.615.01 9a1.106.611.00	2	$2.45
15	99951265609	hose clamp 25 x 12 only together with 9a1.106.610.01 9a1.106.615.00	2	$1.82
(15)	99951265609	hose clamp 25 x 12 only together with 9a1.106.610.02 9a1.106.615.01 9a1.106.611.00	2	$1.82
16	9A110661501	water hose return line(UP TO YEAR 10)	1	$27.53
(16)	9A110661501	water hose return line(FROM YEAR 11 UP)	1	$27.53
17		water pump see group 1/05/00	1	-
