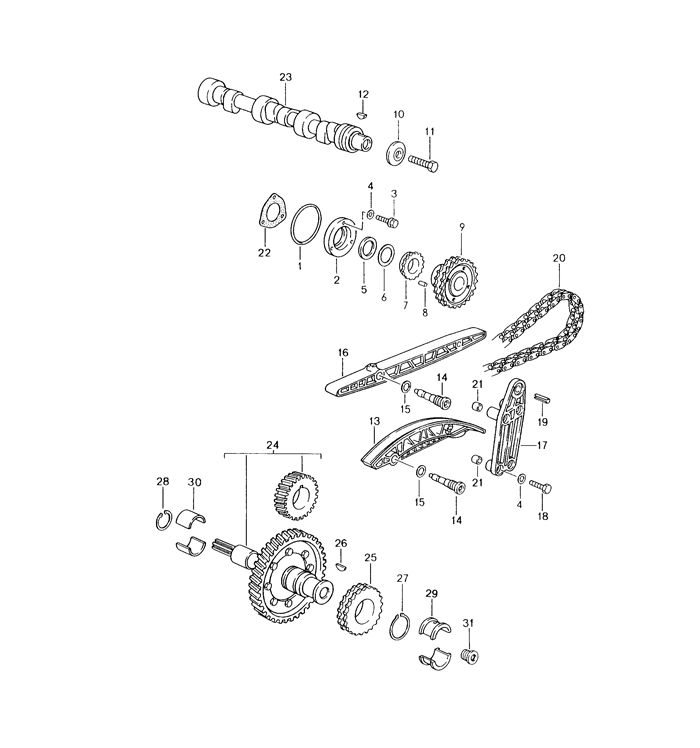

| POS |
Part Number |
Description |
Qty. Needed |
Price |
Model/Option Info |
|
1
|
99970731340
|
o-ring 67,2 x 5,77 |
1 |
$3.90 |
|
|
2
|
93010519600
|
cover |
1 |
$30.39 |
|
|
3
|
90007544202
|
combination screw m 6 x 25 |
3 |
- |
|
|
4
|
N0115247
|
washer a 6,4 |
3 |
$1.10 |
|
|
4
|
N01152427
|
washer a 6,4 |
3 |
$1.00 |
|
|
5
|
90110556200
|
thrust washer |
1 |
- |
|
|
6
|
90110556100
|
shim |
X |
$1.95 |
|
|
7
|
90110558301
|
flange |
1 |
$95.00 |
|
|
8
|
90024300100
|
straight pin 6 h 8 x 14 |
1 |
$3.00 |
|
|
9
|
99310554602
|
sprocket |
1 |
- |
|
|
10
|
99310516350
|
washer |
1 |
$9.00 |
|
|
11
|
90008207201
|
hexagon-head bolt m 12 x 1,5 x 50 |
1 |
$4.82 |
|
|
12
|
N0127082
|
woodruff key 4,0 x 5,0 |
1 |
$1.60 |
|
|
13
|
96410504302
|
tensioner blade |
1 |
$61.60 |
|
|
14
|
96410517103
|
bolt |
1 |
$39.34 |
|
|
15
|
90012313130
|
sealing ring a 16 x 20 |
2 |
$2.20 |
|
|
16
|
96410503000
|
guide rail |
1 |
$45.10 |
|
|
17
|
96410501802
|
supporting bow |
1 |
$434.86 |
|
|
18
|
90007547602
|
hexagon-head bolt m 6 x 38 |
4 |
$15.19 |
|
|
19
|
9990950450A
|
roll pin 10,5 x 43 |
1 |
$37.97 |
|
|
20
|
99310552900
|
timing chain closed |
1 |
$88.00 |
|
|
21
|
99909504800
|
dowel sleeve 8 x 8 |
4 |
$4.77 |
|
|
22
|
93010519705
|
gasket |
1 |
$1.45 |
|
|
23
|
99310524607
|
camshaft |
1 |
$737.16 |
M64.05YEARDESCRIPTION1994-19953.6L 6-CYL (911 CARRERA)1995-19953.6L 6-CYL (911 CARRERA 4)1995-19953.7L 6-CYL (911 CARRERA 4)M64.06YEARDESCRIPTION1994-19943.6L 6-CYL (911 CARRERA TIPTRONIC)1995-19953.7L 6-CYL (911 CARRERA TIPTRONIC) |
|
|
|
|
|
- |
M64.07YEARDESCRIPTION1994-19953.6L 6-CYL (911 CARRERA (USA)(CANADA))1995-19953.6L 6-CYL (911 CARRERA 4 (USA)(CANADA))1995-19953.7L 6-CYL (911 CARRERA 4 (USA)(CANADA))M64.08YEARDESCRIPTION1994-19943.3L 6-CYL (911 CARRERA TIPTRONIC)1994-19943.6L 6-CYL (911 CARRERA TIP (USA/CDN))1995-19953.7L 6-CYL (911 CARRERA TIP (USA/CDN))1995-19953.7L 6-CYL (911 CARRERA TIPTRONIC) |
|
23
|
99310524609
|
camshaft |
1 |
$812.33 |
M64.21YEARDESCRIPTION1996-19983.7L -CYL (911 CARRERA)1996-19983.6L 6-CYL (911 CARRERA)1997-19973.6L 6-CYL (911 CARRERA 4)M64.22YEARDESCRIPTION1996-19983.7L -CYL (911 CARRERA TIPTRONIC) |
|
|
|
|
|
- |
M64.23YEARDESCRIPTION1996-19983.6L -CYL (911 CARRERA (USA)(CANADA))M64.24YEARDESCRIPTION1996-19983.7L -CYL (911 CARRERA TIP (USA/CDN)) |
|
23
|
99310524651
|
camshaft |
1 |
- |
M64.60YEARDESCRIPTION1995-19983.6L -CYL (911 TURBO) |
|
24
|
99310591156
|
intermediate shaft with timing gear number 0 |
1 |
$1,516.88 |
|
|
24
|
99310591157
|
intermediate shaft with timing gear number 1 with timing gear number 1 |
1 |
$1,652.78 |
|
|
24
|
99310591157
|
intermediate shaft with timing gear number 1 |
1 |
$1,652.78 |
|
|
25
|
90110512504
|
sprocket |
2 |
$66.00 |
|
|
26
|
90011801000
|
woodruff key 6,0 x 7,5 |
2 |
$1.00 |
|
|
27
|
90004102501
|
circlip 36 x 1,75 |
2 |
$4.14 |
|
|
28
|
90004102601
|
circlip 13 x 1 |
1 |
$1.00 |
|
|
29
|
99610113780
|
bearing |
2 |
$25.30 |
|
|
29
|
99310113701
|
bearing |
2 |
$12.10 |
|
|
29
|
99610113780
|
bearing |
2 |
$25.30 |
|
|
29
|
99310113701
|
bearing |
2 |
$12.10 |
|
|
30
|
99610143570
|
bearing shell |
2 |
$20.28 |
|
|
31
|
99906403830
|
screw plug |
1 |
$27.41 |
M64.21YEARDESCRIPTION1996-19983.7L -CYL (911 CARRERA)1996-19983.6L 6-CYL (911 CARRERA)1997-19973.6L 6-CYL (911 CARRERA 4)M64.22YEARDESCRIPTION1996-19983.7L -CYL (911 CARRERA TIPTRONIC) |
|
|
|
18 x 1,5 |
|
- |
M64.23YEARDESCRIPTION1996-19983.6L -CYL (911 CARRERA (USA)(CANADA))M64.24YEARDESCRIPTION1996-19983.7L -CYL (911 CARRERA TIP (USA/CDN)) |
|
31
|
99310527552
|
intermediate piece |
1 |
- |
M64.60YEARDESCRIPTION1995-19983.6L -CYL (911 TURBO) |
|
|
|
information available |
|
- |
M64.60YEARDESCRIPTION1995-19983.6L -CYL (911 TURBO) |
