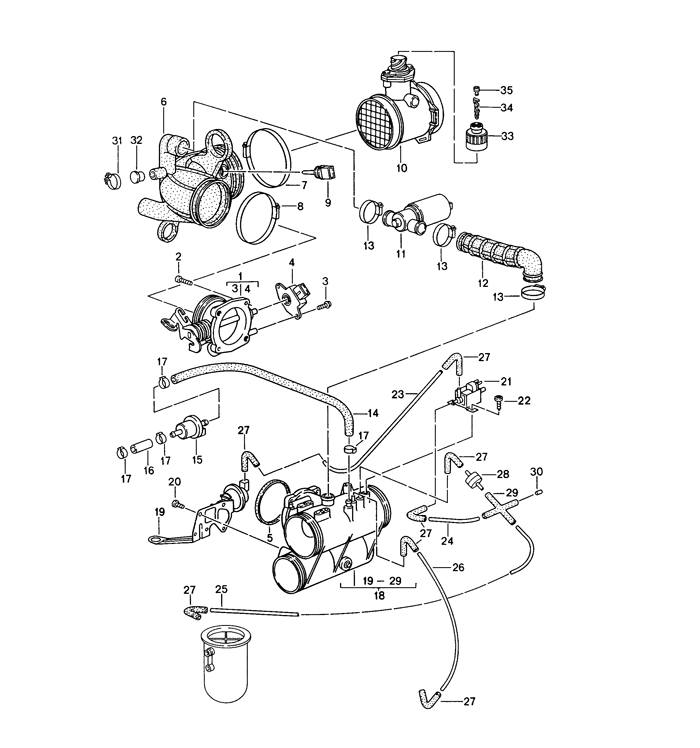

M64.05/06, M64.07/08 l-jetronic flap connection

POS Part Number Description Qty. Needed Price Model/Option Info
1 99311012811 throttle body 1 $913.30
2 90006711102 pan-head screw m 5 x 18 4 -
3 90014612002 screw m 4 x 10 z1 2 $1.12
4 94460611601 throttle-valve switch 1 $88.55
5 96411022700 sealing ring 1 $15.00
6 99311036704 air box 1 $142.24
7 99951235002 hose clamp 80 - 100 1 $2.00
8 99951235102 hose clamp 70 - 90/9 1 $4.95
9 99360611300 temperature sensor 1 $24.75
10 99360612301 mass air flow meter 1 $207.90
11 99360616000 idle-speed adjuster 1 $932.12
12 99311058902 hose 1 -
13 99951255101 hose clamp 25 - 40/9 3 $2.50
14 99311054300 hose 1 -
15 99360524000 bleeder valve 1 $189.54
- 4320500 hose * $42.81
16 hose 8,0 x 3,0 -
17 99951249800 clamp 13,1 - 15,3 4 $11.53
18 99311002703 connecting piece 1 $1,084.50
19 99311001201 vacuum unit 1 $130.71
20 90014600303 oval-head screw m 5 x 10 5 $1.10
21 91161812301 change-over valve 1 $174.34
22 99991909802 oval-head screw m 5,0 x 12 2 $1.24
- 4320501 pipe 4,0 x 1,0 * $11.53
23 270 mm 1 -
24 90 mm 1 -
25 220 mm 1 -
26 580 mm 1 -
27 92857471705 protective tube 7 -
28 96411095002 check valve 1 $17.00
29 92857372905 distributing piece 1 $6.90
30 90031204201 bolt a 4,0 x 10 1 $10.71
31 99951255400 hose clamp lc 12-22/9 1 $1.82 M339YEARDESCRIPTION1994-1998ALL-WHEEL DRIVE
32 99970338540 stopper 13,2 1 $4.97 M339YEARDESCRIPTION1994-1998ALL-WHEEL DRIVE
33 99965277440 connector housing 1 $38.24
34 99965277522 contact bush 1 $3.30
35 99965277740 rubber seal 1 $1.24
