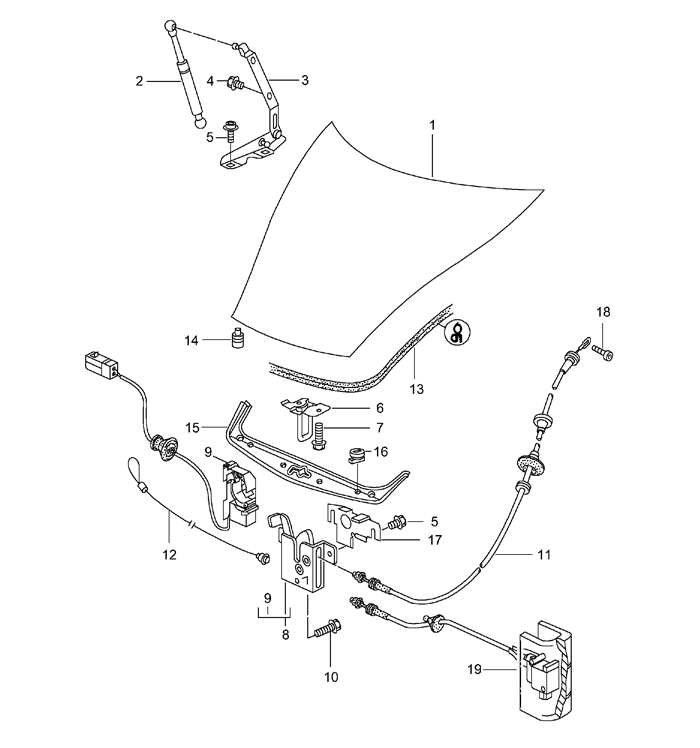

lid front

POS Part Number Description Qty. Needed Price Model/Option Info
1 lid 1 -
99651101102GRV prime coated use also: $879.74
- 00004320438 sealing material 1 -
2 99651155101 gas-pressure spring 2 $14.00
3 99651115101 hinge(DRIVER SIDE) 1 $158.40
(3) 99651115201 hinge(PASSENGER SIDE) 1 $158.40
4 90037803601 hexagon-head bolt m 6 x 12 4 $1.10
5 90007546601 combination screw m 6 x 16 6 $1.55
6 99751105100 lock upper part 1 $24.00
7 90037817301 hexagon-head bolt m 6 x 20 2 $1.55
8 99651105302 lock lower part 1 -
9 99661320600 microswitch 1 $160.55
10 90007534702 screw m 6 x 28 1 $1.76
11 99651101701 traction(LEFTHAND DRIVE, UP TO YEAR 00) 1 $117.15
12 99651152100 emergency operation 1 $27.32
13 99651161100 gasket 1 $116.00
14 99970314041 buffer 2 $2.70
15 trim cover(UP TO YEAR 01) 1 -
9965048110001C satin black $81.00
15 trim cover(FROM YEAR 02 UP) 1 -
9965048110201C satin black $80.00
16 9995900364001C catch 4 $3.61
9995900364001C satin black $3.61
17 99651165300 cover 1 $16.12
18 90011912109 pan-head screw m 4 x 14 1 $1.28
19 99651112700 actuator(FROM YEAR 01 UP) 1 $80.26
- 99762411900 actuator emergency operation 1 $131.97
- 99651148900 bracket actuator 1 $19.47
- 99651108500 cable emergency operation 1 $12.06
