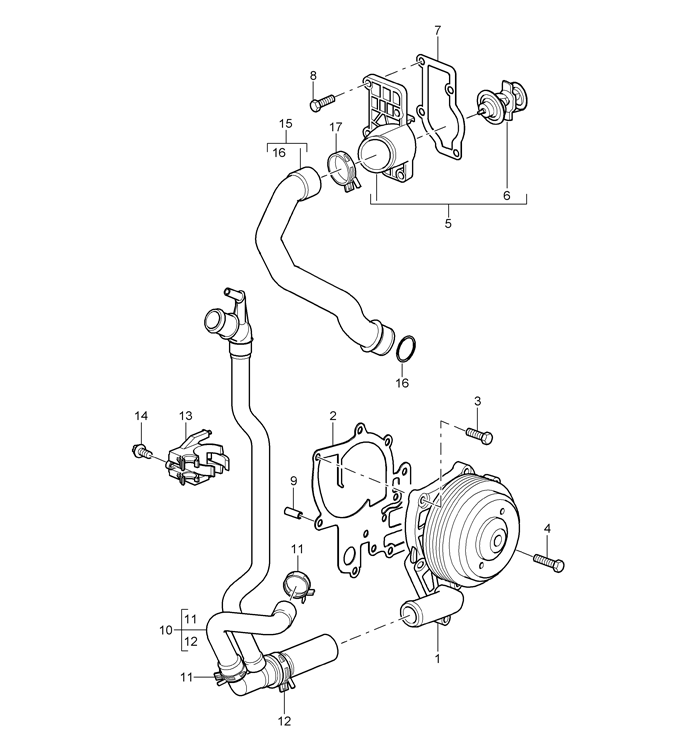

M97.01, M96.05 water pump thermostat housing

POS	Part Number	Description	Qty. Needed	Price	Model/Option Info
1	99710601105	water pump	1	-
(1)	99710601105	water pump	1	-
2	99610634054	gasket	1	$4.35
3	90037801301	hexagon-head bolt m 6 x 25	5	$1.10
4	90037817701	hexagon-head bolt m 6 x 30	2	$3.09
5	99610601359	thermostat with thermostat insert	1	$65.94
6	99610612553	thermostat insert	1	-
7	99610632650	gasket	1	$2.55
8	90038501901	torx screw m 6 x 20	4	-
9	99610610350	dowel sleeve 8,2 x 7	2	$3.41
10	99710685001	water hose	1	$137.00
11	99951266209	hose clamp 32 x 12	1	$2.45
12	99951249900	hose clamp 40 x 12	1	$1.82
13	99710655000	support	1	$15.75
14	90038505001	hexagon socket head bolt m 6 x 16	1	$1.50
15	99710683204	water hose return line(FOR YEAR 2005 & up)	1	$65.48
(15)	99710683204	water hose return line	1	$65.48	IX51YEARDESCRIPTION2005-2008POWERKIT 250 KW
(15)	99710683204	water hose return line(FROM YEAR 06 UP)	1	$65.48
16	99610680103	o-ring	1	$4.00
17	99951266909	hose clamp 53 x 12	1	$7.59
