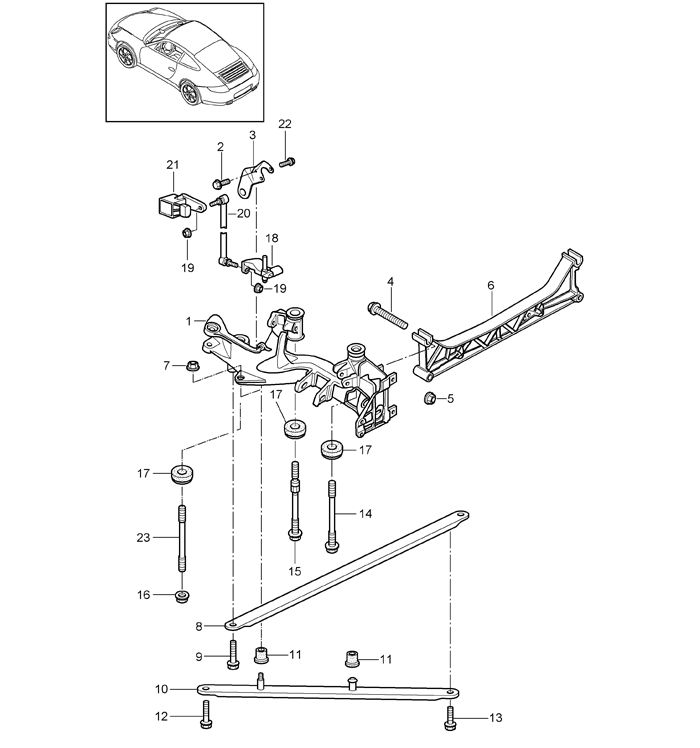

rear axle side section bracket

POS	Part Number	Description	Qty. Needed	Price	Model/Option Info
1	99733105105	side section(DRIVER SIDE)	1	$1,130.65
(1)	99733105205	side section(PASSENGER SIDE)	1	$1,130.65
2	90006711704	pan-head screw m 6 x 16	2	$3.84
3	99735550502	support for brake hose(DRIVER SIDE)	1	$14.25
(3)	99735550602	support for brake hose(PASSENGER SIDE)	1	$14.25
4	90037813901	hexagon-head bolt m 12 x1,5 x 80	4	$15.26
5	99908444501	lock nut m 12 x 1,5	4	$3.00
6	99733126122	cross member	1	$343.85
7	99907605301	hexagon nut m 10	2	-
8	99733117120	transverse strut front	1	$86.69
-	99959162901	captive nut underbody protection	X	$1.47
9	99907202001	hexagon-head bolt m 10 x 40	2	$3.87
10	99733108120	strut	2	$196.65
-	99959162901	captive nut underbody protection	X	$1.47
11	99633138500	rubber mounting	6	$5.79
12	99907344301	combination screw 12 x 1,5 x 40	2	$6.22
13	90037807201	hexagon-head bolt m 12 x 30	2	$4.03
14	90017801001	hexagon-head bolt m 12 x 130	2	$14.85
15	90017801001	hexagon-head bolt m 12 x 130	2	$14.85
16	99908444501	lock nut m 12 x 1,5	2	$3.00
17	99733129100	washer	6	$17.81
18	99634137103	support	1	$4.72	I601/603
19	90038001501	hexagon nut vm 6	2	-	I601/603
20	99733137503	strut	1	$50.70	I601/603
21	99763112100	sensor	1	$67.61	I601/603
22	90014600303	oval-head screw	2	$1.10	I601/603
23	99906110301	stud m 12 x 1,5 x 107,5	2	$66.00
