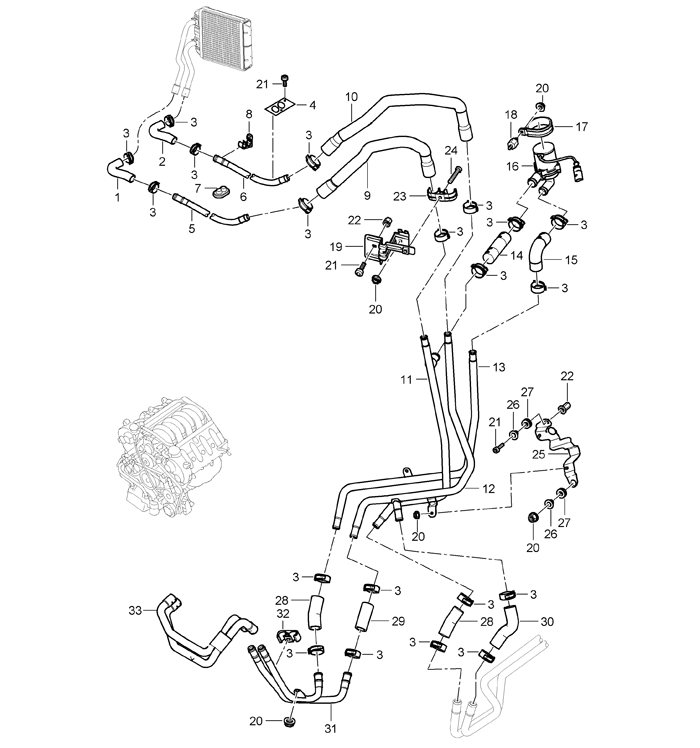

ID5V/D5Z/9AH heating with auxiliary air conditioner feed line return line

POS	Part Number	Description	Qty. Needed	Price
1	95557258100	heater hose(LEFTHAND DRIVE)	1	$17.16
2	95557298300	heater hose(LEFTHAND DRIVE)	1	$24.17
3	99951265809	hose clamp b 27 x 12	X	$3.84
4	95557275800	sealing strip	1	$7.78
5	95557268200	hot air duct(LEFTHAND DRIVE)	1	-
6	95557268300	hot air duct(LEFTHAND DRIVE)	1	-
7	95557278100	grommet	1	$15.99
9	95557237400	heater hose	1	$22.62
10	95557299400	heater hose	1	$21.74
11	95557285800	hot air duct	1	-
12	95557292605	hot air duct	1	-
13	95557292507	hot air duct	1	-
14	95557237300	heater hose	1	$9.00
15	95557279105	heater hose	1	$10.14
16	95557215006	water pump	1	$375.66
17	N90942301	clip	1	$10.43
18	95557256700	rubber buffer	1	$22.21
19	95557254501	support water pump	1	$18.94
20	N0150829	hexagon nut m6	X	$1.10
21	N10451404	lens-head screw m6 x 16	X	$1.10
22	N90263104	blind rivet nut m6	X	$1.53
23	95557205501	clip	X	$7.51
24	N10620901	pan-head screw m6 x 30	X	$1.62
25	95557295001	support hot air duct	1	$18.94
26	95557212100	bush	2	$2.43
27	95557209500	rubber sleeve	2	$1.73
28	95557258900	heater hose	2	$15.37
29	95557278400	heater hose	1	$18.62
30	95557279300	heater hose	1	$15.37
31	95557269801	heating tube	1	$74.69
32	95557205503	clip	1	$7.51
33		water hose engine see illustrations 1/05/30	1	-
