813-65 – Automobile Atlanta

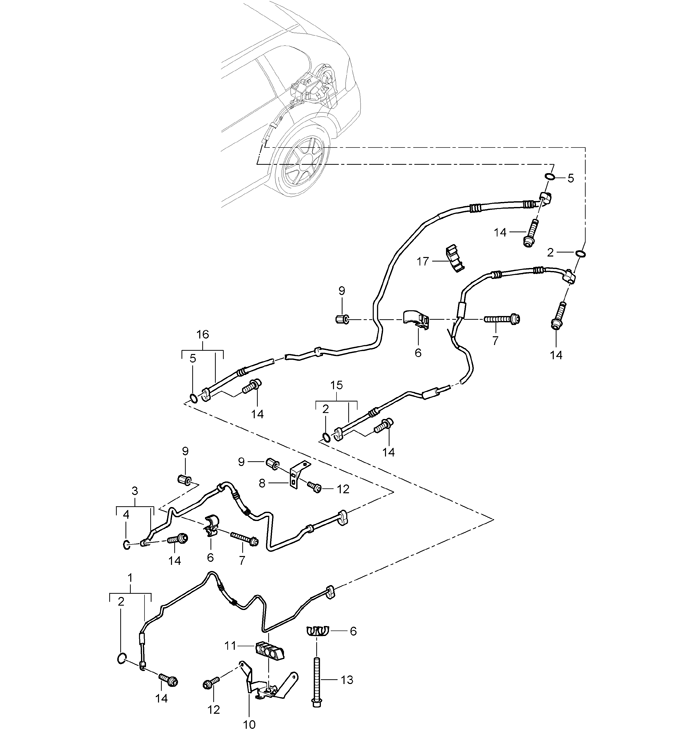

I9AH refrigerant circuit auxiliary air conditioner rear

POS	Part Number	Description	Qty. Needed	Price	Model/Option Info
1	95557372201	pressure line	1	-
2	95557374900	o-ring	X	$2.82
3	95557372902	intake pipe	1	-
4	95557374901	o-ring	X	$1.00
5	95557374902	o-ring	X	$4.75
6	95557218000	dual clip	X	$8.91
7	N10508402	hexagon socket head bolt m6 x 35	4	$1.35
8	95557249500	support	2	$18.54
9	N90263104	blind rivet nut m6	X	$1.53
10	95557360500	support	1	$39.49
11	95557275705	spacer	1	$13.43
12	N10451404	lens-head screw m6 x 16	2	$1.10
13	N10467702	hexagon socket head bolt m6 x 70	2	$2.52
14	N10414402	pan-head screw m8 x 28	2	$2.57
15	95557372500	pressure line	1	-
16	95557372700	intake pipe	1	-
17	95557376300	spacer	1	$15.61
