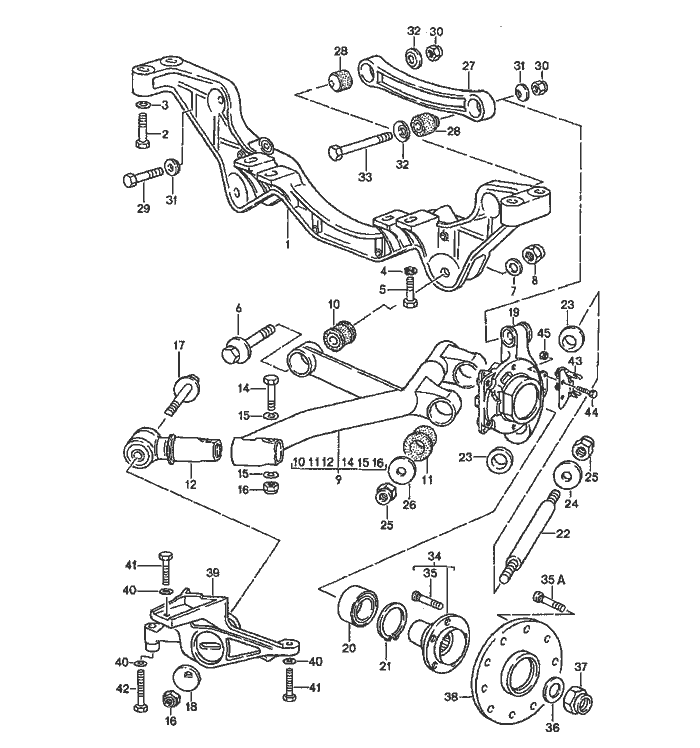

Porsche 928 rear axle

PosPart NumberDescription
Qty. Needed
Model/Option Info
192833113117 rear axle cross member
1
M249
YEARDESCRIPTION
1978-1995AUTOMATIC TRANSMISSION

(1)92833113118 rear axle cross member
1
M481
YEARDESCRIPTION
1983-1995MANUAL TRANSMISSION

2N0104736 hexagon-head bolt m 10 x 75
4
390022301102 washer b 10,5
4
390022301101 washer b 10,5
4
499902508602 square washer 12,1 x 24
2
4A99902508502 washer 12,5 x 30 x 1
X
5N0101414 hexagon-head bolt m 12 x 1,5 x 45
2
692833107504 eccentric screw
2
792833158100 washer
2
890091009402 lock nut
2
992833104306 control arm
(DRIVER SIDE)
1
(9)92833104406 control arm
(PASSENGER SIDE)
1
1092833158810 rubber mounting
2
1192833158815 rubber mounting
4
1292833108500 rocker bar
2
1490008214001 hexagon-head bolt m 12 x 1,5 x 75
2
1590002801403 spring washer
4
16N0221414 lock nut
4
1792833165905 eccentric screw
2
1892833152312 eccentric washer
2
(19)92833121909 wheel carrier
(DRIVER SIDE, UP TO YEAR 88)
1
(19)92833121909 bracket
(DRIVER SIDE, FROM YEAR 89 UP)
1
M482
YEARDESCRIPTION
1987-1991TIRE PRESSURE MONITORING

1992833122009 wheel carrier
(PASSENGER SIDE, UP TO YEAR 88)
1
(19)92833122009 bracket
(PASSENGER SIDE, FROM YEAR 89 UP)
1
M482
YEARDESCRIPTION
1987-1991TIRE PRESSURE MONITORING

2092833158300 angular-contact bearing
2
(20)99905305000 angular-contact bearing
2
(20)99905305502 angular-contact bearing
2
2190004203002 circlip
2
2292833164101 bearing pin
2
2392833165506 cone washer
4
2492833164702 washer
2
2590091009402 lock nut
4
2692833164700 washer
4
2792833110102 control arm
2
2892833108904 link bearing
4
29N0104707 hexagon-head bolt m 10 x 70
2
3090091003101 lock nut
4
3292833157501 cone washer
4
3192833164902 cone washer
2
33N0104823 hexagon-head bolt m 10 x 105
2
3492833106507 wheel hub
2
3592834167102 wheel bolt
10
(35)92834167102 wheel bolt oversize
10
35A90434167100 wheel bolt
10
M393
YEARDESCRIPTION
1987-1991CLUB SPORT WHEEL 16-INCH

3692833159102 washer
2
3790091009302 lock nut
2
3895133161102 spacer ring 17 mm
2
M393
YEARDESCRIPTION
1987-1991CLUB SPORT WHEEL 16-INCH

3992833111100 link bearing
(DRIVER SIDE)
1
(39)92833111200 link bearing
(PASSENGER SIDE)
1
4090022301102 washer
10
4090022301101 washer
10
41N0104505 hexagon-head bolt m 10 x 50
4
4190007437302 hexagon-head bolt m 10 x 50
4
42N0104736 hexagon-head bolt m 10 x 75
6
4392833108101 support
(FROM YEAR 90 UP)
2
M482
YEARDESCRIPTION
1987-1991TIRE PRESSURE MONITORING

4490007501402 hexagon-head bolt m 6 x 18
(FROM YEAR 90 UP)
4
M482
YEARDESCRIPTION
1987-1991TIRE PRESSURE MONITORING

4590091001202 lock nut m 6
(FROM YEAR 90 UP)
4
M482
YEARDESCRIPTION
1987-1991TIRE PRESSURE MONITORING

4590091004709 lock nut m 6
(FROM YEAR 90 UP)
4
M482
YEARDESCRIPTION
1987-1991TIRE PRESSURE MONITORING
