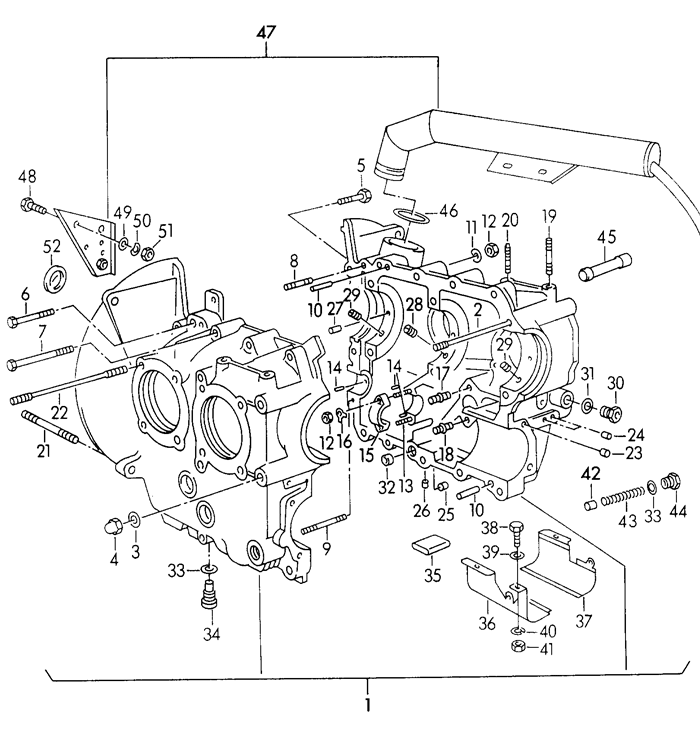

CARRERA, 1600 GS/GT crankcase

POS Part Number Description Qty. Needed Price Model/Option Info
- 58710199900 crankcase picture nr.1 with nr.14+16,21+22,25-29 1 - 692/0
- 58710199900 crankcase picture nr.1 with nr.14+16,21+22,25-27 1 - 692/1/2/3
(1) 58710199900 crankcase complete picture nr.1-45 1 - 692/0
(1) 58710199900 crankcase complete picture nr.1-45 1 - 692/1/2/3
2 53901119 stud 6 $10.77
3 90012306630 sealing ring a 10 x 16 copper 6 $1.69
4 99907000402 cap nut 6 -
5 90007413002 hexagon-head bolt m 8 x 40 2 $1.21
6 N01036019 hexagon-head bolt m 8 x 60 6 $2.84
7 N0103883 hexagon-head bolt m 8 x 90 1 $7.50
8 90006103000 stud m 8 x 35 2 -
- 90006104101 stud m 8 x 50 for housing cover 1 $1.10
9 90006103500 stud m 8 x 65 1 -
10 54701140 straight pin 2 $1.10
11 spring washer b 8 12 -
12 50208310 hexagon nut 12 $2.59
13 stud m 8 x 22 2 -
14 90001203300 straight pin 3 h 8 x 10 3 -
15 547011041 housing 1 -
- 90001203200 straight pin 3 h 8 x 8 1 -
16 99903900100 tab washer 2 $3.75
17 stud m 8 x 15 2 -
18 90006102400 stud m 8 x 18 2 -
19 90006103100 stud m 8 x 40 2 -
- stud m 8 x 45 1 - 692/1/2/3
20 54701133 stud 2 -
21 54701137 stud 2 -
22 54701128 stud 16 -
23 54701118 threaded bush 4 -
- stud m 8 x 25 for housing distributor driving mechanism 4 -
- 90001203400 straight pin 6 h 8 x 10 for oil pump 1 -
24 53901108 stopper X -
- 53901107 stopper 1 -
25 99950105130 stopper 4 -
26 54701116 stopper 1 - 692/0
- 69210140501 stopper 1 - 692/1/2/3
27 54701130 straight pin X -
28 54701131 nozzle i 1 -
29 54701132 nozzle ii 2 -
30 90006500202 screw plug m 14 x 1,5 1 -
31 N0138492 sealing ring a 14 x 18 copper 1 $0.50
32 91110112300 sealing ring 1 $3.93
33 90012310630 sealing ring a 18 x 24 x 1,5 aluminium 3 $1.00
34 54707112 drain plug 1 $20.30
35 69210118000 oil strainer 1 -
- 53901129 oil drain lid for crankcase 1 -
- 53901130 gasket for oil drain lid and oil strainer 2 $3.58
- stud m 6 x 12 for oil drain lid 4 -
36 54707143 strainer(DRIVER SIDE) 1 -
37 54707142 strainer(PASSENGER SIDE) 1 -
38 hexagon-head bolt m 6 x 15 3 -
39 99902510802 washer 6,4 3 $1.10
40 90002701302 lock ring b 6 3 -
41 N02214812 hexagon nut m 6 3 $1.74
41 9000760100B hexagon nut m 6 3 $1.06
42 54707115 piston relief valve 2 -
43 54707113 spring relief valve $ 11 x 65 2 - 692/0
- 99952101600 spring relief valve $ 12,2 x 66 1 $5.30 692/1/2/3
- 99952101200 spring relief valve $ 12,5 x 61,5 1 $1.18 692/1/2/3
44 54707114 screw plug relief valve 2 -
45 69210112400 bush 1 -
46 54701138 o-ring 1 -
47 54701135 bleeder 1 - 692/0
- 69210707100 bleeder 1 - 692/1/2
- filler tube 1 - 692/1/2/3
- 69210707901 bleeder pot 1 - 692/0/1/2
- retaining bracket for bleeder 1 - 692/0/1/2
- 54710116100 cap for bleeder bore 1 - 692/2/3
- stud bm 6 x 55 for cap 1 - 692/2/3
- 90008500202 cap nut m 6 for cap 1 - 692/2/3
- N0138042 sealing ring a 6 x 10 for cap nut 1 $1.00 692/2/3
- 54710707700 breather pipe 1 - 692/2/3
- N0122224 lock ring a 5 for breather pipe 3 $1.00 692/2/3
- hexagon nut m 5 for breather pipe 3 - 692/2/3
48 99907200501 hexagon-head bolt m 6 x 12 1 $1.06
49 N0115247 washer 6,4 4 $1.10
49 N01152427 washer 6,4 4 $1.00
50 N0122265 spring washer b 6 2 $1.00
51 N02214812 hexagon nut m 6 2 $1.74
51 9000760100B hexagon nut m 6 2 $1.06
52 54701107 cap 1 -
- 90004000102 cover plate for bleeding 1 -
